1/2

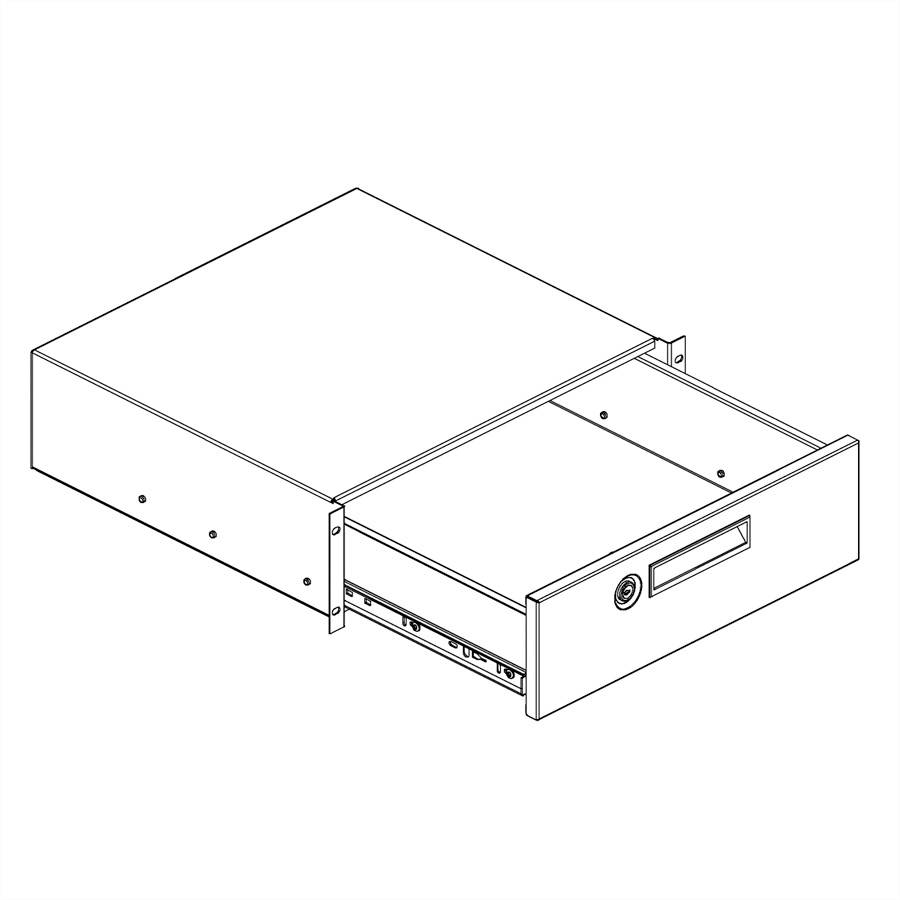

Stroke drawing/circuit diagram
Conteg 26205110 19 inch Inset 3 U Black
EAN:
Part number:
Item no:
Technical specifications
- Product type
Inset
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
3 U
- Load capacity (max.)
10 kg
- Dim
(W x H x D) 482.5 x 132.5 x 430 mm
- Material
Steel plate
- Content
1 pc(s)
- Factory colour
Black
- Width
482.5 mm
- Height
132.5 mm
- Depth
430 mm
- Rack size
483 mm (19")
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131159 Conteg 26205110 19 inch Inset 3 U Black
Description
Lockable drawer for installation in a 19" cabinet
Made from 1.25mm and 1.5mm thick steel plate
3 HU high
Pull-out up to 280mm
Max. 10 kg additional load
Dimensions (H x W x D) 132.5 x 482.6 x 430 mm
Colour, black
This text is machine translated.
Made from 1.25mm and 1.5mm thick steel plate
3 HU high
Pull-out up to 280mm
Max. 10 kg additional load
Dimensions (H x W x D) 132.5 x 482.6 x 430 mm
Colour, black
This text is machine translated.
