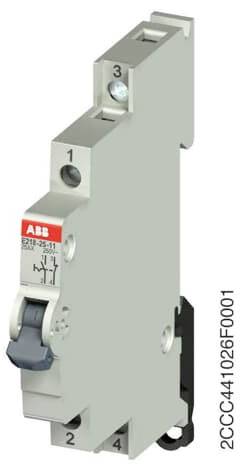

Control switch Grey 1-pin 25 A 1 breaker, 1 maker ABB 2CCA703051R0001
Product type
Control switch
Number of pins
1
Nominal current - rounded value
25 A
Contact type
1 breaker
1 maker
Operating voltage
24
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Color of the dome: Gray
- Lamp base: -
- Voltage type: AC
- Max. Lamp power: -
- Number of contacts as changer: 0
- Width in division units: 0.5
- Installation depth 68
- Rated current 25
- Rated breaking capacity: -
- Min Rated voltage 24
- Forced separation (according to DIN VDE 0113): Yes
- Protection class (IP): IP20
- Number of poles: 1
- Light bulb: -
- With signal lamp: No.
- Short circuit resistance (ICW): 3
- Switching function: Control switch
- Number of contacts as NC contacts: 1
- Number of contacts as NO contact: 1
- Rated voltage 250
- Product type
Control switch
- Contact type
1 breaker
1 maker
- Operating voltage
24
- Factory colour
Grey
- Number of pins
1
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Depth
68 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2331516 Control switch Grey 1-pin 25 A 1 breaker, 1 maker ABB 2CCA703051R0001
User & Safety Instructions
User & Safety Instructions 2331516 Control switch Grey 1-pin 25 A 1 breaker, 1 maker ABB 2CCA703051R0001
Description
These devices can be used in the distributor for control functions. The new control switches are characterized by simple handling, simple installation and optimum functionality. For rated current 16/25 A. Depending on the contact assignment in 9mm or 18mm width.
