Cooler Master ELITE GOLD 1200FM PC power supply unit 1200 W ATX 80 PLUS Gold
Product type
PC power supply unit
PSU output power
1200 W
Modular
Yes
Certification
80 PLUS Gold
Form factor
ATX
EAN:
Part number:
Item no:
Highlights & Details
Cooler Master ELITE GOLD 1200FM PC power supply unit
- Power supply unit output 1200 W

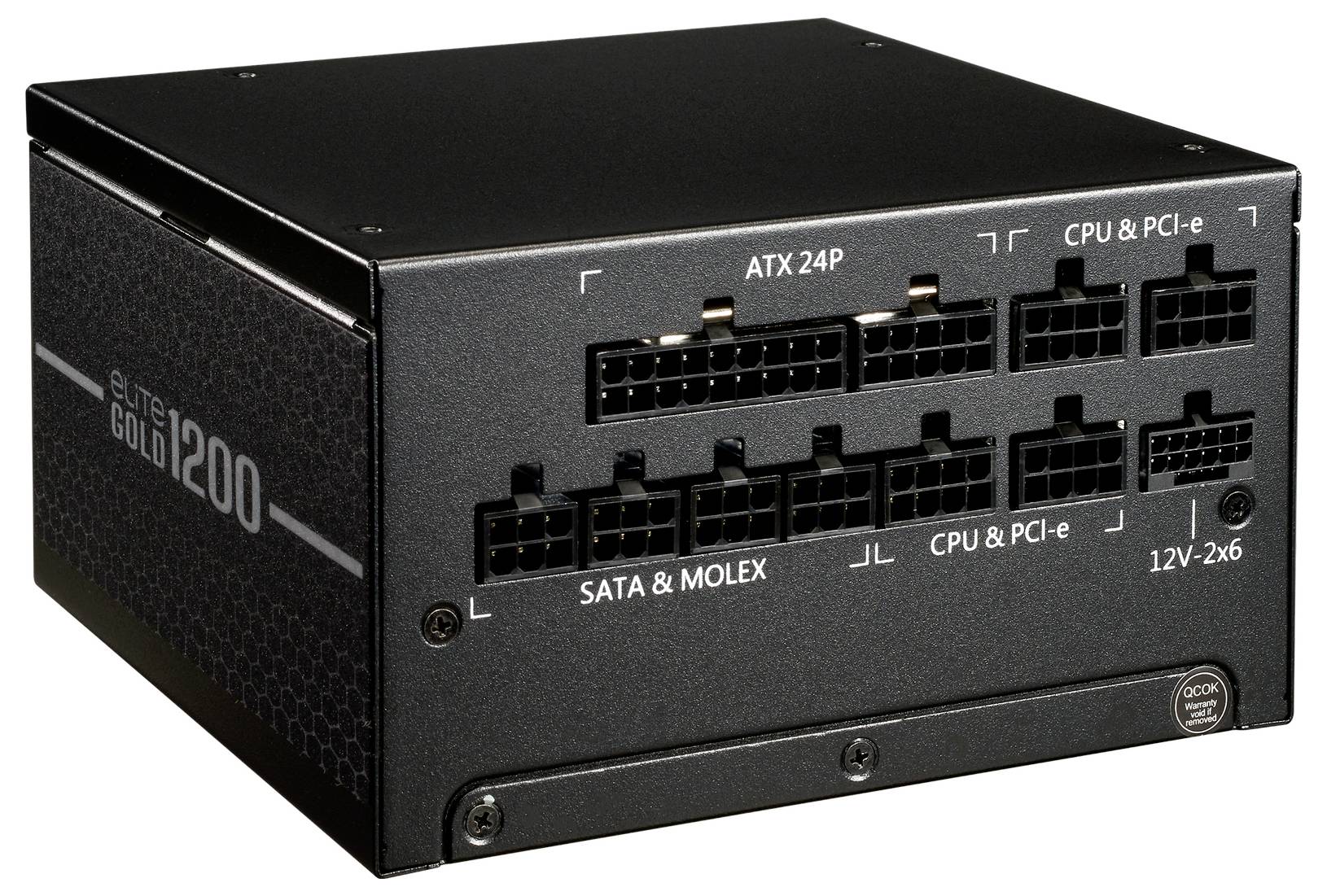

- PCI-Express (6+2-Pin) 6x
- Cable management Yes
- 80 PLUS Gold
Technical specifications
- 80 Plus Certification 80 PLUS Gold

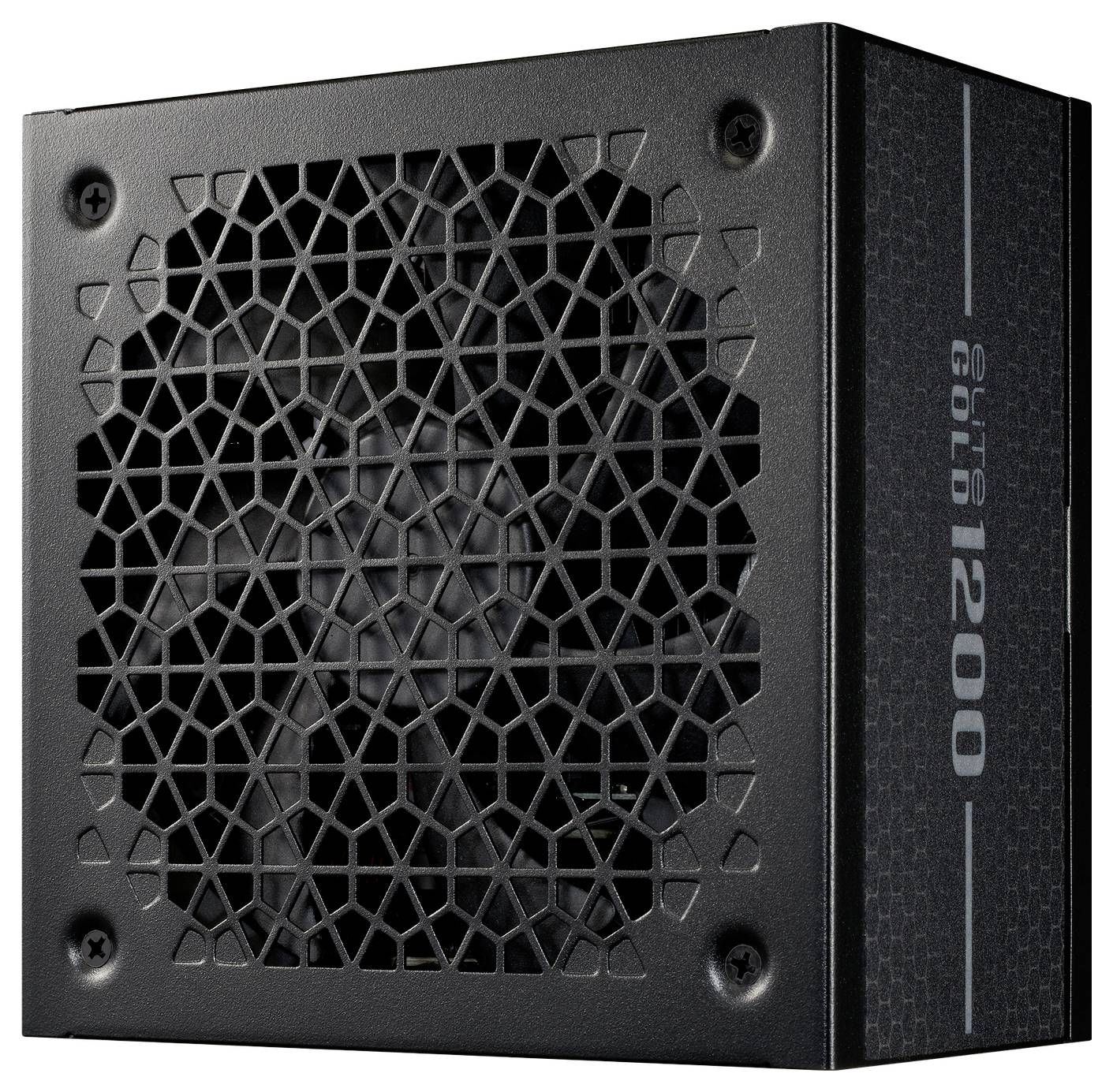

- Fan diameter 13.5 cm
- Number of fans: 1 fans
- Product type
PC power supply unit
- PSU output power
1200 W
- Modular
Yes
- Certification
80 PLUS Gold
- Form factor
ATX
- Factory colour
Black
- ATX version
ATX 3.1
- Dim
(W x H x D) 150 x 86 x 150 mm
- Depth
150 mm
- Height
86 mm
- Width
150 mm

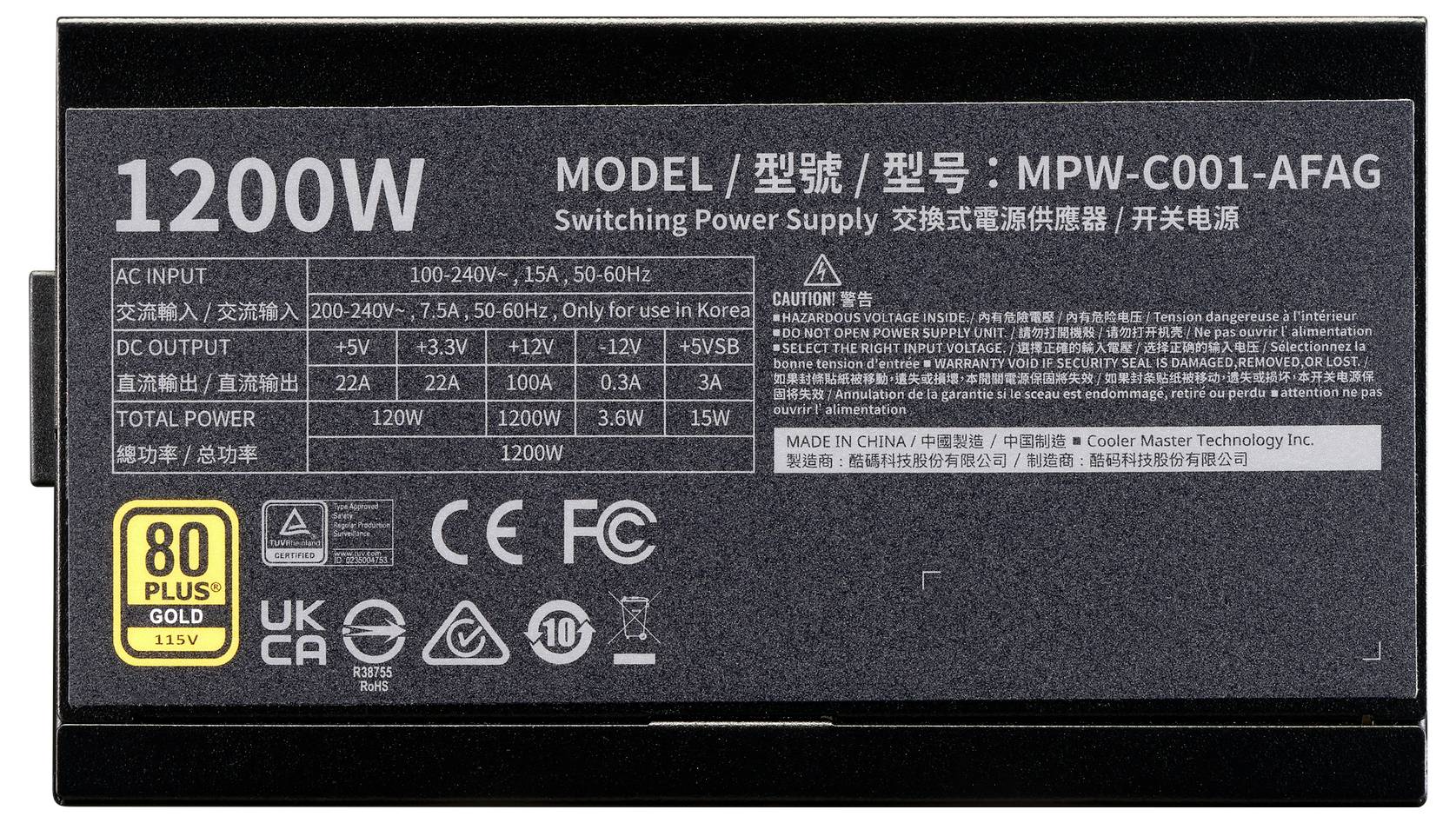

- -12V / DC
3.6 A
- +12 V/DC (1)
100 A
- 5 V DC
22 A
- +5V / DC SB
3 A
- 4-pin Molex
3
- 6-pin PCIe
6
- 5-pin SATA
9
- Power rating
751 W -
- Cooling
Active
- 3.3V DC
22 A
- Power supply (details)
100 - 240 V
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Motherboard power cable length
60 cm
- ATX Power connector (24-pin)
yes
- EPS power connector (4+4 pin)
yes
- PCI Express power connectors (12+4 pin)
1
- Number of +12V rail(s)
1
- Number of EPS connectors
2
3
- Mean time between failures (MTBF)
100000 h
- Efficiency
90 %
- Hold time
16 ms
- On/off switch
yes
- Combined power (+3.3V)
120 W
- Combined power (+12V)
1200 W
- Combined power (+5V)
120 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
15 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3728537 Cooler Master ELITE GOLD 1200FM PC power supply unit 1200 W ATX 80 PLUS Gold
Description
We present the ELITE GOLD 1200 ATX 3.1 power supply with PCIe 5.1 support. The Elite Gold 1200 offers 80 Plus Gold-efficiency and a quiet fan with rifle bearing, WAS provides a first-class performance for various PC builds and daily use.
Improved design updates further enhance the user experience and result in a power supply that is both highly efficient and reliable.
This text is machine translated.
Improved design updates further enhance the user experience and result in a power supply that is both highly efficient and reliable.
This text is machine translated.
