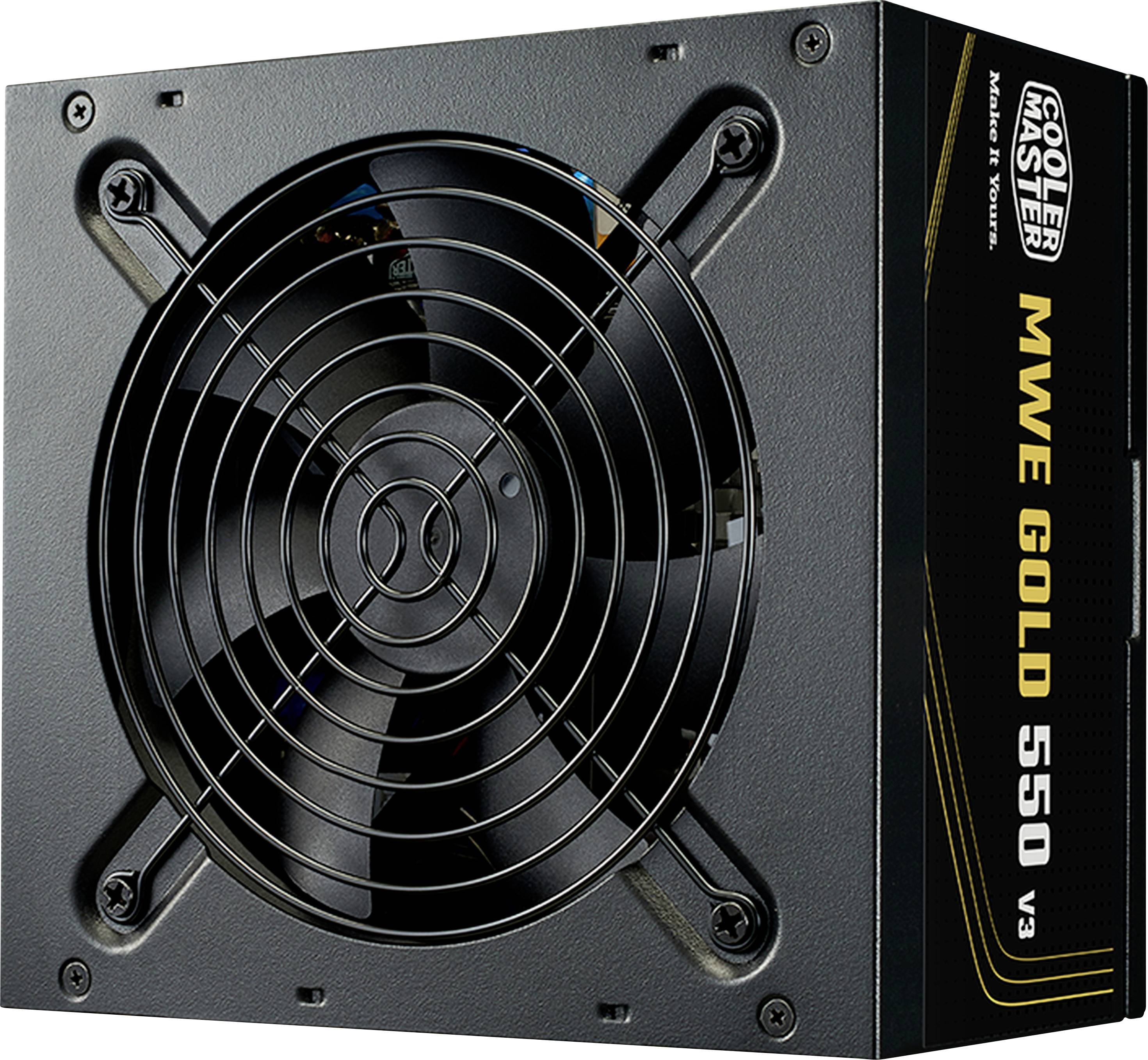

Cooler Master Netzteil MWE 550W V3 NM FR Power supply unit 550 W ATX
Product type
Power supply unit
PSU output power
550 W
Form factor
ATX
Factory colour
Black
Dim
(W x H x D) 150 x 86 x 140 mm
EAN:
Part number:
Item no:
Highlights & Details
Cooler Master Netzteil MWE 550W V3 NM FR Power supply unit
- Power supply unit output 550 W
- PCI-Express (6+2-Pin) 2x
- Cable management
Technical specifications
- 80 Plus Certification 80 PLUS Gold
- Fan diameter 12 cm
- Number of fans: 1 fans
- Product type
Power supply unit
- PSU output power
550 W
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 86 x 140 mm
- Depth
140 mm
- Height
86 mm
- Width
150 mm
- Weight
1.57 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
45.8 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 4-pin Molex
3
- 6-pin PCIe
2
- 5-pin SATA
6
- Power rating
501 - 750 W
- Cable length
0 cm
- Keyboard layout
German, QWERTZ
- Cooling
Active
- 3.3V DC
20 A
- Power supply (details)
100 - 240 V
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Master (outer) cases per pallet
120 Stück(e)
- Master (outer) case length
570 mm
- Motherboard power cable length
50 cm
- PCI Express power cable length
62 cm
- PCI Express connector
yes
- EPS power connector (4+4 pin)
yes
- Master (outer) case height
215 mm
- Master (outer) case width
275 mm
- Number of EPS connectors
2
- Mean time between failures (MTBF)
100000 h
- Efficiency
90 %
- Hold time
16 ms
- EPS power connector (8-pin)
yes
- Package weight
1.98 kg
- Fan speed
0 - 1800 RPM
- Combined power (+3.3V)
120 W
- Combined power (+12V)
549.6 W
- Combined power (+5V)
120 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
15 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730369 Cooler Master Netzteil MWE 550W V3 NM FR Power supply unit 550 W ATX
