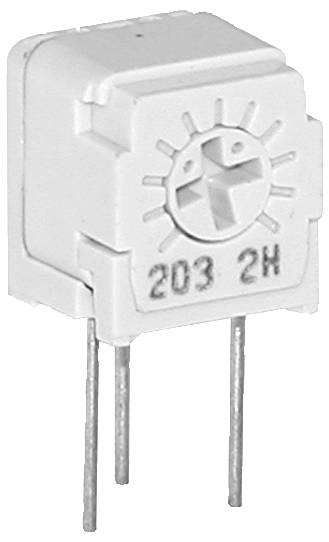

Copal FT-63ES-203 Cermet trimmer linear 0.5 W 20 kΩ 220 ° 260 ° 1 pc(s) Piece
Packaging type
Piece
Product type
Cermet trimmer
Resistance
20 kΩ
Resistance characteristic
linear
Power rating
0.5 W
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Copal Cermet trimmer vertical RM5/2.5 20K
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series FT-63
- Design: Vertical
- Weight: 0.52 g
- Axle: Crosshead
- Solder carrying capacity 245°C / 2 s.
- Resistance tolerance: ±10 %
- Resistance curve: Linear
- Rated output: 0.5 W
- Max voltage 200 V
- Actuating force 20 mNm
- Confirmation: Lateral
- Mechanical rotation angle 260 °
- Electrical angle of rotation 220 °
- Impact strength 50 mNm
- Packaging type
Piece
- Product type
Cermet trimmer
- Resistance
20 kΩ
- Resistance characteristic
linear
- Power rating
0.5 W
- Cut-off voltage
200 V
- Electrical angle
220°
- Mechanical angle
260°
- Connection
Soldering
- Operation type
side
- Tolerance ±
10 %
- Width
7.0 mm
- Height
18.4 mm
- CS
5 mm
- Dim
(L x W x H) 7.0 x 7.0 x 18.4 mm
- Content
1 pc(s)
- Type
FT-63ES-203
- RoHS-compliant
Yes
- Length
7.0 mm
- Mounting type
PCB mount
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-55 °C
- Insulation resistance
1,000 MΩ
Documents & Downloads
Datasheet
Datasheet 3464605 Copal FT-63ES-203 Cermet trimmer linear 0.5 W 20 kΩ 220 ° 260 ° 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3464605 Copal FT-63ES-203 Cermet trimmer linear 0.5 W 20 kΩ 220 ° 260 ° 1 pc(s) Piece
Description
Copal Cermet trimmer FT63-S standing RM5/
This text is machine translated.
This text is machine translated.
Features
- • High temperature range and high nominal load
- • For professional applications
