Cougar CGR GDN-1000 PC power supply unit 1000 W ATX 80 PLUS Gold

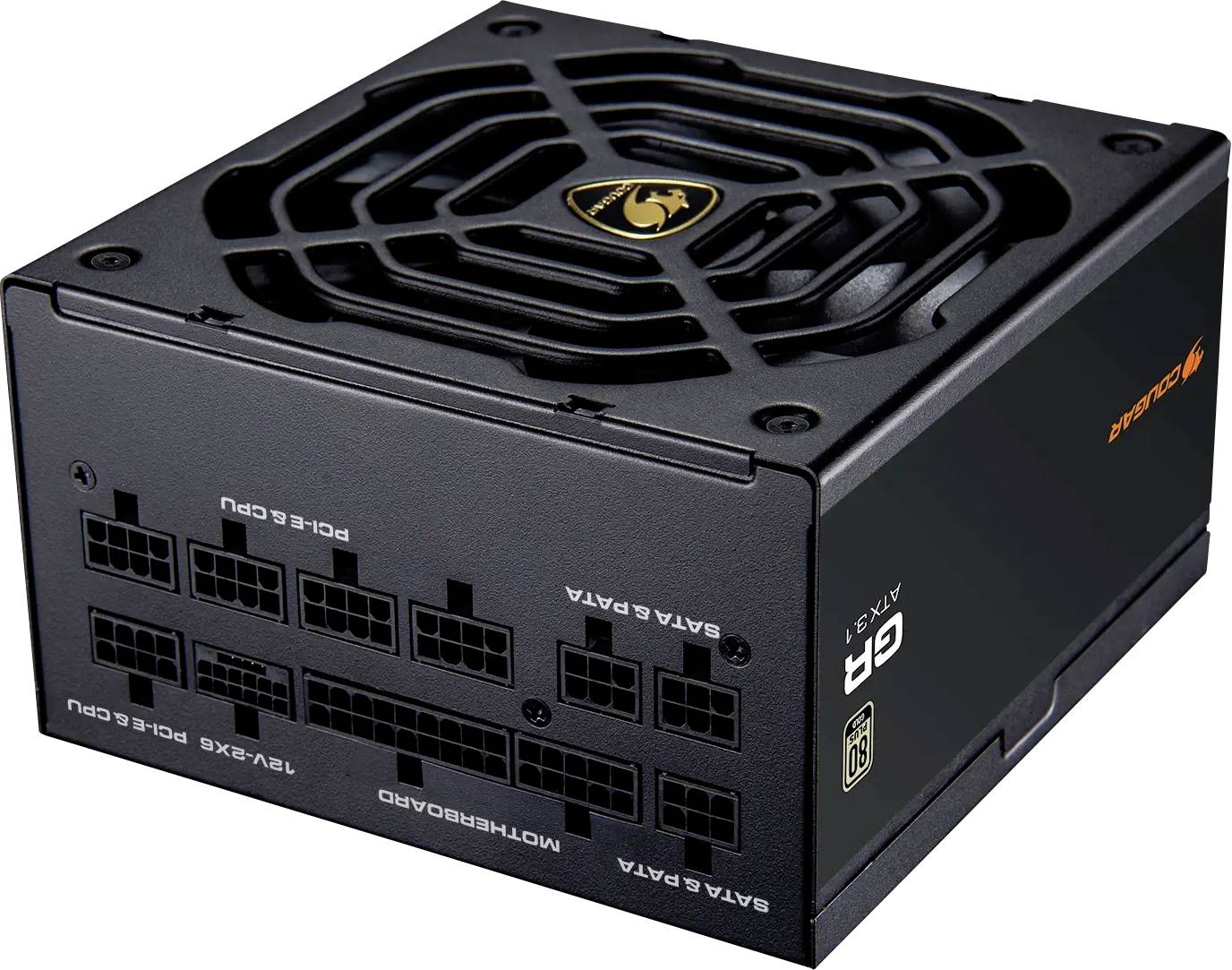

A black computer power supply unit with visible fan on top, multiple connector ports labeled for CPU, SATA, and motherboard connections.

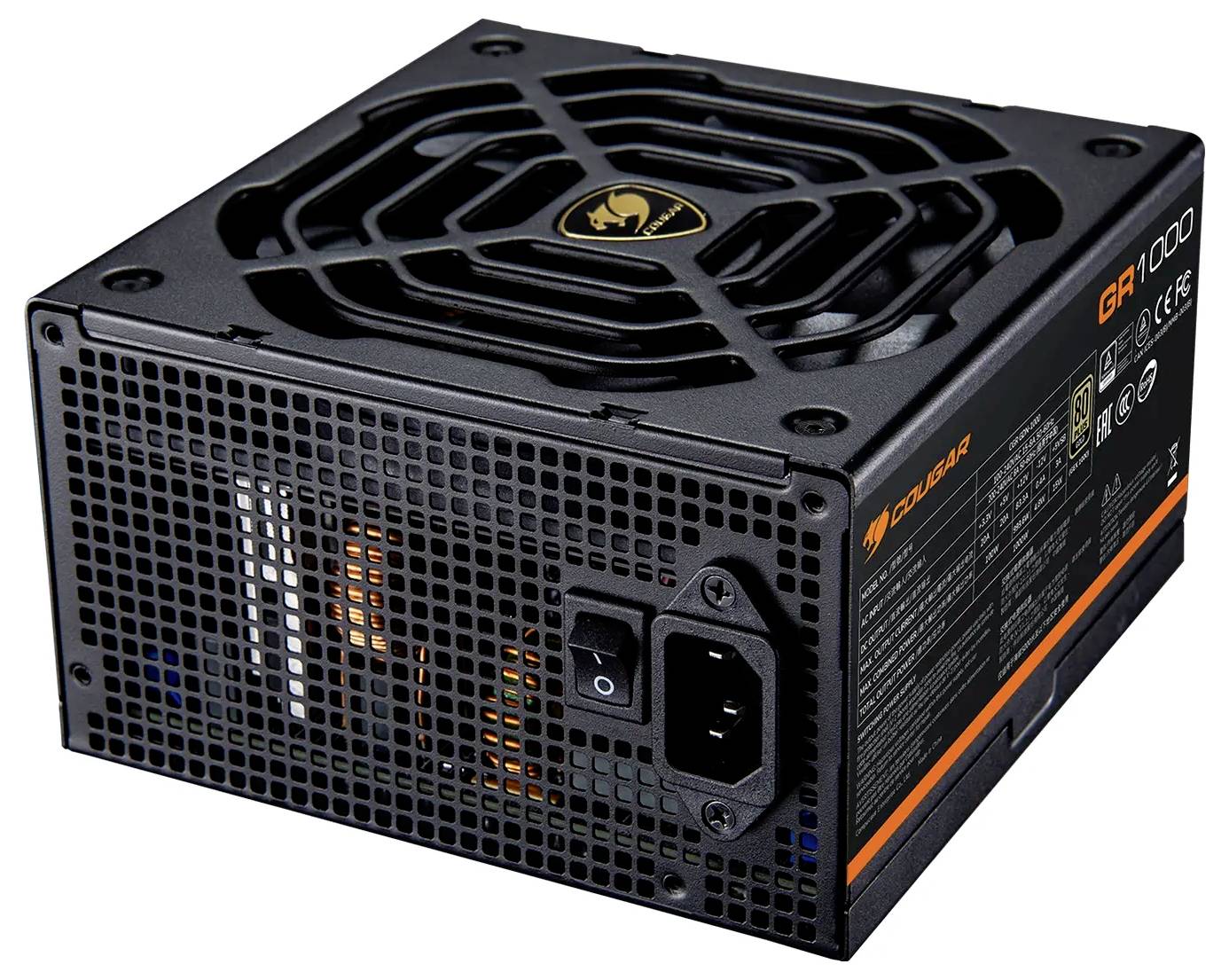

A black computer power supply unit with a vented top and side, featuring various connectors and an on/off switch on the back panel.
A black Cougar power supply box with the text 'GR ATX3.1' and '80 Plus Gold' logo, emphasizing its certification and brand.

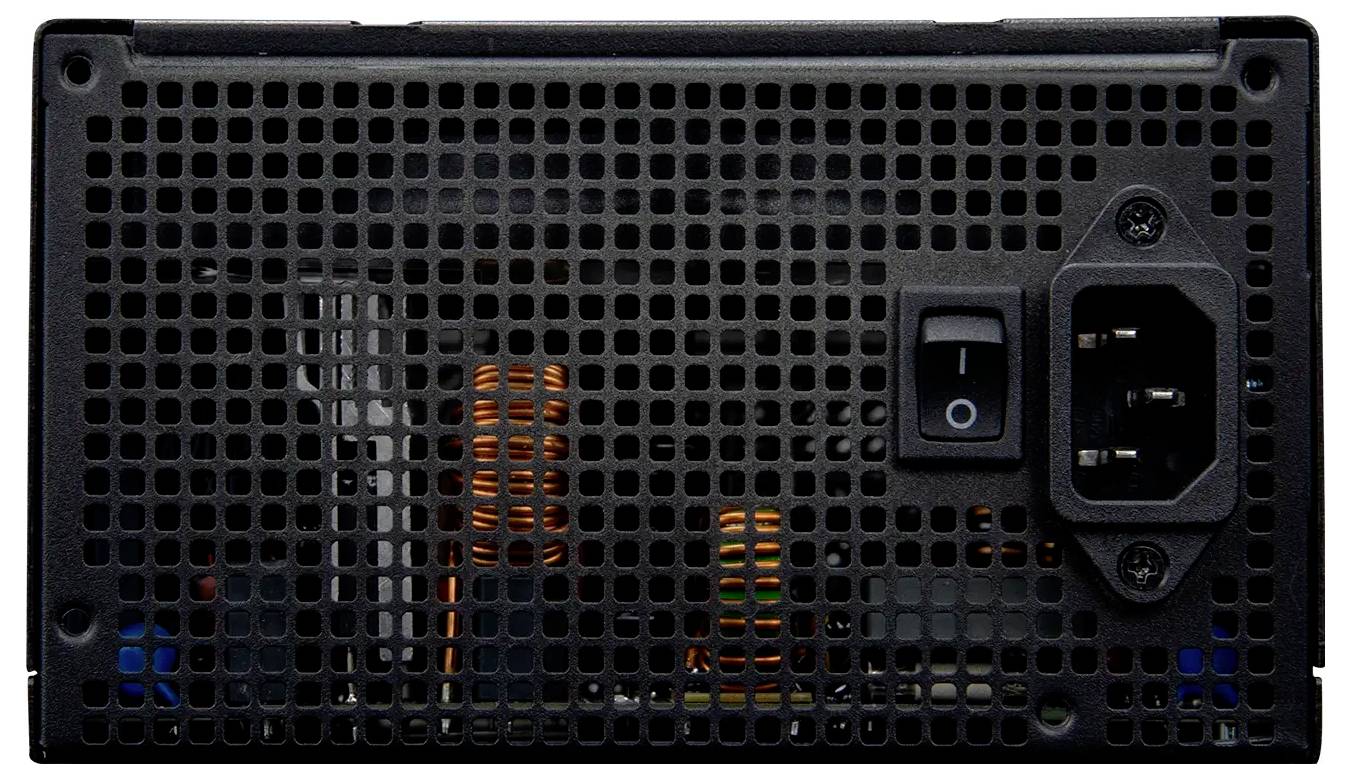

Computer power supply unit showing a mesh back panel with a power switch and an AC input socket.

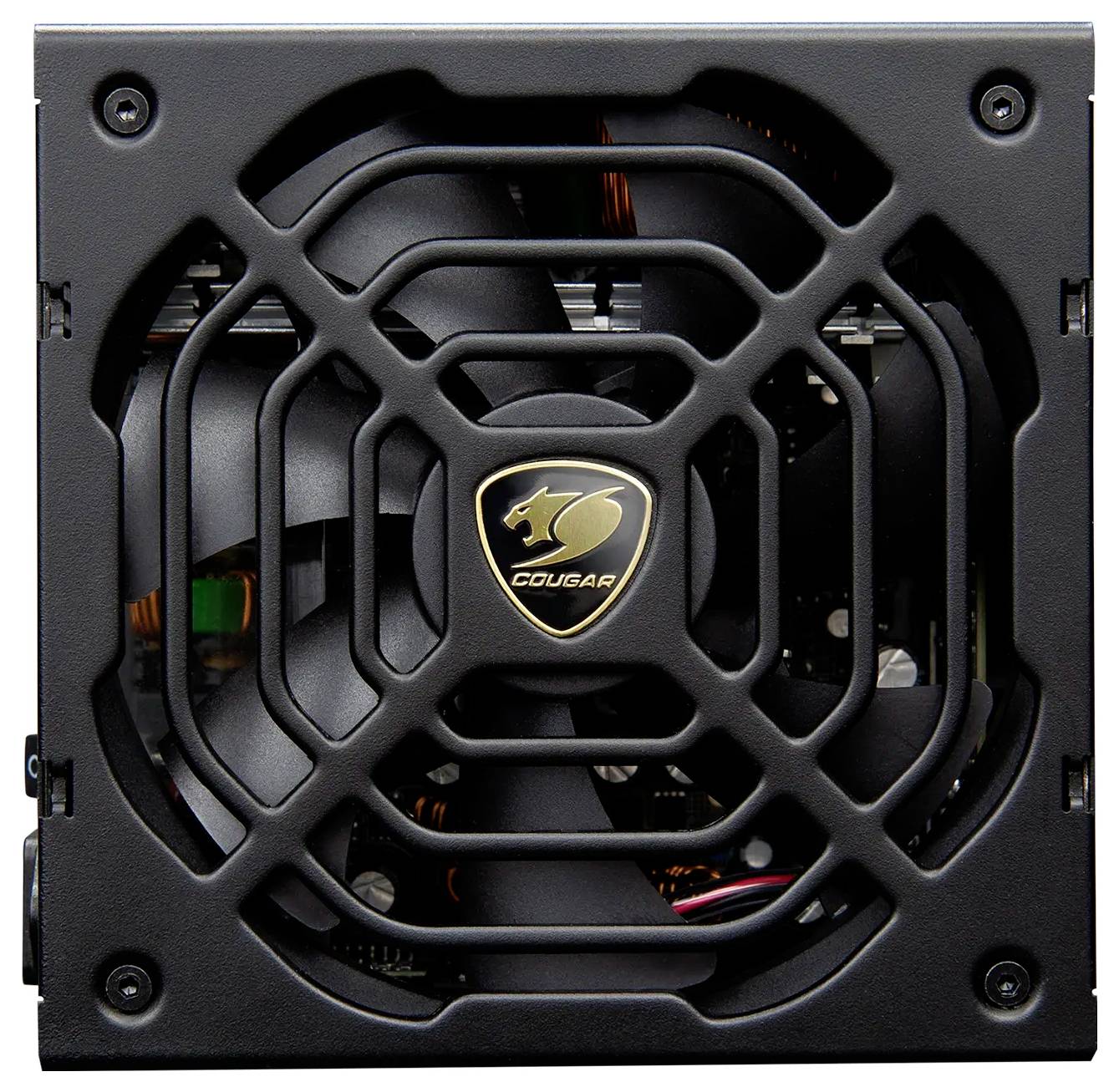

A black computer power supply unit with a fan covered by a protective grill. The logo 'Cougar' is displayed in the center.

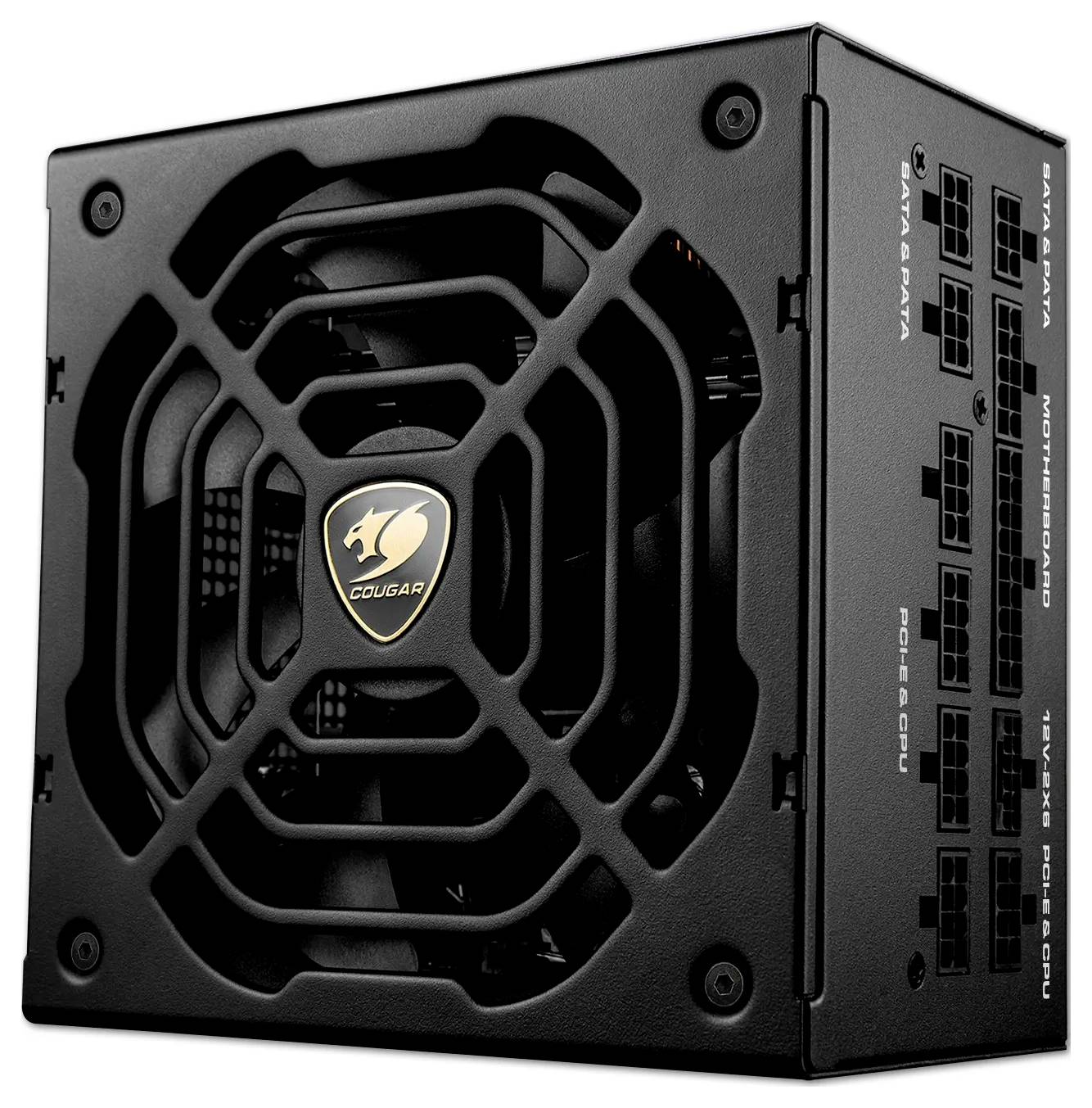

The image shows a black Cougar computer power supply unit, featuring a mounted fan with safety grill and multiple connector slots.

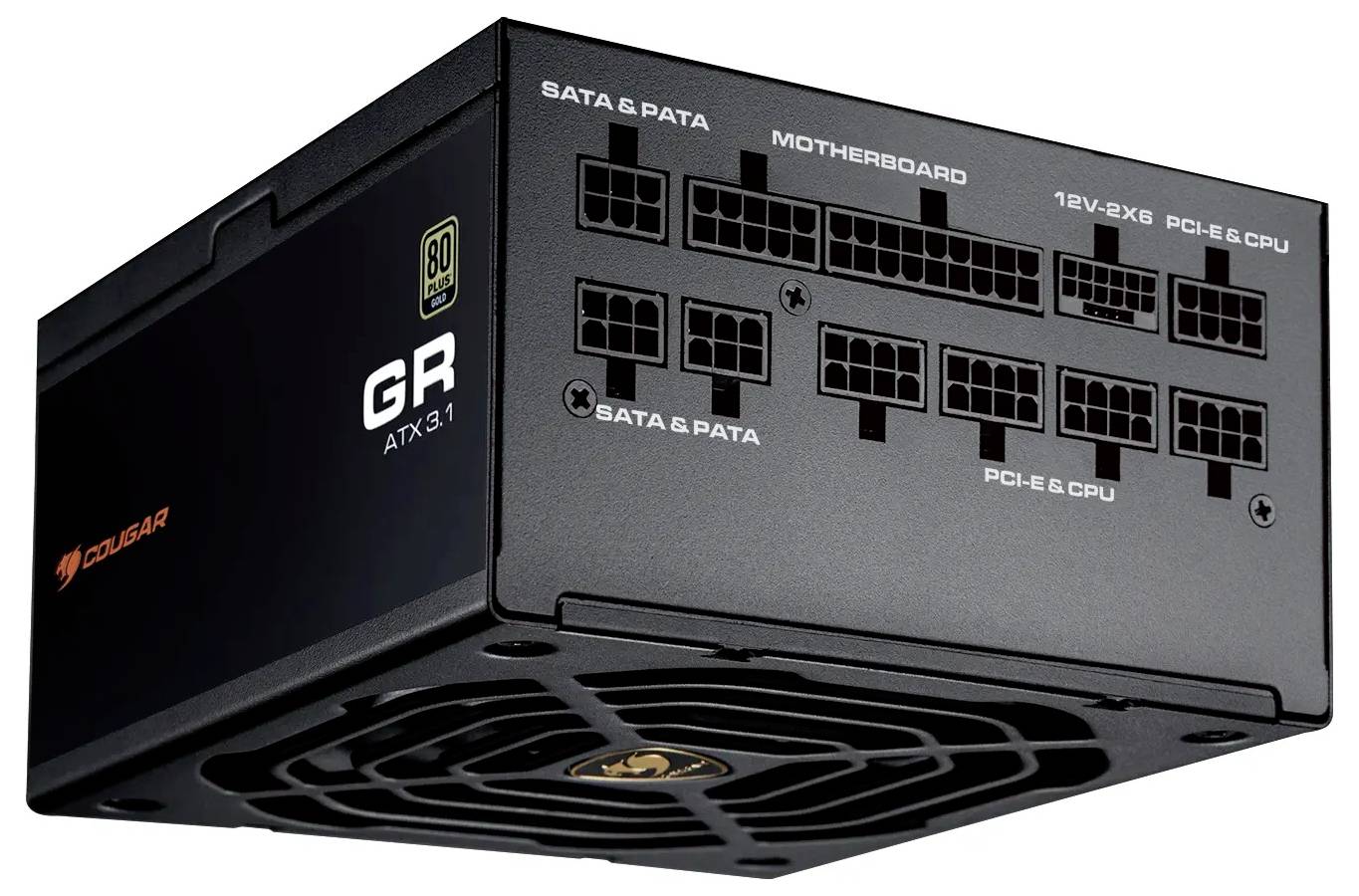

A black ATX 3.1 computer power supply unit with multiple labeled connectors for SATA, PATA, motherboard, PCI-E, and CPU, labeled 'Cougar'.

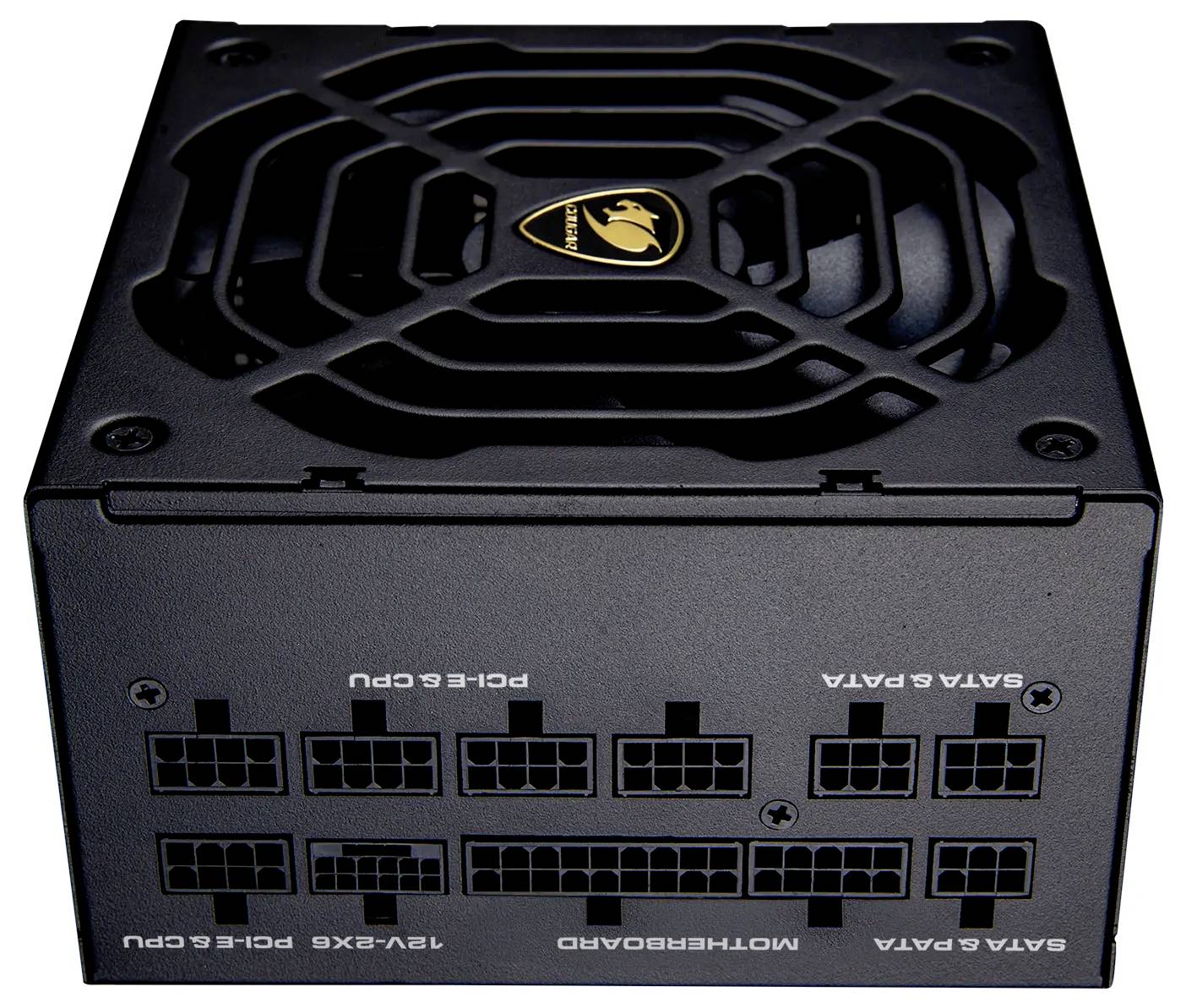

A black computer power supply unit with multiple cable ports labeled for 'PCI-E', 'CPU', and 'SATA/PATA', featuring a cooling fan on top.

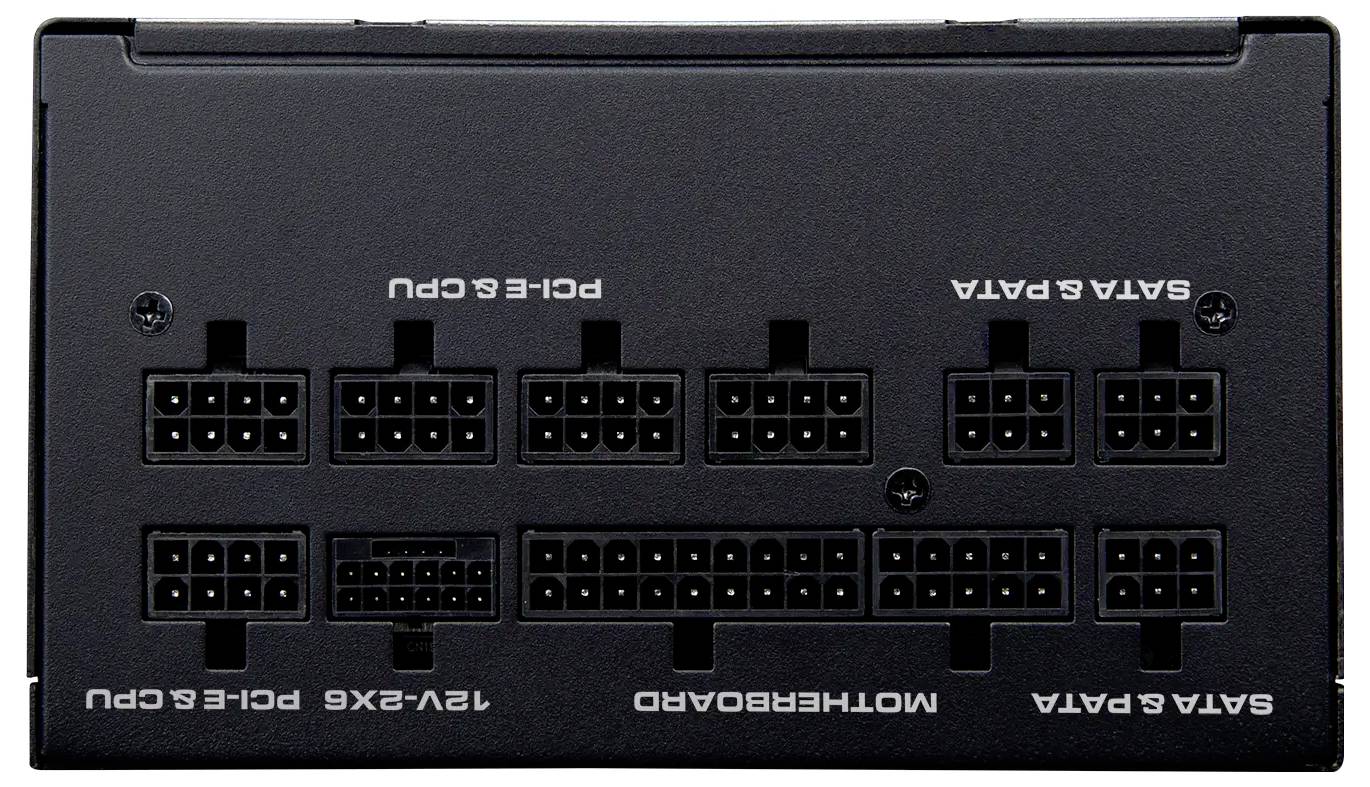

A close-up of a computer power supply unit's cable interface, showing various labeled ports including 'PCI-E' and 'SATA'.
Packaging for Cougar GR power supply unit showing product image, '80 Plus Bronze' label, and features list on the back.

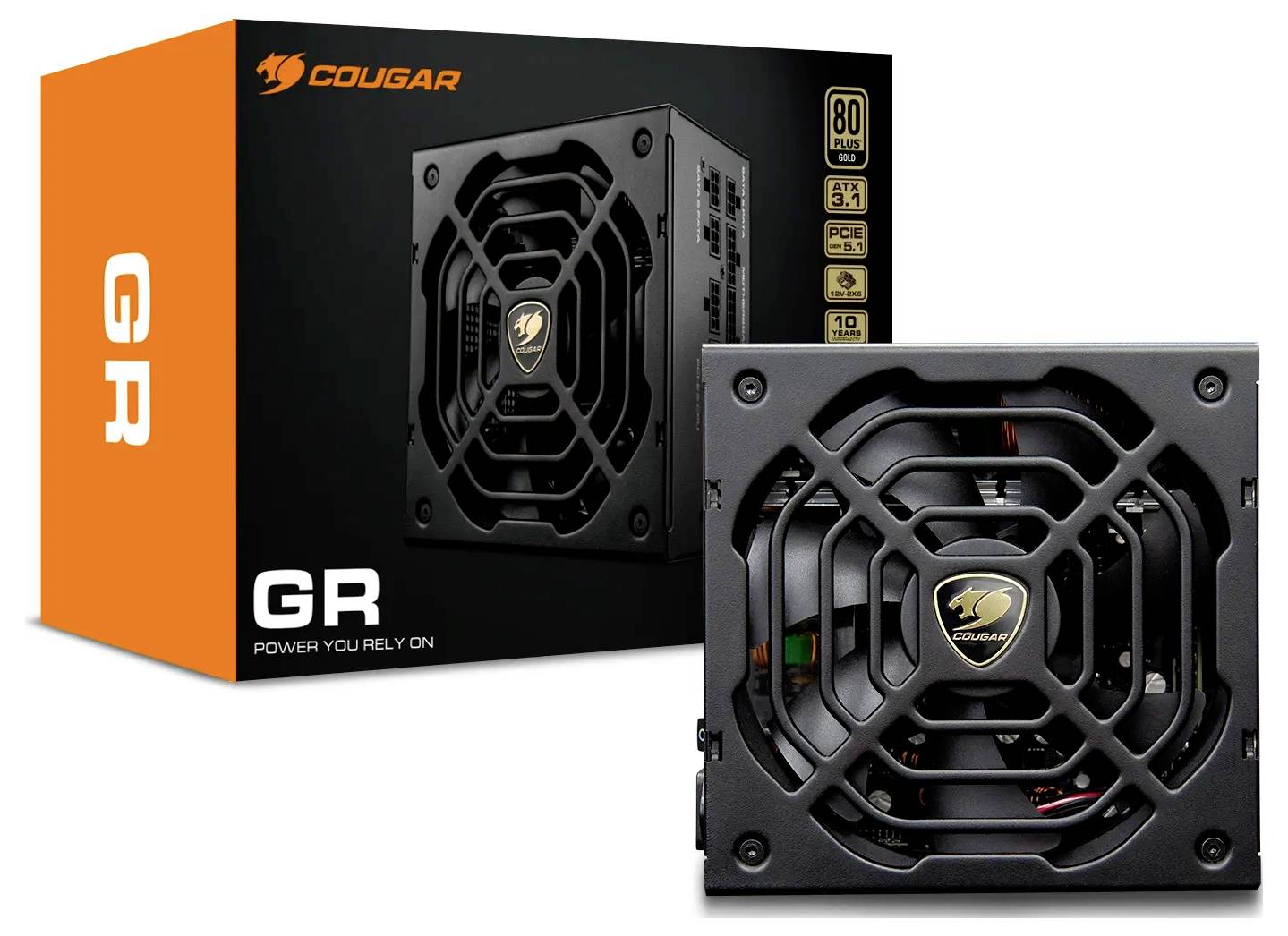

Cougar GR power supply, featuring black casing with fan grille, positioned next to its orange and black packaging labeled 'GR'.
1/11
Product type
PC power supply unit
PSU output power
1000 W
Modular
Yes
Certification
80 PLUS Gold
Form factor
ATX
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Cougar CGR GDN-1000 PC power supply unit

  • Power supply unit output 1000 W
  • PCI-Express (6+2-Pin) 3x
  • Cable management Yes
  • 80 PLUS Gold

Technical specifications

  • Cooling: Active
  • Number of fans: 1 fans
  • CPU connector (4+4 pin): Yes
  • PCI Express power connections (12+4-pin) Cable length 600 mm
  • PCI Express power connections (12+4-pin) 1
  • CPU power Cable length 70 cm
  • SATA-power cable length 150.450 mm
  • On/off switch: Yes
  • AC input frequency 50/60 Hz
  • Combined current (+3.3V) 100 W
  • Combined current (+5Vsb): 15 W
  • Combined current (+5V): 100 W
  • Combined current (-12V): 4.8 W
  • Combined current (+12V): 999.6 W
  • Energy protection properties: Overcurrent, overload, overvoltage, overheating, short circuit, It provides total voltage
  • Input current 15-8 A
  • Power cable length of motherboard 60 cm
  • Storage type: FDB
  • Average time between failures (MTBF): 100000 hours
Product type

PC power supply unit

PSU output power

1000 W

Modular

Yes

Certification

80 PLUS Gold

Form factor

ATX

Factory colour

Black

Dim

(W x H x D) 150 x 86 x 150 mm

Depth

150 mm

Height

86 mm

Width

150 mm

Weight

2.25 kg

-12V / DC

0.4 A

+12 V/DC (1)

83.3 A

5 V DC

20 A

+5V / DC SB

3 A

20+4-pin.

1

4-pin Molex

3

6-pin PCIe

3

5-pin SATA

9

Features

ATX 3.1

PCIe Gen 5.1

Power rating

751 W -

Fan size

120 mm

3.3V DC

20 A

Operating voltage

100 - 240 V / AC

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3492130 Cougar CGR GDN-1000 PC power supply unit 1000 W ATX 80 PLUS Gold

Description

Cougar Gaming Cougar Power supply GR 1000W ATX3.1/PCIE 5.1 / 80 Plus Gold. Total power 1000 W, AC input voltage 100 240 V, AC input frequency 50/60 Hz Motherboard connector: 20+4 pin ATX, power cable length of mainboard:60 cm, SATA network cable length:150.450 mm. Purpose: PC, Power Supply Unit (PSU) Form factor: ATX, 80 Plus Certification: 80 PLUS Gold. Product color: Black, cooling: Active, fan diameter: 12 cm.
