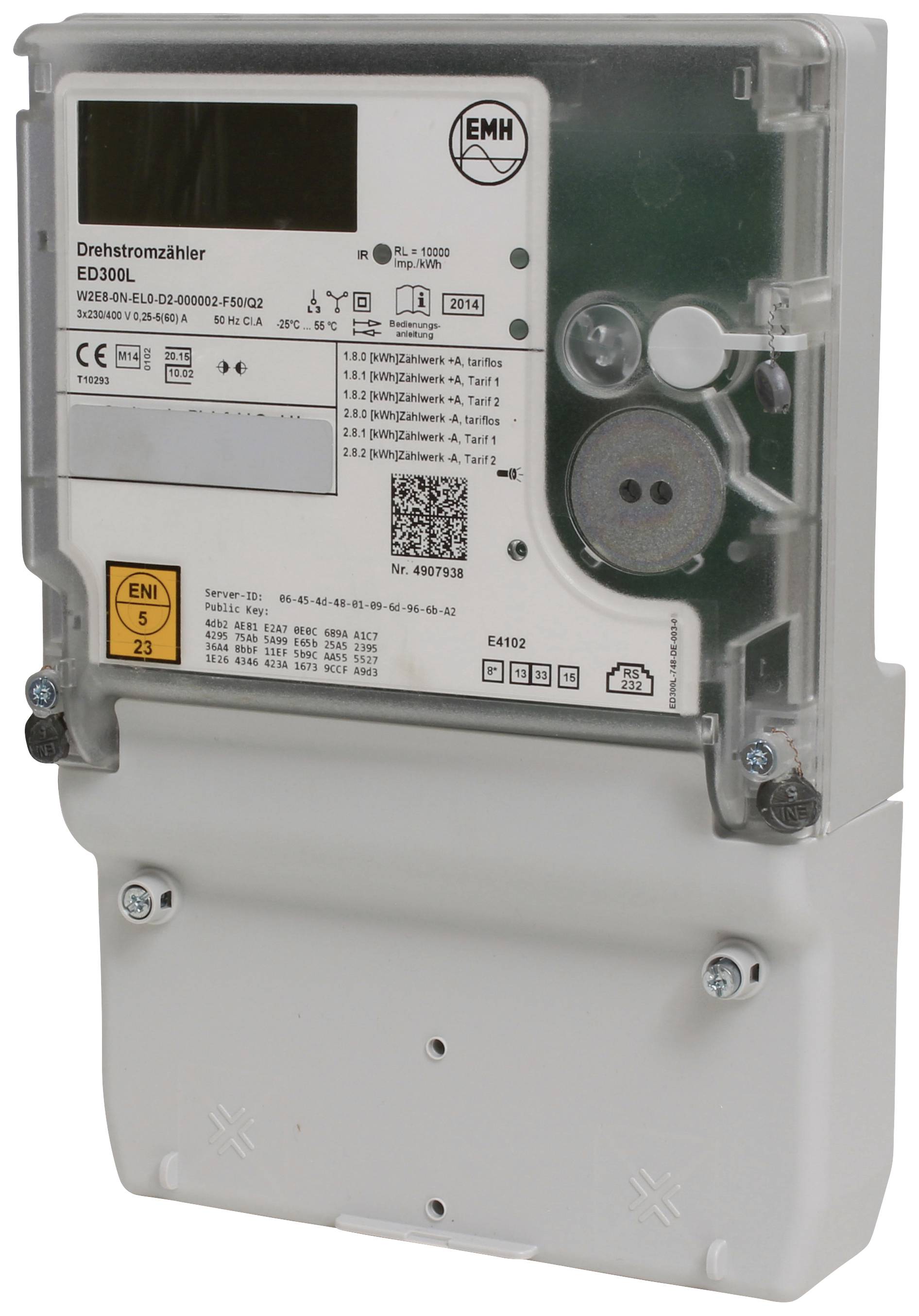

Counttec EDL 300 Electricity meter (3-phase) Digital 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (3-phase)
Display
Digital
Calibration
Regenerated/calibrated
Operating voltage
3 x 230/400 V
Dim
(L x W x H) 79 x 178 x 265 mm
Technical specifications
- Measurement modes: Setup counter 1 +A with reverse lock or setup counter -A with reverse lock or bi-directional counter +A and -A or balancing counter -A with no reverse lock
- Impulse values LED (IR): 10 000 Imp./kWh (60 A). 5 000 Imp./kWh (100 A)
- Data interfaces: Optical. Electrical - RS232
- Operating temperature range: -40°C...+70°C.
- Protection class: II
- IP 51 enclosure rating
- Protection class IP 31 terminals
- Housing material: Polycarbonate glass-fiber reinforced. halogen-free. recyclable
- Product type
Electricity meter (3-phase)
- Display
Digital
- Calibration
Regenerated/calibrated
- Operating voltage
3 x 230/400 V
- Dim
(L x W x H) 79 x 178 x 265 mm
- Weight
1.3 kg
- Display
2-line LCD display 8 mm (value range). Status information about phase failure. Energy direction. Tariff. Testing mode. Manipulation
- Recording time (max.) (details)
spannungslos im EEPROM. mind. 20 Jahre
- Self-consumption
1.1 W
- Own consumption
Voltage path < 1.1 W. Current path < 0.05 VA
- Recess width
178
- Recess length
265
- Frequency
50 Hz
- Accuracy class
CI.A
- Reading type
Amperage
- Nominal voltage range
230 up to 400 V AC
- Mains voltage (max.)
400 V AC
- Mains voltage (min.)
230 V
- Width
178 mm
- Height
265 mm
- Length
79 mm
- Current (max.)
300 A
- Current (min.)
0.25 A
- Current range
0.25 up to 300 A
- Type
EDL 300
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2997951 Counttec EDL 300 Electricity meter (3-phase) Digital 1 pc(s)
User & Safety Instructions 2997951 Counttec EDL 300 Electricity meter (3-phase) Digital 1 pc(s)
Description
EMH – three-phase meter ED 300 L 5/60 or 100 Amp. regenerated and tested
Electronic EMH rotary current meter ED 300L 5/60 amp. Household meter / Smart Meter
This counter is a complete replacement for the old Ferrari 10/60 Amp counters.
This is a:
According to the law-compliant electricity meter according to §29(3) and §61(3) of the Measuring Point Operation Act
(MsbG) dated 29.08.2016. As well as FNN - Specification of basic counter. Functional Features Version 1.3. This counter can be upgraded to an intelligent measurement system (iMSys) in accordance with §21(1) MsbG using the MSB interface. These have been a rule since 2020. See Measuring Point Operation Act
Voltage of 4-conductor counter 3x230/400 V. can also be used in 230 V AC power supplies
Data labeling OBIS-characteristics Power supply 3-phase power supply. 1-phase with alternating current ensures very low electromagnetic radiation.
Current 0.25 - 5(60) A. Imax. 3 x 60 Amp. Max. 72 kW. Frequency 50 Hz
This counter can also be used as a 2 tariff meter. The switching takes place via terminal 13/15 OBIS 1.8.1 tariffs 1 and 1.8.2 tariff 2 or external tariff control via electrical data interface (RS-232) or control input control inputs system voltage 2 for controlling the tariffs and activation of the 2-tariff display
Class accuracy of the active energy Cl. A according to EN 50470-1. -3 types of active energy setup counter 1 +A with back stop OBIS 1.8.0
Impulse features LED (IR) 10 000 Imp./kWh (60 A). Energy counters Number of 1 and 23 tariff registers
Data retention in EEPROM. At least 20 years display Design 2-line LC-display Digit height 8 mm (value range) with display of the current power in watt
Additional display status information via phase failure. Energy direction. Tariff. Testing mode. Manipulation. Operation of the optical button. Mechanical call button for display call-up.
IR - Data interfaces Optical data interface on the front of the counter (unidirectional - Push operation) electrical data interface Under the terminal cover. RS232 bidirectional;
Supply by communication device: +5 V DC or +12 V DC with current limit of up to 10 mA
RS-232 data protocol Smart message language (SML). Transmission of the data record every 1…4 seconds, depending on the load. Baud rate 9600 baud. Resolution of the counter reading 100 mWh
The scope of delivery includes a special clamp cover with the option of mounting a modem or a nearby radio round control receiver.
This text is machine translated.
