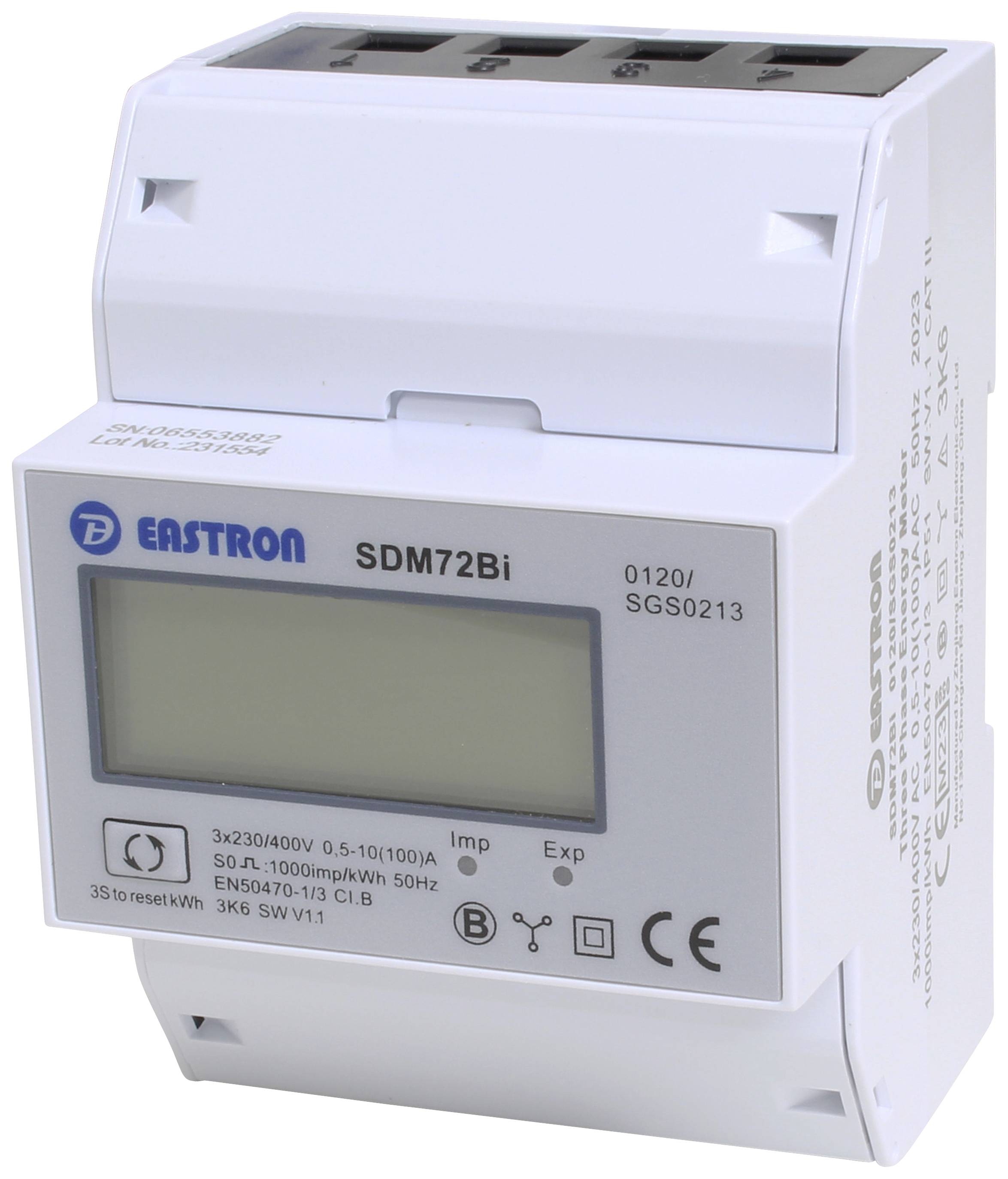

Counttec SDM72Bi 2-way rail-mount electricity meter Digital 100 A MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
2-way rail-mount electricity meter
Current load
100 A
Display
Digital
Calibration
Calibrated
Operating voltage
3 x 230/400 V
Datasheet (PDF)
Highlights & Details
Bi-directional meter. Ideal for photovoltaic
- LCD number and character display with white-bluish background lighting
- Bi-directional counter Display output for total effective power in kWh for import and export
- Display of the current load (display of current consumption in watts) for import and export
- Day counter function (free resettable/resettable) for import and export
- S0 output for import
- Optical display via LED via the current flow direction (Imp./Exp.)
Technical specifications
- Start-up time: 10s
- Voltage range: 80 to 120% Un
- AC voltage resistance 4KV for 1 min.
- Impulse voltage resistance 6KV-1.2 US
- Overcurrent resistance: 30lmax for 0.01s
- S-interface: S-interface. 1,000 Imp./kWh
- Operating temperature: -25°C to + 55 °C.
- Storage temperature: -40°C to +70°C.
- Protection class: II
- Protection class: IP51
- Installation size 4 TE
- Product type
2-way rail-mount electricity meter
- Current load
100 A
- Display
Digital
- Calibration
Calibrated
- Operating voltage
3 x 230/400 V
- Dim
(L x W x H) 66 x 72 x 100 mm
- Starting current
0.4% lb
- Display
LCD 7 digit. With lighting
- Self-consumption
2 W
- Own consumption
<2W / 10V
- Recess width
72
- Recess length
100
- Frequency
50 Hz
- Accuracy class
1
- MID-approved
Yes
- Reading type
Amperage
- Nominal voltage range
230 up to 400 V AC
- Mains voltage (max.)
400 V AC
- Mains voltage (min.)
230 V
- Width
72 mm
- Height
100 mm
- Length
66 mm
- Current (max.)
100 A
- Current range
100 A (max)
- Features
Reset option
- Type
SDM72Bi
Documents & Downloads
Datasheet
Datasheet 2997952 Counttec SDM72Bi 2-way rail-mount electricity meter Digital 100 A MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2997952 Counttec SDM72Bi 2-way rail-mount electricity meter Digital 100 A MID-approved: Yes 1 pc(s)
Description
Delivery/Reference. Current load indication Daily counter. Ideal for photovoltaic MID calibrated
