1/2
Image similar
Crimp contact 1605634 SF-7PP2000 Phoenix Contact Content: 50 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crimp contact
Connector type
Pin, machined
Connection
Crimp
Connector cross section
1 mm²
Datasheet (PDF)
Technical specifications

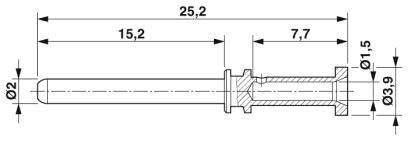

- Contact diameter 2 mm
- Mating cycles mechanical: 100
- Wire cross-section min.: 0.25 mm²
- Contact surface: Nickel-plated (Ni), with gold plating (Au)
- Packaging type
Piece
- Product type
Crimp contact
- Connector type
Pin, machined
- Connection
Crimp
- Connector cross section
1 mm²
- Case material
Brass
- Manufacturer part #
1605634
- Content
50 pc(s)
- Contact material
CuZn
- Core diameter
0.25 mm²
- (Ø)
2 mm
- RoHS-compliant
Yes
- Type
SF-7PP2000
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137376 Crimp contact 1605634 SF-7PP2000 Phoenix Contact Content: 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2137376 Crimp contact 1605634 SF-7PP2000 Phoenix Contact Content: 50 pc(s)
Description
Crimp connection: vibration and temperature-proof assembly. High connection tensile strength. Low contact resistance. Easy production monitoring.
