Crimp contact 1704927 PV-FT-CCM-2,5-4-R1000 Phoenix Contact Content: 1000 pc(s)

A large, black plastic reel with a protruding ridge displaying several electronic components.

A large, black plastic reel with a protruding ridge displaying several electronic components.

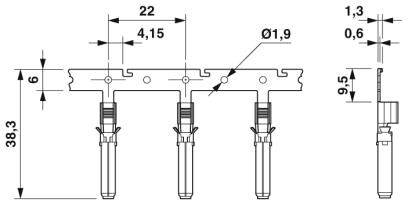

Technical drawing with three vertical pins, dimensions are specified: height 38.3 mm, width 22 mm, diameter Ø1.9 mm.

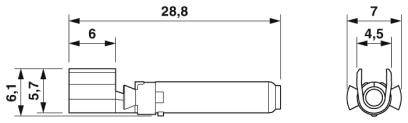

Technical drawing of a connector with dimensions: Total length 28.8 mm, diameter 6.1 mm, connection 6 mm long, 4.5 mm wide.

1/3

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Halogen-free: Yes
Insertion force 45 N ±10 N.

Type: PV-FT-CCM-2,5-4-R1000

Product type: Crimp contact

: IP66
IP68
IP20

Connection: Crimp

Connector cross section: 2.5 mm² - 4 mm²

Rated voltage: 1500 V

Test current: 27 A

Resistance: 0.45 mΩ

Manufacturer part #: 1704927

Content: 1000 pc(s)

Contact material: Copper gold plated

RoHS-compliant: Yes

Connector type: Pin

Max. temperature: +85 °C

Min. temperature: -40 °C

UKCA: yes
