Crimp contact 1704930 PV-FT-CCF-2,5-4-R1000 Phoenix Contact Content: 1000 pc(s)

A large, black plastic reel with a protruding ridge displaying several electronic components.

A large, black plastic reel with a protruding ridge displaying several electronic components.

Crimp contact 1704930 PV-FT-CCF-2,5-4-R1000 Phoenix Contact Content: 1000 pc(s)-1

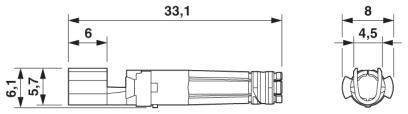

Technical drawing of a connector with dimensions: Length 33.1 mm, Height 6.1 mm, Width 8 mm, Width of one part 4.5 mm, Distance 6 mm.

1/3

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Halogen-free: Yes
Insertion force 45 N ±10 N.

Type: PV-FT-CCF-2,5-4-R1000

Product type: Crimp contact

: IP66
IP68
IP20

Connection: Crimp

Connector cross section: 2.5 mm² - 4 mm²

Rated voltage: 1500 V

Test current: 27 A

Resistance: 0.45 mΩ

Manufacturer part #: 1704930

Content: 1000 pc(s)

Contact material: Copper gold plated

RoHS-compliant: Yes

Connector type: Socket

Max. temperature: +85 °C

Min. temperature: -40 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2137239 Crimp contact 1704930 PV-FT-CCF-2,5-4-R1000 Phoenix Contact Content: 1000 pc(s)

User & Safety Instructions

User & Safety Instructions 2137239 Crimp contact 1704930 PV-FT-CCF-2,5-4-R1000 Phoenix Contact Content: 1000 pc(s)

Description

Photovoltaic plug connector, rated voltage 1500 V, connection type: Crimp

This text is machine translated.

Description

Photovoltaic plug connector, rated voltage 1500 V, connection type: Crimp

This text is machine translated.
