Crimp contact 1704931 PV-FT-CCF-6-R1000 Phoenix Contact Content: 1000 pc(s)

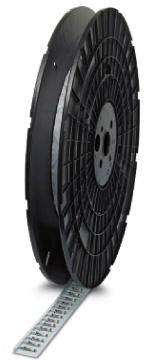

A large, black plastic reel with a protruding ridge displaying several electronic components.

A large, black plastic reel with a protruding ridge displaying several electronic components.

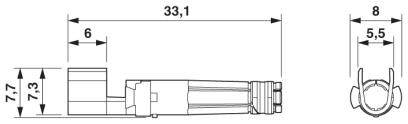

Technical drawing of a connector with side and frontal view, including dimensions: Length 33.1 mm, Width 8 mm.

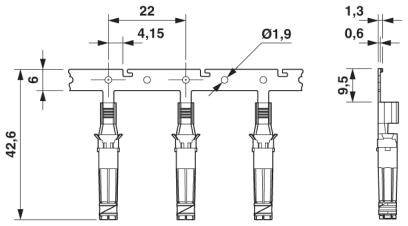

Technical Drawing of an Electrical Connector with Dimensions: Width 22 mm, Height 42.6 mm, Pin Diameter Ø1.9 mm.

1/3

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Mating cycles: 100
Insertion force<: 20 N (uninstalled condition)

Type: PV-FT-CCF-6-R1000

Product type: Crimp contact

Total no. of pins: 1

: IP66
IP68
IP20

Connection: Crimp

Connector cross section: 6 mm²

Rated voltage: 1500 V

Resistance: 0.45 mΩ

Manufacturer part #: 1704931

Content: 1000 pc(s)

Contact material: Copper gold plated

Number of pins: 1

RoHS-compliant: Yes

Connector type: Socket

Max. temperature: +85 °C

Min. temperature: -40 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2137256 Crimp contact 1704931 PV-FT-CCF-6-R1000 Phoenix Contact Content: 1000 pc(s)

User & Safety Instructions

User & Safety Instructions 2137256 Crimp contact 1704931 PV-FT-CCF-6-R1000 Phoenix Contact Content: 1000 pc(s)

Description

Photovoltaic plug connector, rated voltage 1500 V, connection type: Crimp

This text is machine translated.

Description

Photovoltaic plug connector, rated voltage 1500 V, connection type: Crimp

This text is machine translated.
