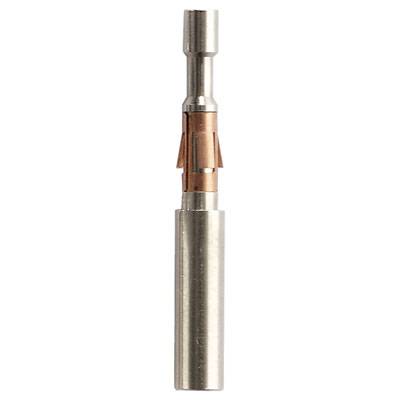

Crimp contact HDC-C-HD-B-LWL1.0POF Weidmüller Content: 10 pc(s) Crimp contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Crimp contact
Type
HDC-C-HD-B-LWL1.0POF
Manufacturer part #
1773640000
Connection
Crimp
Datasheet (PDF)
Highlights & Details
Crimp contact
Our service for you
Technical specifications
- Wire stripping length Rated connection: 14 mm
- Diameter: 3.5 mm
- Production process: Turned
- Contact diameter Pin Ø: 1.6 mm
- Wire connection cross-section: 1 mm²
- Surface: Silver
- Packaging type
Piece
- Type
HDC-C-HD-B-LWL1.0POF
- Product type
Crimp contact
- Manufacturer part #
1773640000
- Connection
Crimp
- Content
10 pc(s)
- Material
Copper alloy
- Suitable for
HD
- Height
50 mm
- Length
2 mm
- Width
50 mm
- Industrial packaging
Yes
- Weight
1 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 358292 Crimp contact HDC-C-HD-B-LWL1.0POF Weidmüller Content: 10 pc(s) Crimp contact
User & Safety Instructions
User & Safety Instructions 358292 Crimp contact HDC-C-HD-B-LWL1.0POF Weidmüller Content: 10 pc(s) Crimp contact
Description
Crimp contact. Heavy-duty connectors, Contact, HD, HDD, HQ, MixMate, CM 10, Socket, conductor connection cross-section, max.: 1, rotated, copper alloy. Fiber-optic cables guarantee a fail-safe and reaction-free transmission. The new fiber-optic contacts allow now also suitable for use in heavy plug connector. Your geometry corresponds to our proven HD-contacts for connecting conventional copper wires. Accordingly, you can be mounted in the existing plug-in connectors of the HD-series, and also find application in the modular system concept. Even the connection of optical fibers and copper cables in a single plug connector is possible.
This text is machine translated.
This text is machine translated.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
