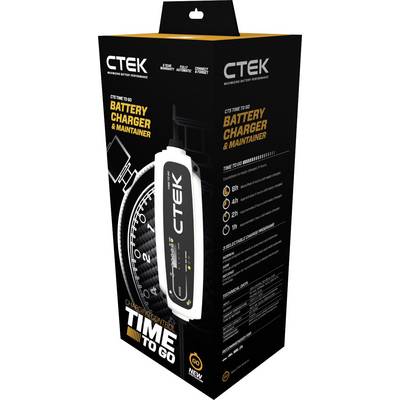

CTEK CT5 TIME TO GO 40-161 Automatic charger 12 V 5 A 5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Automatic charger
- Activation of batteries with sulphate content
- Reactivation of deep-discharged batteries
- Pulse charging maintenance for maximum durability
Technical specifications
- Product type
Automatic charger
- Dim
(L x W x H) 168 x 65 x 38 mm
- Battery voltage
12 V
- Operating voltage
230 V / AC
- Recommended battery capacity at 12 V max.
110 Ah
- Recommended battery capacity at 12 V min.
14 Ah
- Suitable for
VRLA AGM
PbCa
SLA
- Weight
600 g
- Features
Battery test
Refresher/regenerator
Multiple charging modes
Battery life protection
Charge monitoring
Suitable for start-stop systems
- Battery charging function
IUoUp characteristic with automatic pulse charge
- Charging current at 12 V
5 A
- Charging current at 24 V
5 A
- Width
65 mm
- Height
38 mm
- Length
168 mm
IP65
- Max. charging current
-
- Connector
Pin contact
- Suitable for
-
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1407485 CTEK CT5 TIME TO GO 40-161 Automatic charger 12 V 5 A 5 A
User & Safety Instructions
User & Safety Instructions 1407485 CTEK CT5 TIME TO GO 40-161 Automatic charger 12 V 5 A 5 A
User & Safety Instructions 1407485 CTEK CT5 TIME TO GO 40-161 Automatic charger 12 V 5 A 5 A
Warranty Terms
Warranty Terms 1407485 CTEK CT5 TIME TO GO 40-161 Automatic charger 12 V 5 A 5 A
Description
The innovative frequency charger with multi-level fully automated charging characteristics IUoUp without voltage peaks is very impressive. Batteries can be charged in the connected state, without causing any damage to the vehicle electronics (motor control). The pulse-maintenance charging keeps them ready for use at 95 – 100%. The charger may also remain permanently connected to the batteries.
Features
- Quick connector coupling for various connection options
- Sulphate treatment
