Highlights & Details

Cudy AP1300 outdoor 1167 Mbit/s white Power over Ethernet (PoE)

2.4 GHz 300 Mbit/s
5 GHz 867 Mbit/s
Maximum data transfer rate of 1167 Mbps
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
WPA, WPA2, WPA2
Power over Ethernet (PoE)

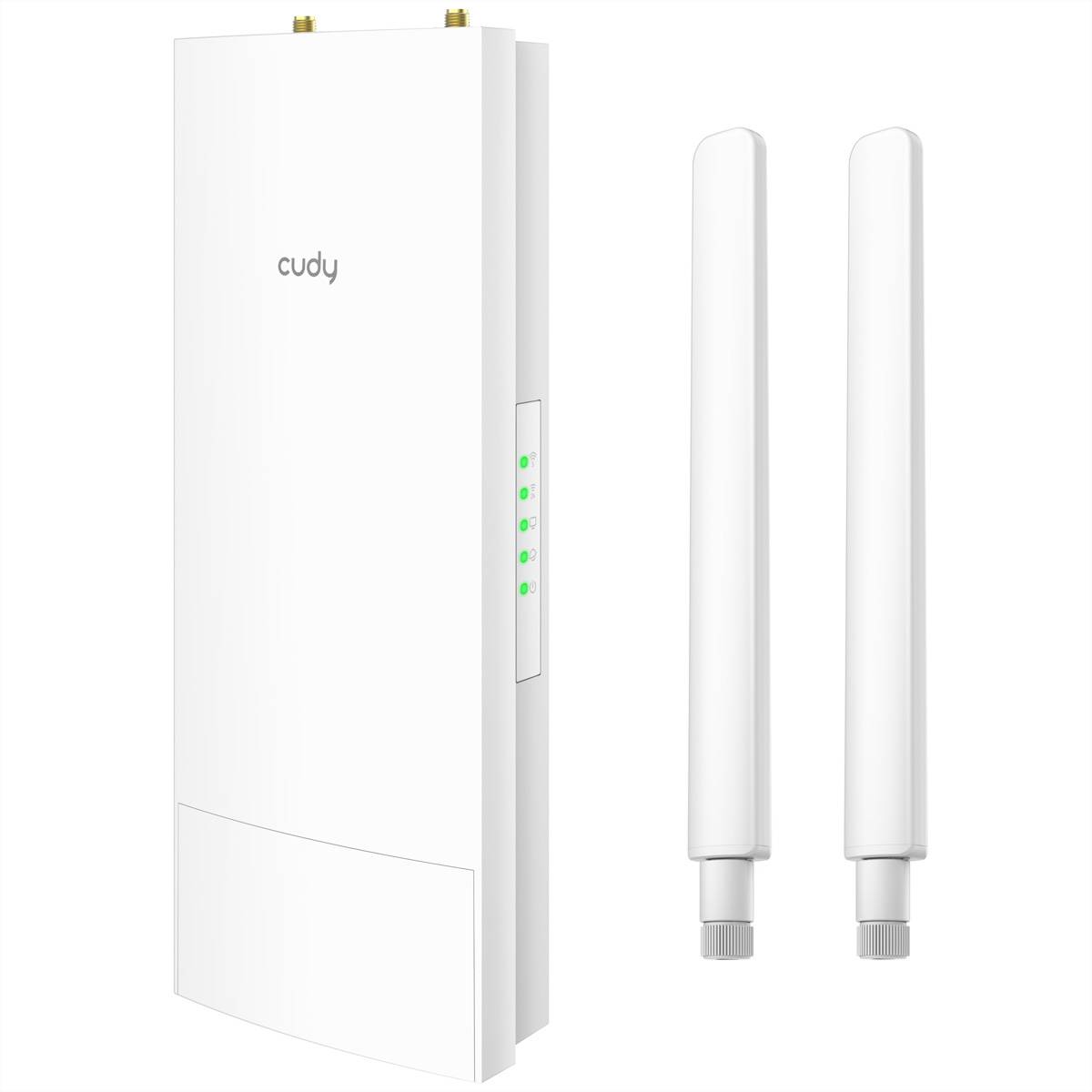

Number of antennas: 2 externally removable antenna

Technical specifications

Maximum data transfer rate of 1167 Mbit/s.
Maximum data transfer rate (2.4 GHz): 300 Mbit/s.
Maximum data transfer rate (5 GHz): 867 Mbit/s.
Output voltage 24 - 57 V
Antenna width 2.16 cm
Antenna depth 1.55 cm
Antenna height 19.8 cm

Product type: Wi-Fi access point

Type: Cudy AP1300 Outdoor 867 Mbit/s Bianco Supporto Power over Ethernet (PoE)

Dual Band compatibility: 2.4 GHz and 5 GHz

Wi-Fi standard: IEEE802.11ac

Wi-Fi frequency band: 5 GHz
2.4 GHz

Wi-Fi transmission rate (max.): 1200 MBit/s

Network functions: Cudy Mesh support. Watchdog Planned restart

LAN data transfer rate: 10 / 100 / 1000 MBit/s

Interfaces: Gigabit LAN (1 Gbps)
RJ45
LAN (10/100 Mbps)

No. of LAN ports: 1 x

No. of Gigabit LANs: 1 x

Safety: WPA
WPA2
WPA2

WPS compatible: Yes

Width: 100 mm

Height: 240 mm

Depth: 53.7 mm

PoE: Passive
IEEE802.3af (15.4 W)
IEEE802.3at (30 W)

Bluetooth: No

Factory colour: White

: IP65

: 170 m

No. of antennas: 2 x

10/100/1000 Mbps ports: 1 x

Power consumption (ON): 11 W

Power supply (details): 100 - 240 V

CPU speed: 880 MHz

: 128 MB

Software included: Cudy software

Weight: 865 g

UKCA: yes

Operating temperature (T-T): -20 - 60 °C

Antenna included: yes

Storage relative humidity (H-H): 5 - 90 %

Channel bandwidth: 80 MHz

Number of users: 128 Benutzer

2.4 GHz: yes

5 GHz: yes

Dynamic DNS (DDNS): yes

Wireless isolation: yes

PoE adapter included: yes

Wi-Fi Multimedia (WMM)/(WME): yes

Number of SSID supported: 8

Products per shipping (inner) case: 20 Stück(e)

MIMO: yes

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Fast roaming: yes

Band steering: yes

Web-based management: yes

Rate limiting: yes

DHCP client: yes

Reset button: yes

Quick start guide: yes

BeamForming: yes

Parental control: yes

6 GHz: no

Flash memory: 16 MB

IGMP snooping: yes

IP address filtering: yes

Port forwarding: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Syslog: yes

Network address translation (NAT): yes

Storage temperature (T-T): -40 - 70 °C

Package weight: 865 g

Built-in processor: yes

Mounting kit: yes

Maximum outdoor range: 170 m

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3798907 cudy AP1300 OUTDOOR Cudy AP1300 Outdoor 867 Mbit/s Bianco Supporto Power over Ethernet (PoE) Wi-Fi access point 1200 MBi

Description

Fast dual band AC1200 WLAN

Thanks to MU-MIMO and dual band functionality the AC1200 WLAN access Point can connect over 30 devices simultaneously with minimum latency The maximum number of simultaneous connections per Access Point is 128 devices.

Improved WLAN coverage through beamforming

The WLAN coverage has been tested in four scenarios and optimized with the help of beamforming technology and two external antennas. If your area is too large for a single Access Point, you can extend your wireless network by adding another Cudy AP to a mesh network.

Works in rain, thunderstorm, dust, heat and cold

The Access Point is protected by an IP65-certified casing and thus protected against rain and dust with a vertical installation. It also features 4 kV flash/surge protection and 8 kV ESD protection for increased reliability during thunderstorms. Its operating temperature range is between -40 °C and 65 °C.

Mesh Networking

Seamless roaming for a smooth wireless experience

Enhance your visitors' Wi-Fi experience with a uniform WLAN name in your entire premises. Mesh technology allows you to enjoy uninterrupted roaming by automatically connecting your clients to the strongest WLAN node available, without any manual switchover.

Plug-and-play mesh installation

Easy plug-in and unplug for mesh setting

Connect the LAN port of the PoE adapter to a Cudy Mesh Access Point/Router/Mesh device/VPN router/AC to add the new Access Point to the mesh network. After the coupling you can disconnect it again from the mains or continue using the Ethernet connection. (Requires firmware version 1.15.28 or later; the second Cudy Mesh device must be purchased separately.)

The rest is left to adaptive routing.

Adaptive routing improves the ability of the system to capture the capacity used by each node. As soon as the backhaul path is overloaded by clients or affected by environmental influences, the system automatically switches to a better path to increase stability.

Cabling and physical installation guide

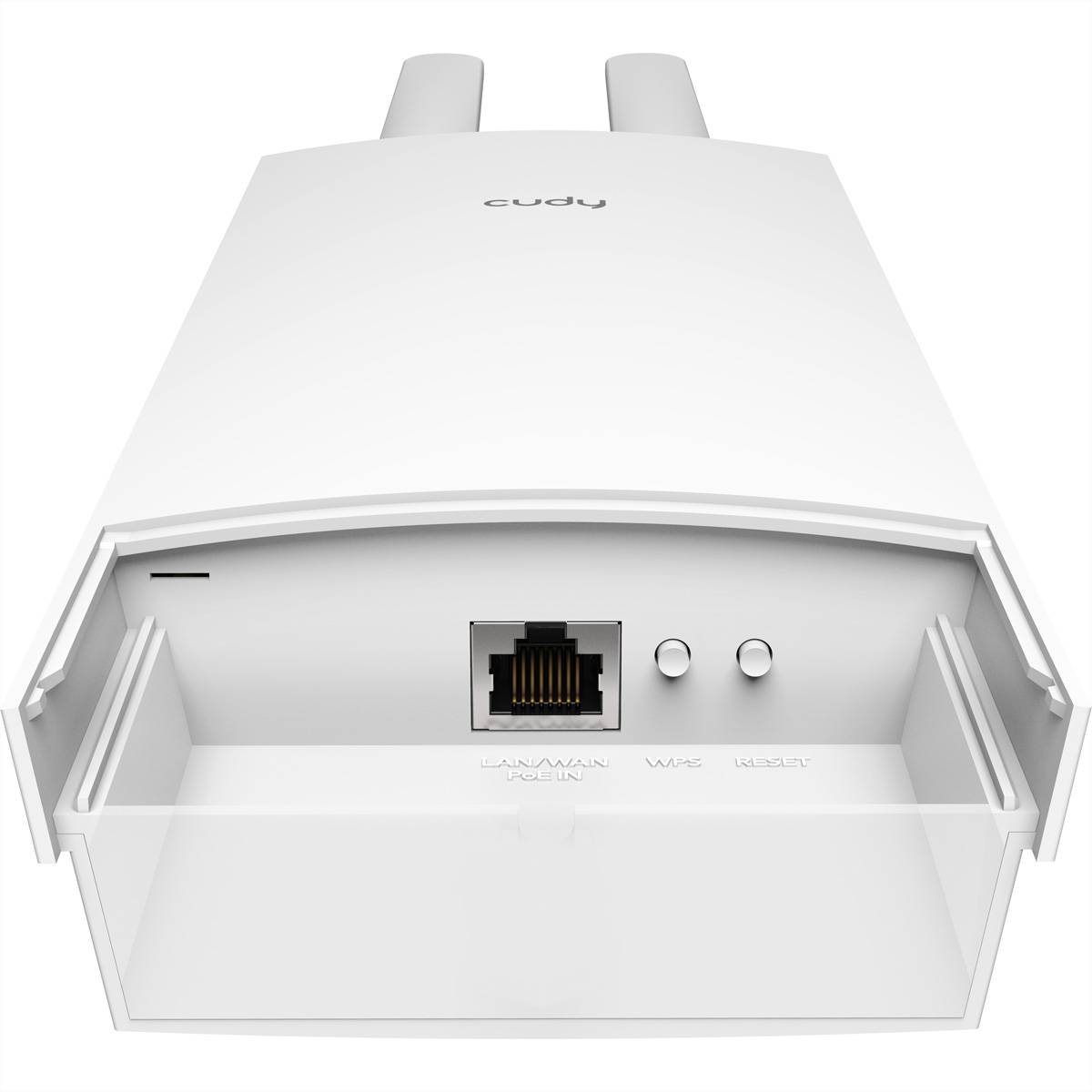

Gigabit port with two PoE options

Supports two power methods –

802.3at PoE (maximum power 18 W, no load 5 W)
48-57 V passive PoE (adapter included in delivery, not waterproof)
If you want to simplify cabling, we recommend using a PoE switch that can power multiple devices at the same time. For more information, see Cudy PoE Switches.

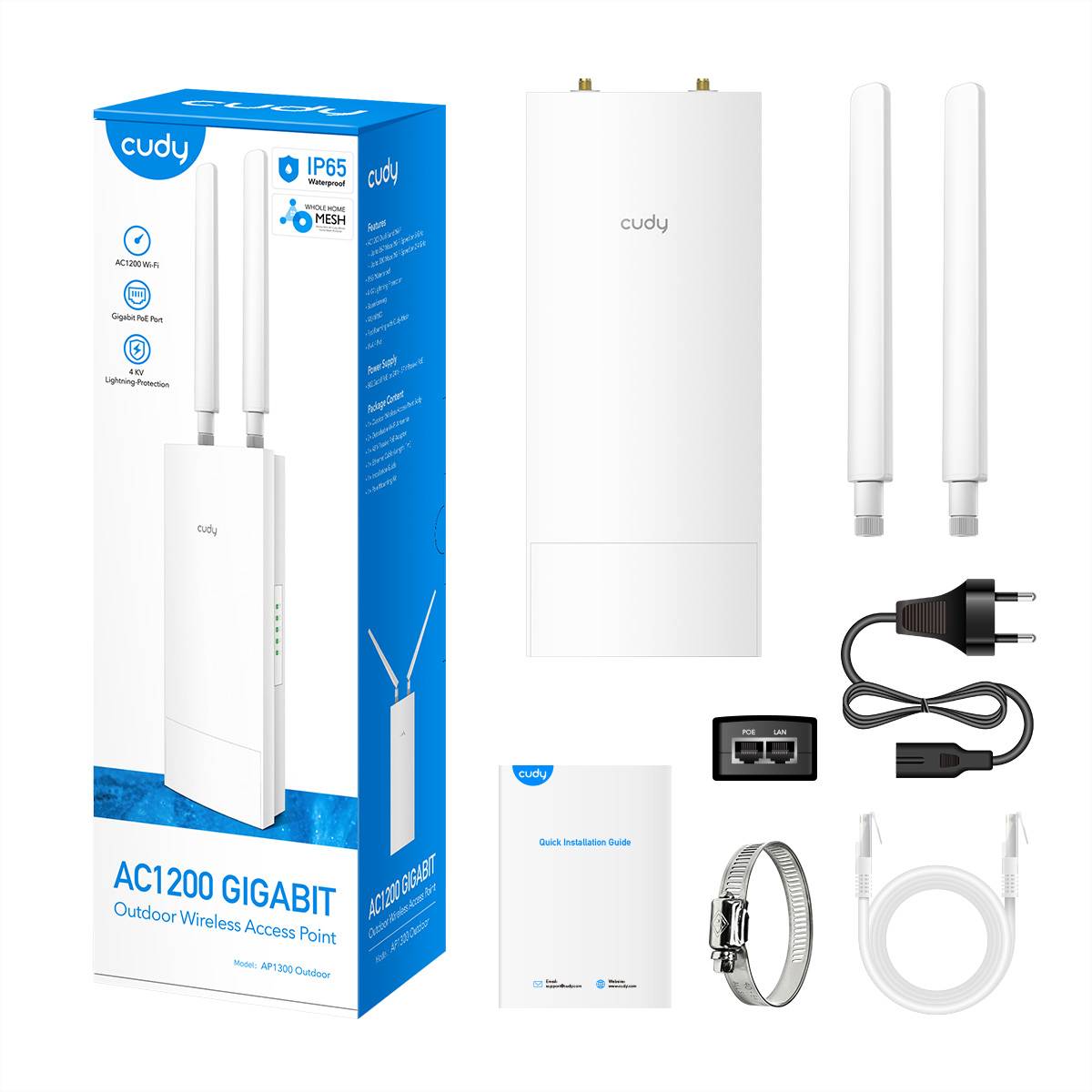

Mounting kit included

A mounting kit is included in the delivery and supports the following functions:

Wall mounting

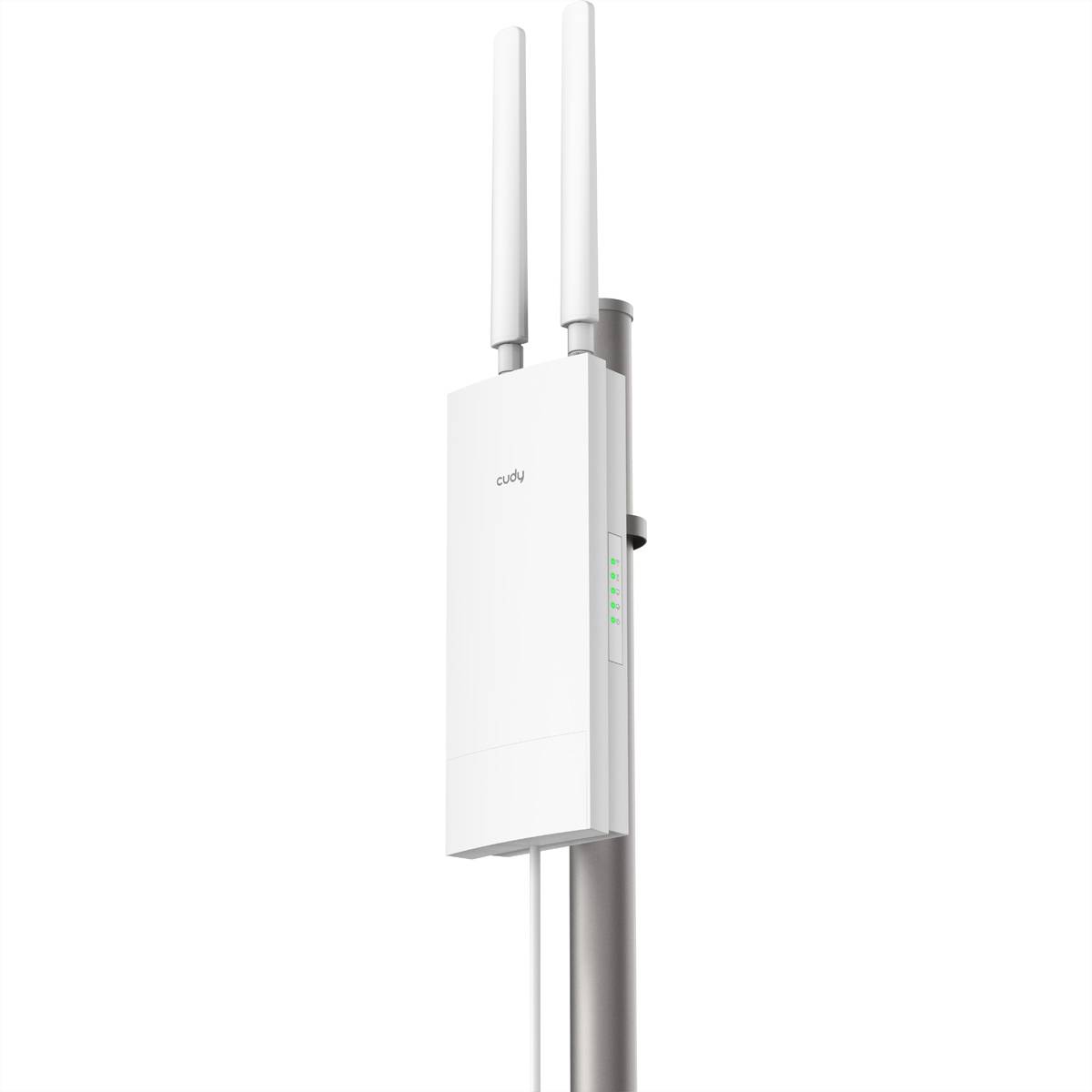

Mast mounting

Centralized accounts payable

With the Cudy AP Controller (model: C200P) up to 200 access points can be managed easily. This enables efficient batch configuration and firmware updates via a unified interface.
