Name: cudy Cudy AX3000 router wireless Gigabit Ethernet Dual-band (2.4 GHz/5 GHz) Bianco Router
Brand: cudy
SKU: 3798884

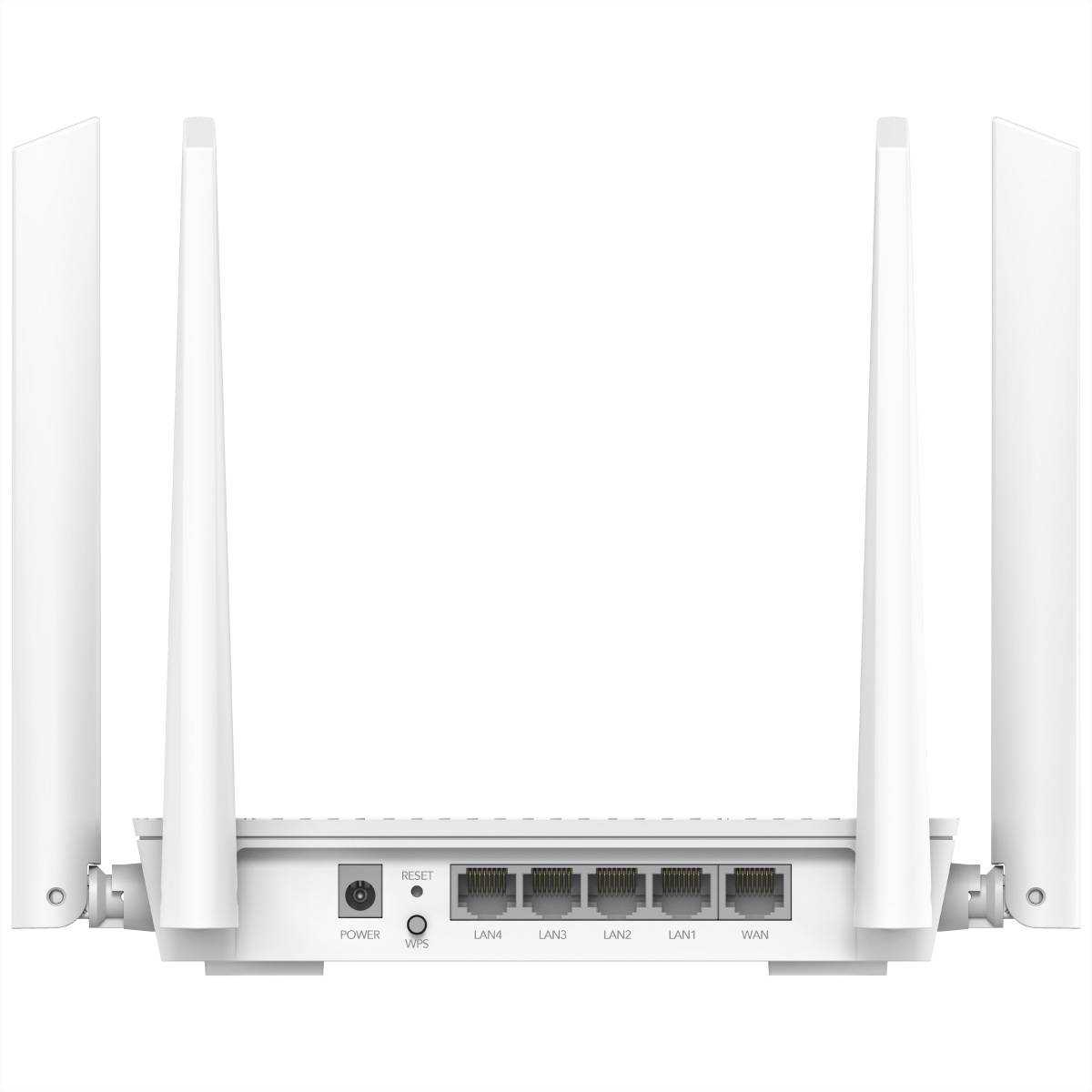

cudy Cudy AX3000 router wireless Gigabit Ethernet Dual-band (2.4 GHz/5 GHz) Bianco Router-0

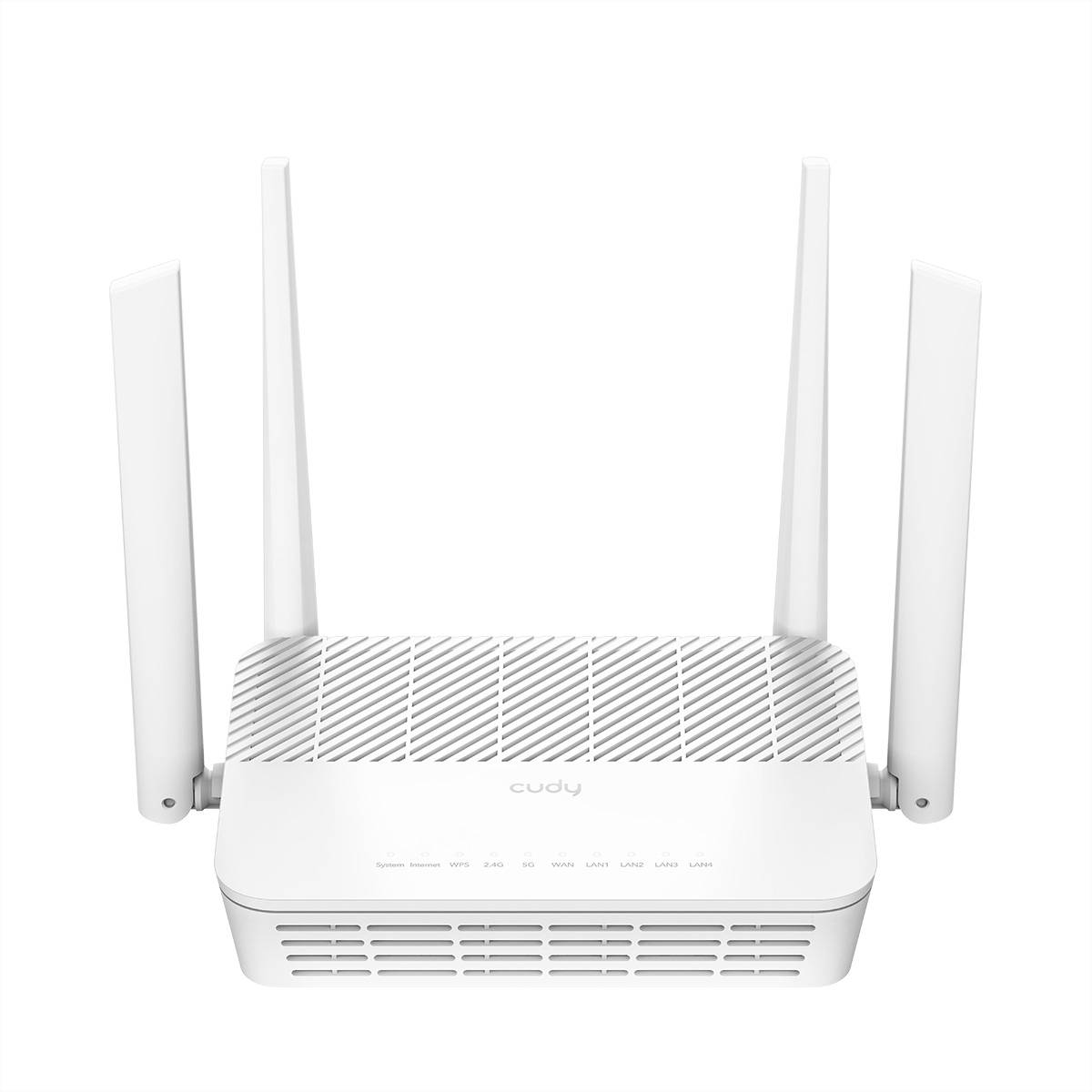

cudy Cudy AX3000 router wireless Gigabit Ethernet Dual-band (2.4 GHz/5 GHz) Bianco Router-1

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cudy AX3000 WLAN router Gigabit Ethernet Dual band (2.4 GHz/5 GHz) white

Desktop-/POLE-Router White
Dual band (2.4 GHz/5 GHz) Wi-Fi 6 (802.11ax) 2402 Mbit/s
Gigabit Ethernet
Ethernet WAN
Number of Ethernet LAN connections (RJ-45): 4
Web-based management Quality of Service (QoS) support
MIMO MU-MIMO TECHNOLOGY

Technical specifications

Wi-Fi band Dual (2.4 GHz/5 GHz)
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Product type: Desktop/pole router

Product type: Router

Type: Cudy AX3000 router wireless Gigabit Ethernet Dual-band (2.4 GHz/5 GHz) Bianco

WPS compatible: Yes

No. of antennas: 4 x

10/100/1000 Mbps ports: 4 x

Width: 173 mm

Height: 33 mm

Depth: 123.8 mm

Weight: 329.4 g

Factory colour: White

Processor cores (No.): 2 x

Memory techology: DDR3

Max. output current: 1 A

Output voltage: 12 V

Gain: 5.3 dBi

Power supply (details): 100 - 240 V

CPU speed: 1300 MHz

: 256 MB

Safety: WPA
WPA2
WPA2

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Ethernet LAN: yes

Storage relative humidity (H-H): 5 - 95 %

Firewall: yes

URL filtering: yes

Universal Plug and Play (UPnP): yes

Wall mountable: yes

Guest access: yes

DC-in jack: yes

Wake-on-LAN ready: yes

USB port: no

Filtering: yes

DSL WAN: no

Ethernet WAN: yes

SIM card slot: no

3G/4G USB modem compatibility: no

WLAN data transfer rate (max): 2402 Mbit/s

WLAN data transfer rate (first band): 574 Mbit/s

WLAN data transfer rate (second band): 2402 Mbit/s

Indication light: yes

MIMO: yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Stateful Packet Inspection (SPI): yes

Web-based management: yes

DHCP client: yes

DHCP server: yes

Reset button: yes

Manual: yes

Port triggering: yes

Number of guest networks (5 GHz): 1

Number of guest networks (2.4 GHz): 1

Schedule access: yes

MU-MIMO technology: yes

Intelligent Mesh technology: yes

Parental control: yes

Flash memory: 128 MB

Number of products included: 1 Stück(e)

IGMP snooping: yes

DMZ support: yes

IP address filtering: yes

Port forwarding: yes

Operating relative humidity (H-H): 10 - 90 %

DoS attack prevention: yes

Storage temperature (T-T): -40 - 70 °C

Package weight: 725 g

Built-in processor: yes

Number of simultaneously connected devices (max): 200

Documents & Downloads

Datasheet

Datasheet 3798884 cudy Cudy AX3000 router wireless Gigabit Ethernet Dual-band (2.4 GHz/5 GHz) Bianco Router

User & Safety Instructions

User & Safety Instructions 3798884 cudy Cudy AX3000 router wireless Gigabit Ethernet Dual-band (2.4 GHz/5 GHz) Bianco Router

Description

Powerful CPU transfers data in no time

The advanced 4 nm Dual core CPU delivers impressive performance, enabling immersive online gaming streams and simultaneous transmission of multiple 4K live feeds while maintaining responsiveness. 128 MB ROM offers space for more software functions, and 256 MB RAM enables the connection of more clients.

Super-fast WLAN in every corner

Super fast. Super responsive.

Fitted with the highest bandwidth of 160 MHz in Wi-Fi 6 and 1024-QAM, this router wirelessly achieves speeds of up to 3 Gbit/s, WAS is more than 2.5-times faster than the last generation AC 2x2 WiFi router.

More comprehensive reporting with more streams

Five streams – three in the 5 GHz band and two in the 2.4 GHz band – also improve signal transmission through obstacles. In addition, the high-performance antennas and beamforming reinforce the signal in every angle of your home. *Compared to a wireless router with four data streams and 4 dBi antennas.

Five Gigabit-connections

More devices, lower latency

Easier combinations in games

In addition to the 2T2R structure, a further 5 GHz stream improves the signal transfer by obstacles. The high performance antenna and beamforming reinforce the signal and reach every angle of your home.

More connections. Stay fast.

This router is designed for connection of 200 devices and offers a maximum capacity of 512 devices. It enables a more efficient network that charges faster and supports more devices without compromising performance.

Versatile functions

VPN server and client

Enables working from home and secure remote access through support of common VPN protocols. (Requires firmware version 1.16.1 or later)

DNS encryption

Protects your browser data from data leaks through DNS over TLS services with Cloudflare, Google, and Quad9.

Cudy Mesh Ready

Supports Cudy Mesh to enable seamless roaming throughout the house with other Cudy Mesh devices.

IPTV

Configure a specific network port for IPTV transmission to transmit TV services from the network operator to your TV.

Childproof

Set Wi-Fi schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.

This text is machine translated.
