cudy Cudy P5 router wireless Gigabit Ethernet Dual-band (2.4 GHz/5 GHz) 5G Nero Router
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
AX3000 Wi-Fi 6 5G nr indoor router,SA/NSA, sub 6GHz, 128MB flash, 256MB DDR, 4x GbE ports, Dual nano SIM slots, Zerotier/wire guard/OpenVPN/IPSec/...
- 5G relay 16 MX 3.4 GBP
- AX3000 Dual band Wi-Fi 6
- 2x Nano SIM slots (Redundant SIM)
- Cudy APP
Technical specifications
- Product group: Router
- Product type: WLAN router
- Colour, black
- SIM card slot: Yes
- Mobile phone standard 5G: Yes
- WLAN support: Yes
- Integrated switch: Yes
- LAN interfaces: 4
- Removable antenna: Yes
- WLAN access Point: Yes
- WLAN IEEE standard: 802.11ax/ac/b/g/n
- WiFi standard: WiFi 6 (IEEE 802.11ax)
- Wi-Fi frequency 2.4 GHz + 5 GHz
- WLAN band: Dual band
- Maximum data transfer rate of 3000 Mbps
- 2.4 GHz data transfer rate 567 Mbit/s.
- 5 GHz data transfer rate 2402 Mbit/s.
- Power supply: External power supply
- Mains connection: Device Euro-plug, type-C
- Min. Operating temperature 0 °C
- Max. operating temperature: 40 °C
- Min. Storage temperature: -40 °C
- Storage temperature max. 70 °C.
- Height: 49 mm
- Width 253 mm
- Depth: 153 mm
- Weight: 685 g
- Packaging height 80 mm
- Package width 250 mm
- Packaging depth 400 mm
- Package weight: 1,208 kg
- Gross weight: 1.208
- Product type
Router
- Type
Cudy P5 router wireless Gigabit Ethernet Dual-band (2.4 GHz/5 GHz) 5G Nero
- Width
390 mm
- Height
60 mm
- Depth
250 mm
- Weight
1.208
- Factory colour
Black
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3798897 cudy Cudy P5 router wireless Gigabit Ethernet Dual-band (2.4 GHz/5 GHz) 5G Nero Router
User & Safety Instructions
User & Safety Instructions 3798897 cudy Cudy P5 router wireless Gigabit Ethernet Dual-band (2.4 GHz/5 GHz) 5G Nero Router
Description

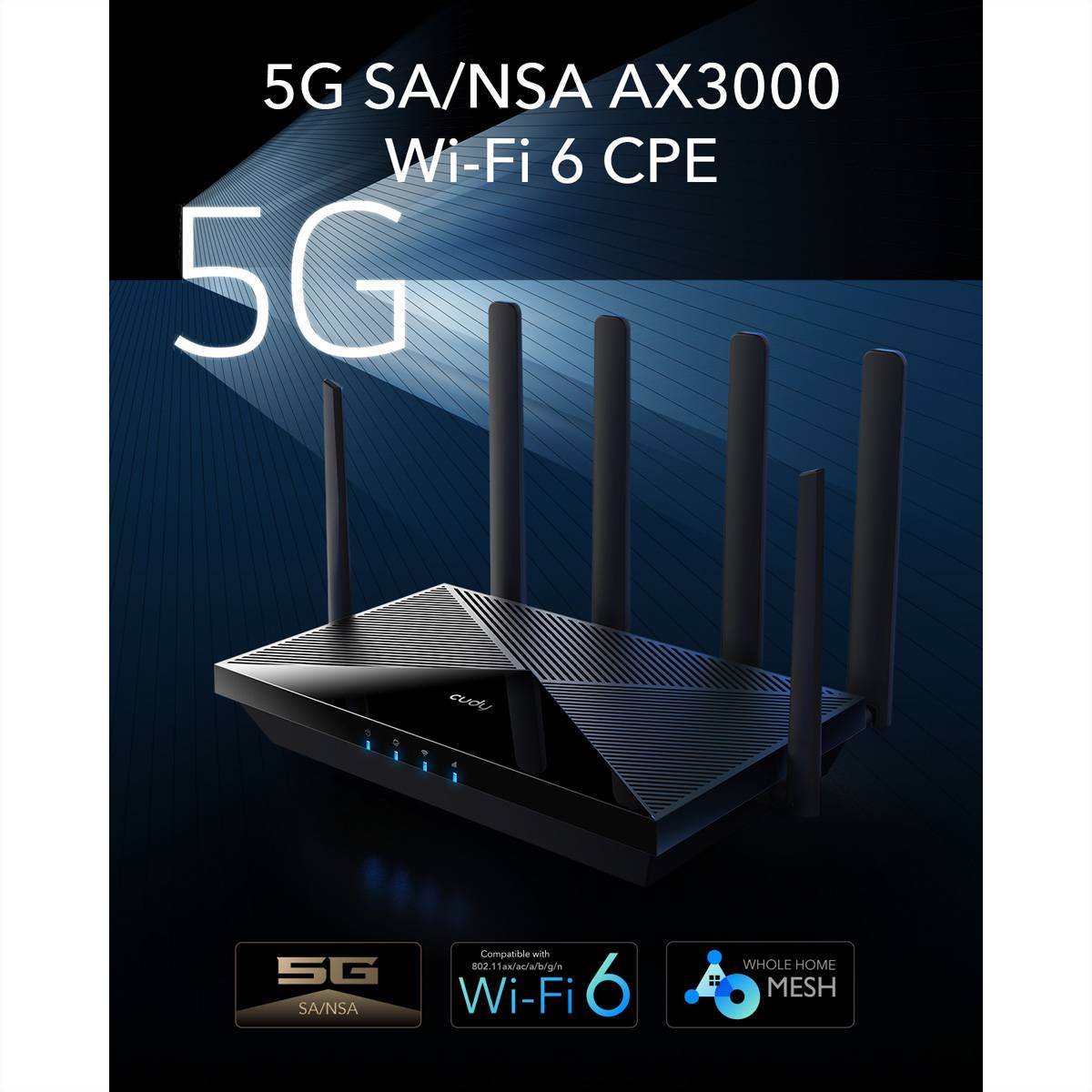

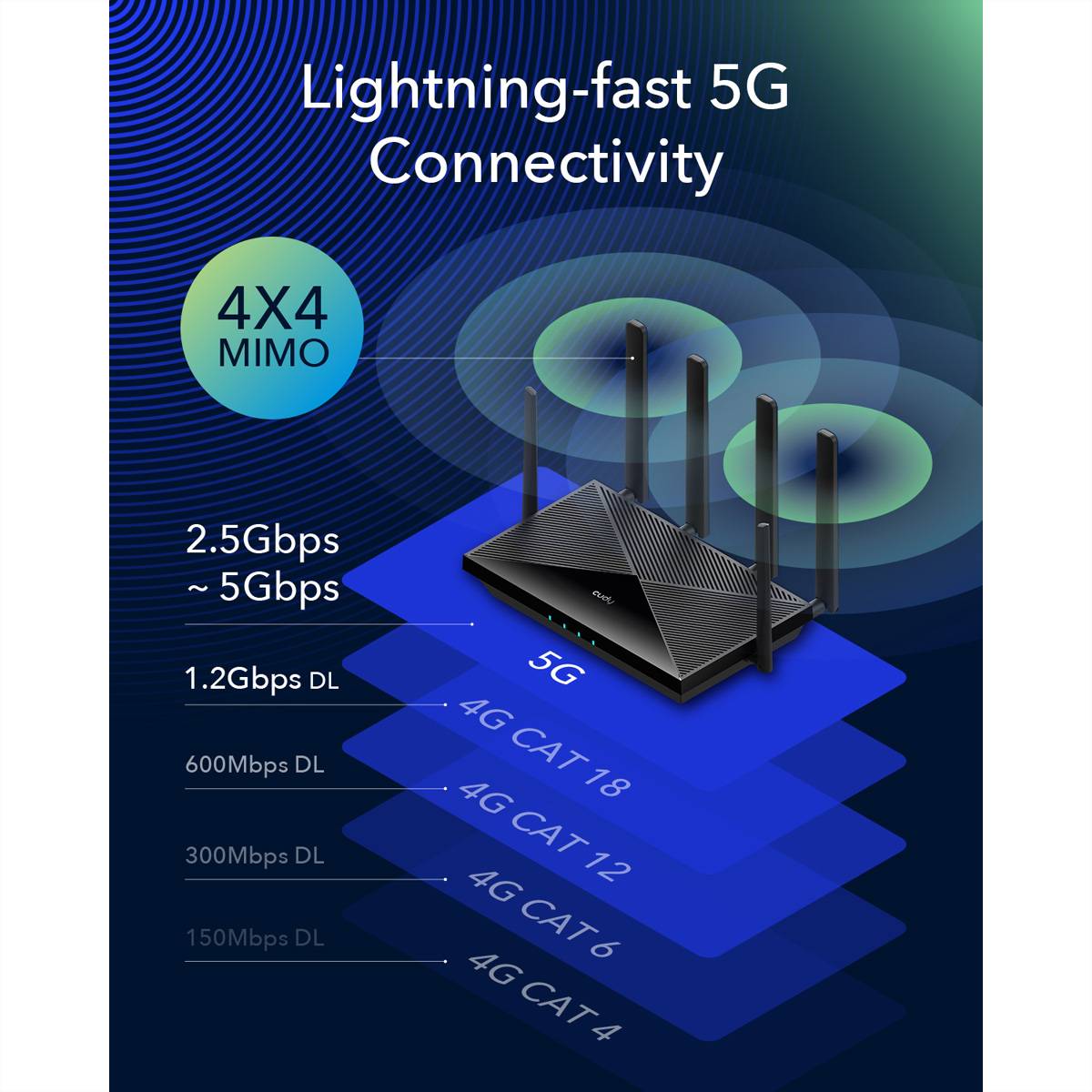

AX3000 Wi-Fi 6 5G nr indoor router,SA/NSA, sub 6GHz, 128MB flash, 256MB DDR, 4x GbE ports, Dual nano SIM slots, Zerotier/wire guard/OpenVPN/IPSec/L2TP/PPTP VPN, DNS via Cloudflare/Google/Quad9, DDNS, SMS, Band lock, TTL setting, TR069/TR098/TR111/TR181, Cudy Mesh support A 5G WiFi 6 router that uses the 3GPP Release 16 standard at a maximum download speed of 3.4 Gbps. It has full Qualcomm solutions, dual SIM slots and an AX3000 WiFi 6 with high capacity. 5G NR SA/NSA Wi-Fi Router . AX3000 Dual band Wi-Fi 6 . Qualcomm Chipset . Dual nano SIM slots (Redundant SIM). 4x Gigabit Ethernet ports (WAN failover) . 4x removable mobile radio antennas . PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier VPN
This text is machine translated.
Features

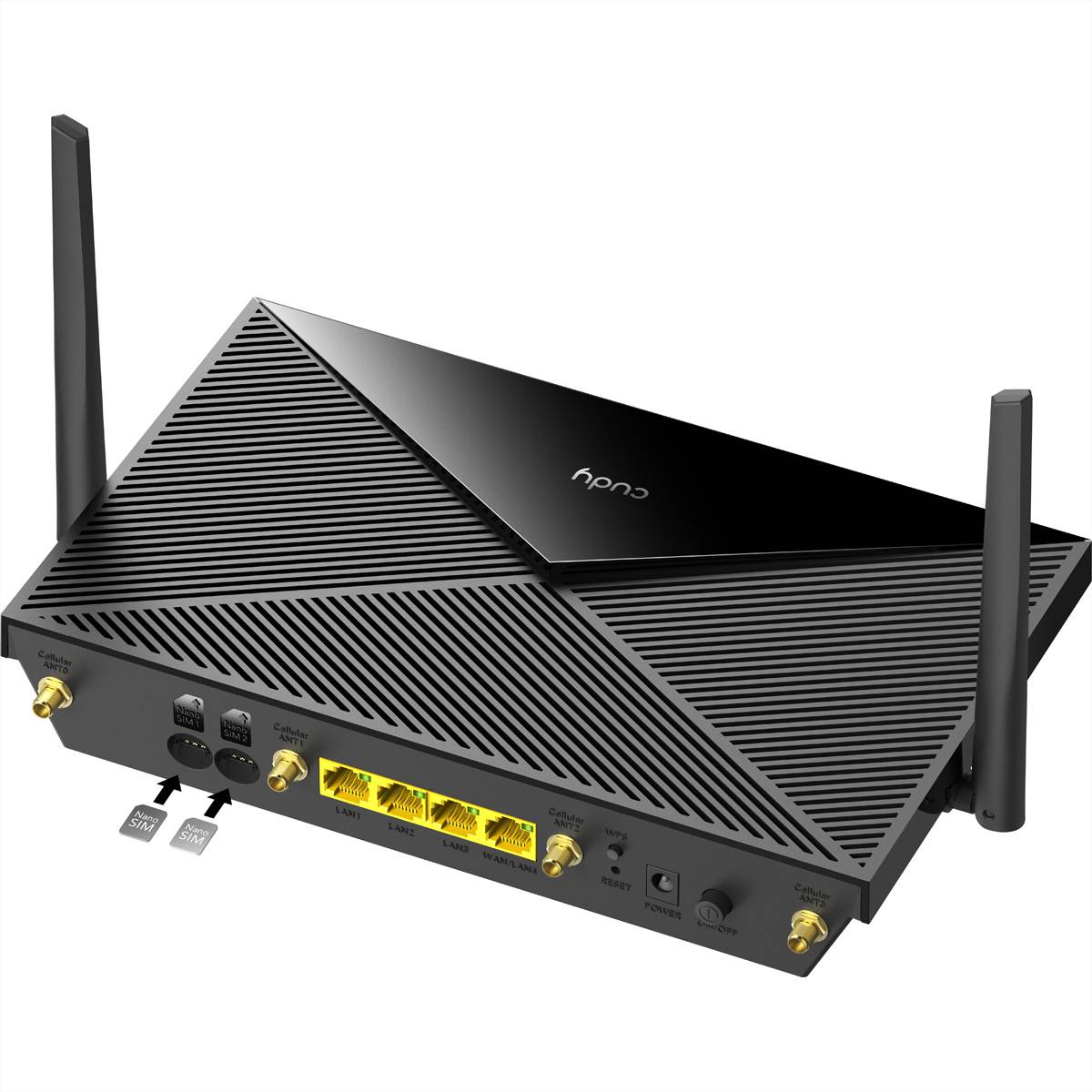

- Cudy P5 – wireless router – WWAN – Wi-Fi 6 – 5G, 4G – desktop, wall-mounted
- Device Type : Wireless Routers - Wireless Mobile Modem - 4-Port Switch (Integrated)
- Housing type : Desktop, wall-mounted
- Cell protocol : 5G, 5G sub-6 GHz, 5G nr, FDD LTE, WCDMA, TDD LTE, 4G LTE
- Generation : 5G, 4G
- Mobile radio frequency band : 5G N1, 5G N3, 5G n5, 5G n7, 5G n8, 5G n20, 5G N28, 5G N38, 5G n40, 5G N41, 5G N71, 5G n75, 5G N76, 5G N77, 5G n78, LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B32, LTE B71, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, WCDMA B1, WCDMA B5, WCDMA B8
- WAN Ports No. : 1
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6)
- Frequency band : 2.4 GHZ / 5 GHz
- Data transfer rate : 3.4 Gbps
- Performance : Maximum data rate (2.4 GHz): 574 Mbps
- Maximum data rate (5 GHz): 2402 Mbit/s.
- Channel bandwidth 160 MHz
- Capacity : Streams: 4
- Network/transport protocol : IPv4, IPv6, DHCPv6, PPTP, L2TP, OpenVPN, wire guard, IPSec, DS-Lite
- Routing Protocol : Static IP routing, IGMP
- REMOTE MANAGEMENT PROTOCOL : TR-069, TR-098, TR-111, TR-181
- Features : ZeroTier VPN client support, address reservation, DHCP client, DHCP server, DMZ support, Dynamic DNS, dynamic IP mode, guest network, NAT port redirection, NAT support, port control, static IP mode, remote access management, DHCP IPv6 relay, operating mode "Access Point", 2T2R MIMO technology, beamforming technology, reset button, WPS button, Dual-band, MU-MIMO technology, VPN client, VPN server, Backhaul technology, WISP mode, APP-controlled, backup/restore, configuration backup/update/restore default via web, domain filter, DoS protection, firmware can be updated, H.323 pass-through, IGMP proxy, IGMP snooping, IP address filtering, IP MAC integration, IPSec pass-through, IPTV support, L2TP transit, MAC address filter, OpenVPN client, override function, PPTP Pass-Through, Remote Firmware Upgrade, RTSP Pass-Through, SIP Pass-Through, SPIF, TFTP support, VLAN support, VLAN tagging, WOL, Wi-Fi schedule, WireGuard, 4x4 MIMO technology, CPE VLAN
- Product certifications : IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax and UPnP
- Power supply : AC 100-240 V (50/60 Hz)
- Dimensions (width x depth x height): 25.3 cm x 15.25 cm x 4.82 cm
- Weight 670 g
- System Requirements : Android, Apple Mac OS, Microsoft Windows
- Localization : Europe
Scope of delivery
- Router, antennas, power supply, instructions
