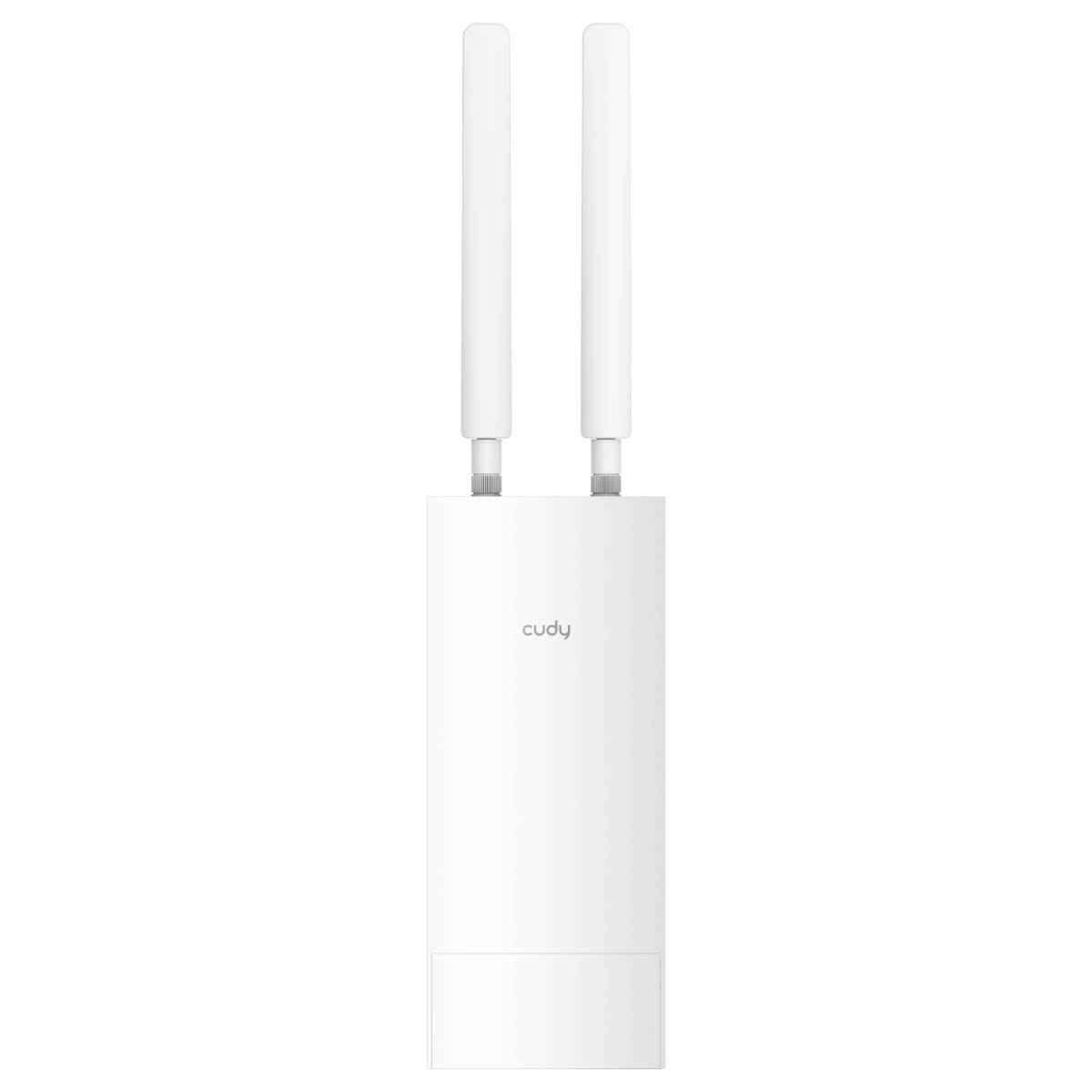

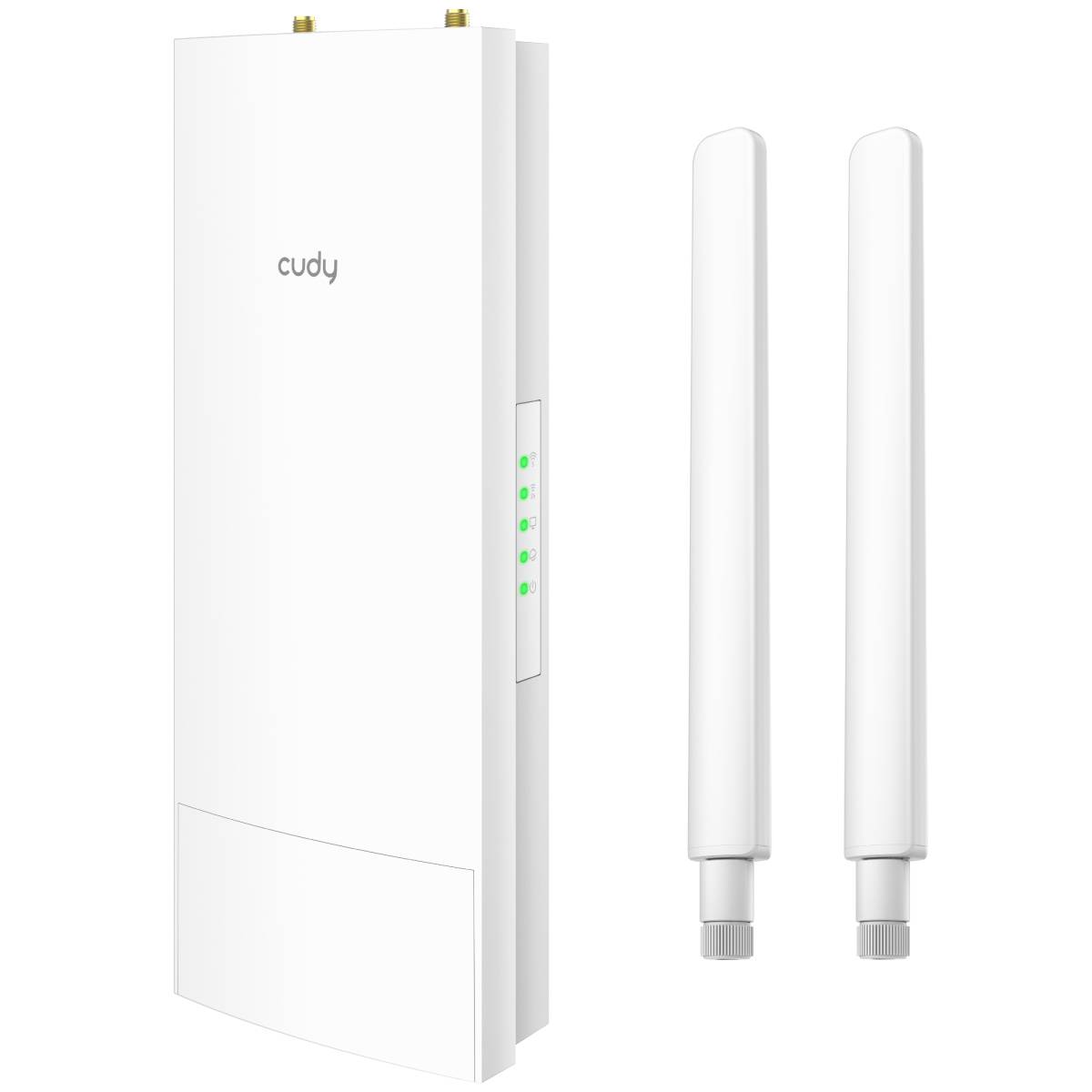

cudy CUDY RE1200 Outdoor Wi-Fi Repeater AC120 Wi-Fi repeater

A wide-range RE or Fit AP

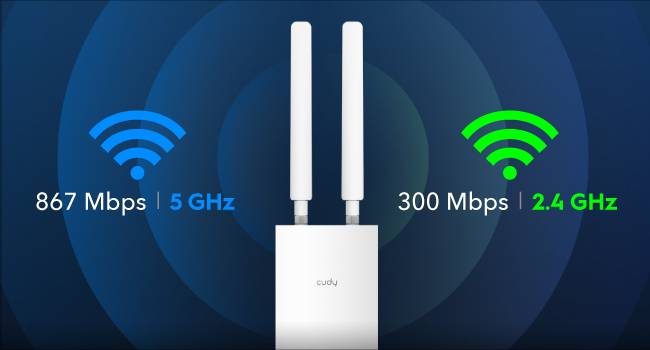

Extend Wi-Fi with AC1200

Thanks to MU-MIMO and dual band functionality the AC1200 Wi-Fi RE/AP can be connected simultaneously with minimum latency of 30 devices. The maximum number of simultaneous connections per AP/RE is 128 devices. A standalone mode is not possible; a gateway is required.


Improved WLAN coverage through beamforming

The WLAN coverage has been tested in four scenarios and optimized with the help of beamforming technology and two external antennas. If your area is too large for a single Access Point, you can extend your wireless network by adding another Cudy RE/AP to a mesh network.


Works in rain, thunderstorm, dust, heat and cold

The RE/AP is protected by an IP65-certified housing and thus protected against rain and dust when installed vertically. It also features 4 kV flash/surge protection and 8 kV ESD protection for increased reliability during thunderstorms. The operating temperature range is between -40 °C and 65 °C.


Cudy Mesh Satellite



Seamless roaming for a smooth wireless experience

Improve your visitors' wireless experience by using a common WLAN name for your entire building. Place this access Point/remote router behind a mesh router/access controller and enjoy uninterrupted roaming as clients seamlessly connect to the strongest available WLAN node – without any manual switching.


Plug-and-play mesh installation



Easy plug-in and unplug for mesh setting

Connect the PoE adapter's LAN connector to a Cudy Mesh Access Point/Router/AC to integrate the new RE/AP into the mesh network. After the coupling you can disconnect it again from the mains or continue using the Ethernet connection.


The rest is left to adaptive routing.

Adaptive routing improves the ability of the system to capture the capacity used by each node. As soon as the backhaul path is overloaded by clients or affected by environmental influences, the system automatically switches to a better path to increase stability.


Cabling and physical installation guide



Ethernet port with PoE

Adapter included in delivery for —

24 V passive PoE (adapter included in delivery, not waterproof)

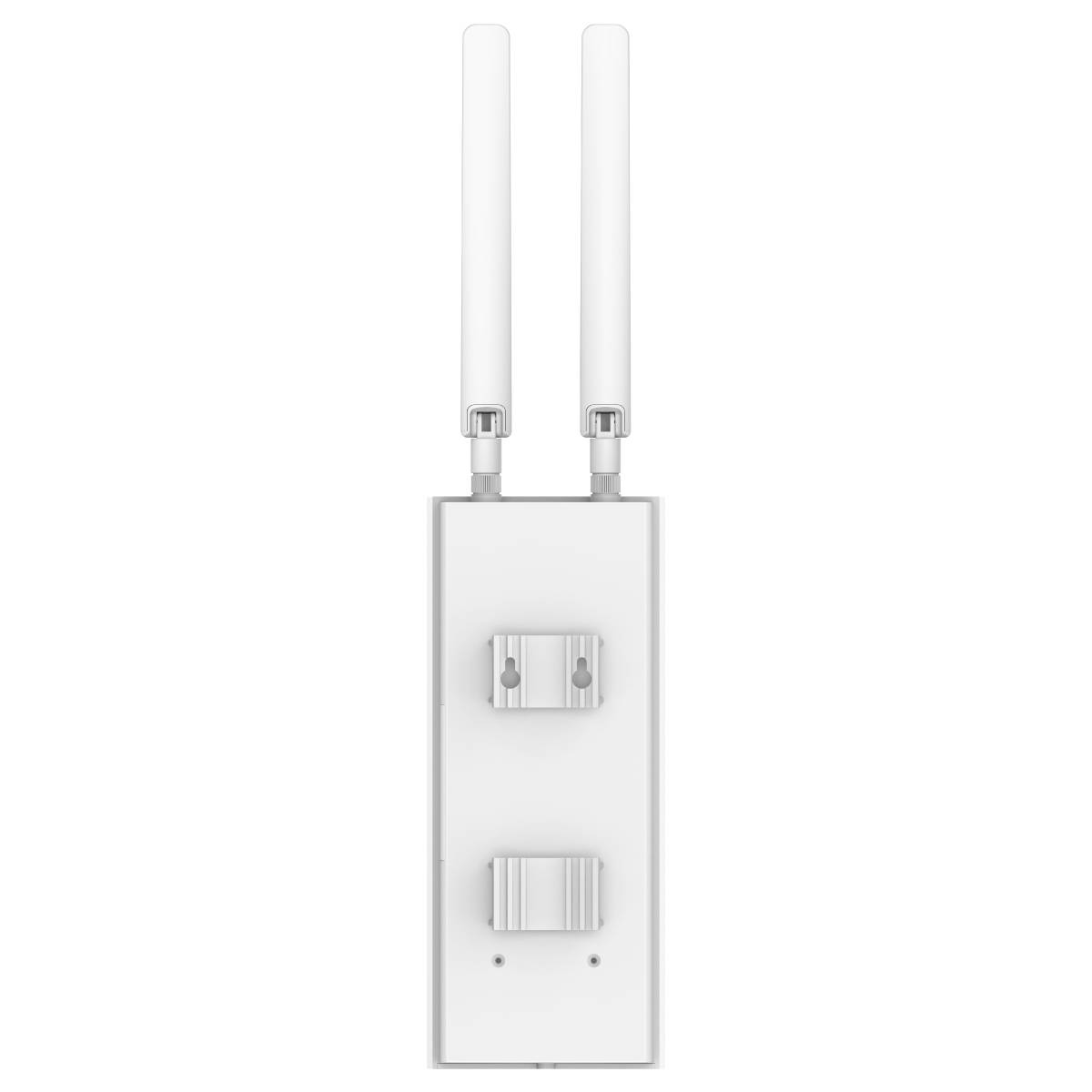

Mounting kit included

A mounting kit is included in the delivery and supports the following functions:

Wall mounting
Mast mounting
