Name: cudy CUDY Router
Brand: cudy
SKU: 3798934

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

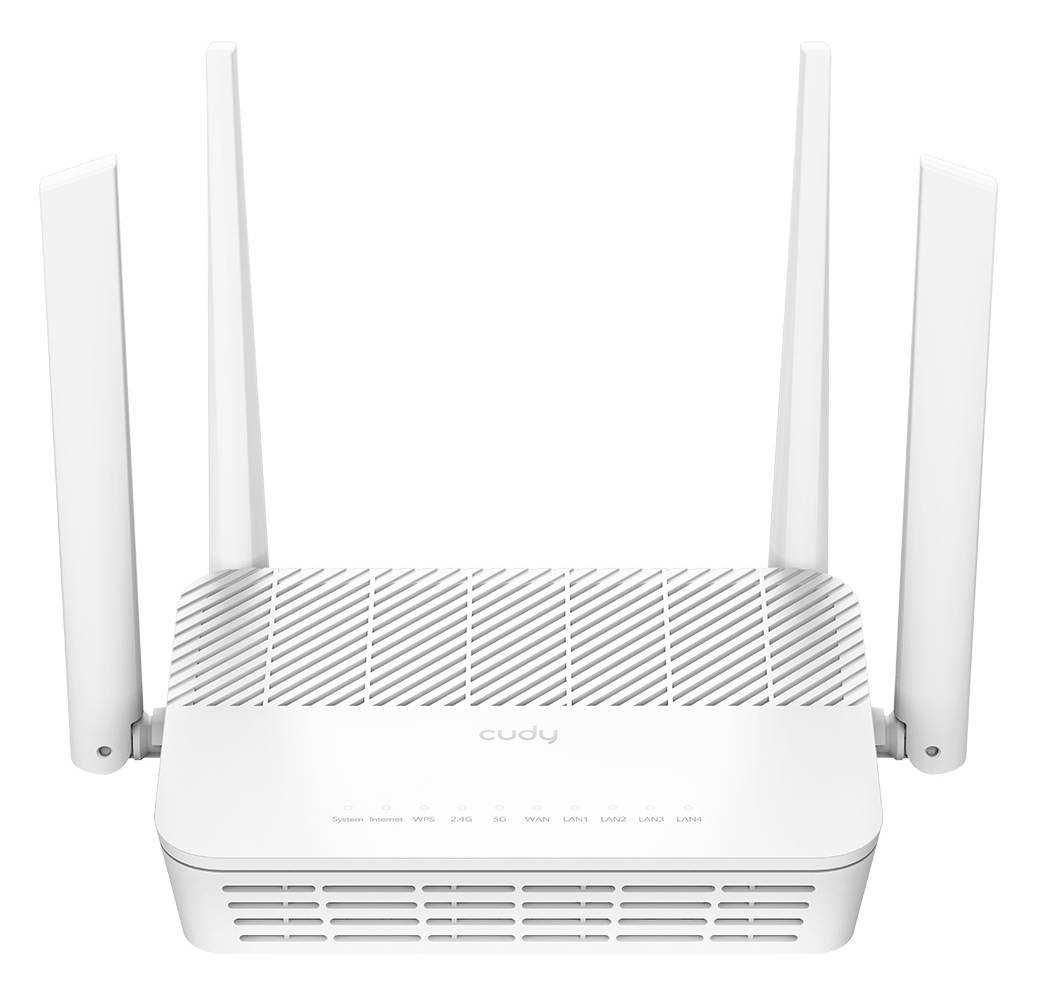

Cudy WR3000P WLAN router 2.5 Gigabit Ethernet Dual band (2.4 GHz/5 GHz) white

White tabletop router
Dual band (2.4 GHz/5 GHz) Wi-Fi 6 (802.11ax) 2402 Mbit/s
2.5 Gigabit Ethernet
Ethernet WAN
Number of Ethernet LAN connections (RJ-45): 4
Web-based management
MU-MIMO technology

Technical specifications

Wi-Fi band Dual (2.4 GHz/5 GHz)
WLAN standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Product type: Tabletop router

Product type: Router

Type: CUDY

WPS compatible: Yes

No. of antennas: 4 x

10/100/1000 Mbps ports: 4 x

Width: 173 mm

Height: 33 mm

Depth: 123.8 mm

Weight: 360.6 g

Factory colour: White

Max. output current: 1 A

Output voltage: 12 V

Gain: 5.3 dBi

Safety: WPA
WPA2
WPA2

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Ethernet LAN: yes

Storage relative humidity (H-H): 5 - 95 %

Firewall: yes

URL filtering: yes

Universal Plug and Play (UPnP): yes

Guest access: yes

Dynamic DNS (DDNS): yes

Wi-Fi Multimedia (WMM)/(WME): yes

DC-in jack: yes

Filtering: yes

DSL WAN: no

Ethernet WAN: yes

SIM card slot: no

3G/4G USB modem compatibility: no

WLAN data transfer rate (max): 2402 Mbit/s

WLAN data transfer rate (first band): 574 Mbit/s

WLAN data transfer rate (second band): 2402 Mbit/s

MAC address filtering: yes

Web-based management: yes

DHCP client: yes

DHCP server: yes

Reset button: yes

Port triggering: yes

Bandwidth control: yes

Number of guest networks (5 GHz): 1

Number of guest networks (2.4 GHz): 1

MU-MIMO technology: yes

Parental control: yes

Number of products included: 1 Stück(e)

IGMP snooping: yes

DMZ support: yes

IP address filtering: yes

Port forwarding: yes

Operating relative humidity (H-H): 10 - 90 %

Storage temperature (T-T): -40 - 70 °C

Package weight: 748.6 g

Mac compatibility: yes

Documents & Downloads

Datasheet

Datasheet 3798934 cudy CUDY Router

User & Safety Instructions

User & Safety Instructions 3798934 cudy CUDY Router

Description

Ultimate Hardware

Powerful CPU and high RAM for more devices

The 4 nm Dual core CPU provides fast and efficient gaming and multi-stream 4K processing. 128 MB ROM and 512 MB RAM enable more functions and the use of several connected devices without loss of performance.

Super-fast WLAN in every corner

Super fast. Super responsive.

Fitted with the highest bandwidth of 160 MHz in Wi-Fi 6 and 1024-QAM, this router wirelessly achieves speeds of up to 3 Gbit/s, WAS is more than 2.5-times faster than the last generation AC 2x2 WiFi router.

More comprehensive reporting with more streams

Five streams – three in the 5 GHz band and two in the 2.4 GHz band – also improve signal transmission through obstacles. In addition, the high-performance antennas and beamforming reinforce the signal in every angle of your home. *Compared to a wireless router with four data streams and 4 dBi antennas.

More devices, lower latency

Easier combinations in games

In addition to the 2T2R structure, a further 5 GHz stream improves the signal transfer by obstacles. The high performance antenna and beamforming reinforce the signal and reach every angle of your home.

More connections. Stay fast.

This router is designed for connection of 200 devices and offers a maximum capacity of 512 devices. It enables a more efficient network that charges faster and supports more devices without compromising performance.

USB 2.0 port

Set up a lightweight NAS in your home

Convert the USB-connection in your personal mini-NAS – store, stream and share the files easily and quickly in your home network.

Versatile functions

VPN server and client

Enables working from home and secure remote access through support of common VPN protocols. (Requires firmware version 1.16.1 or later)

DNS encryption

Protects your browser data from data leaks through DNS over TLS services with Cloudflare, Google, and Quad9.

Cudy Mesh Ready

Supports Cudy Mesh to enable seamless roaming throughout the house with other Cudy Mesh devices.

IPTV

Configure a specific network port for IPTV transmission to transmit TV services from the network operator to your TV.

This text is machine translated.
