Name: cudy RE1200 RE1200 - 110 - 240 V - 0 - 50 °C - 10 - 90% - 1 Stück(e) Mesh network
Brand: cudy
SKU: 3798893

cudy RE1200 RE1200 - 110 - 240 V - 0 - 50 °C - 10 - 90% - 1 Stück(e) Mesh network-0

cudy RE1200 RE1200 - 110 - 240 V - 0 - 50 °C - 10 - 90% - 1 Stück(e) Mesh network-1

cudy RE1200 RE1200 - 110 - 240 V - 0 - 50 °C - 10 - 90% - 1 Stück(e) Mesh network-2

cudy RE1200 RE1200 - 110 - 240 V - 0 - 50 °C - 10 - 90% - 1 Stück(e) Mesh network-3

cudy RE1200 RE1200 - 110 - 240 V - 0 - 50 °C - 10 - 90% - 1 Stück(e) Mesh network-4

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

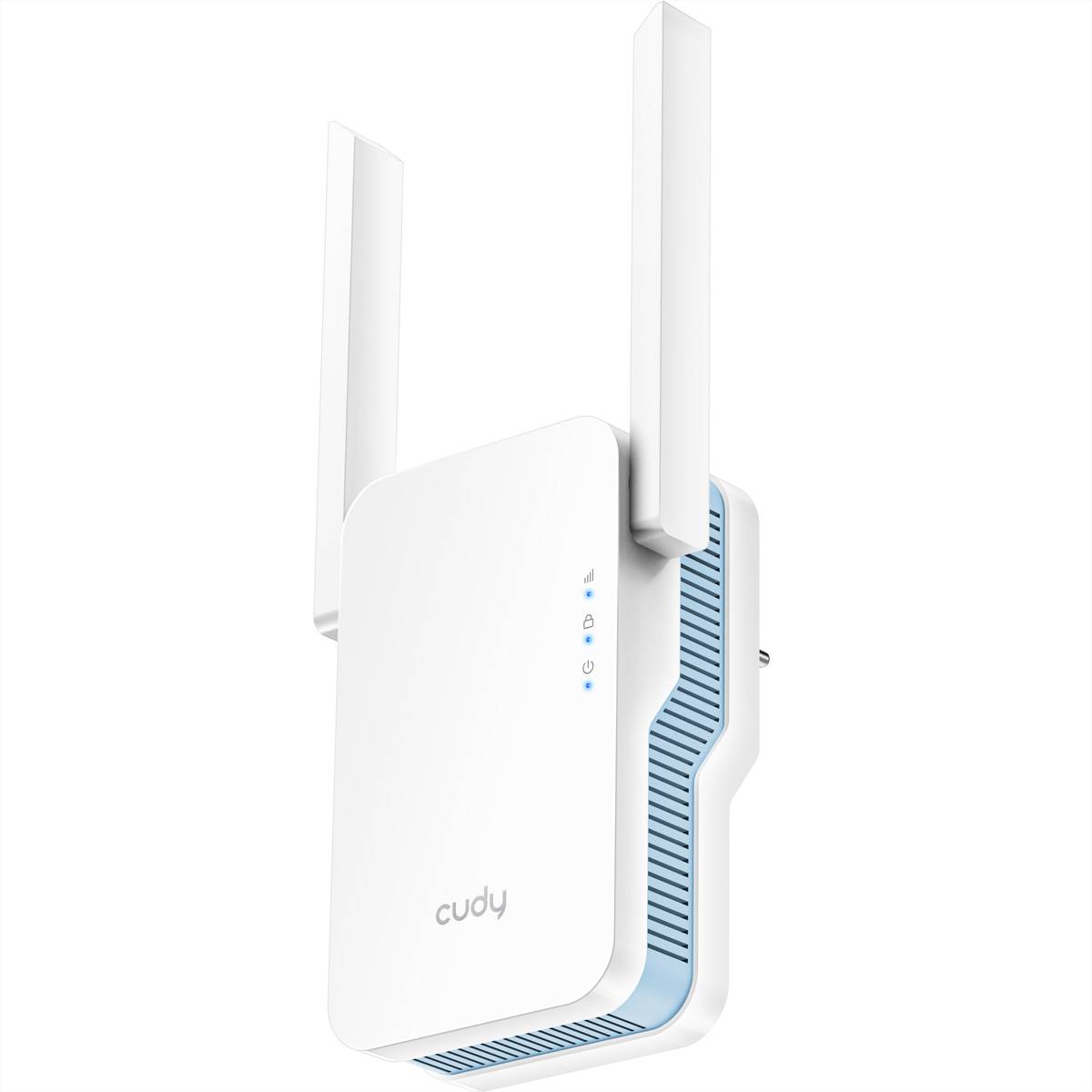

Cudy RE1200 network expansion module network repeater white 10, 100 Mbit/s

Network repeater 150 m 867 Mbit/s
WLAN Dual band (2.4 GHz/5 GHz) 867 Mbit/s 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
White

Technical specifications

Data transfer rate 867 Mbit/s.
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Wi-Fi band Dual (2.4 GHz/5 GHz)

Product type: Mesh network

Type: RE1200 - 110 - 240 V - 0 - 50 °C - 10 - 90% - 1 Stück(e)

Safety: WPA
WPA2
WPA2

WPS compatible: Yes

Width: 80 mm

Height: 129.6 mm

Depth: 48.6 mm

Factory colour: White

Type: Network repeater

No. of antennas: 2 x

10/100/1000 Mbps ports: 1 x

Gain: 5 dBi

Power supply (details): 110 - 240 V

Weight: 210 g

Wi-Fi: Yes

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Storage relative humidity (H-H): 5 - 95 %

Quantity per pack: 1 Stück(e)

WLAN data transfer rate (first band): 300 Mbit/s

WLAN data transfer rate (second band): 867 Mbit/s

Reset button: yes

Manual: yes

MU-MIMO technology: yes

Operating relative humidity (H-H): 10 - 90 %

Storage temperature (T-T): -40 - 70 °C

Maximum transfer distance: 150 m

Documents & Downloads

Datasheet

Datasheet 3798893 cudy RE1200 RE1200 - 110 - 240 V - 0 - 50 °C - 10 - 90% - 1 Stück(e) Mesh network

User & Safety Instructions

User & Safety Instructions 3798893 cudy RE1200 RE1200 - 110 - 240 V - 0 - 50 °C - 10 - 90% - 1 Stück(e) Mesh network

Description

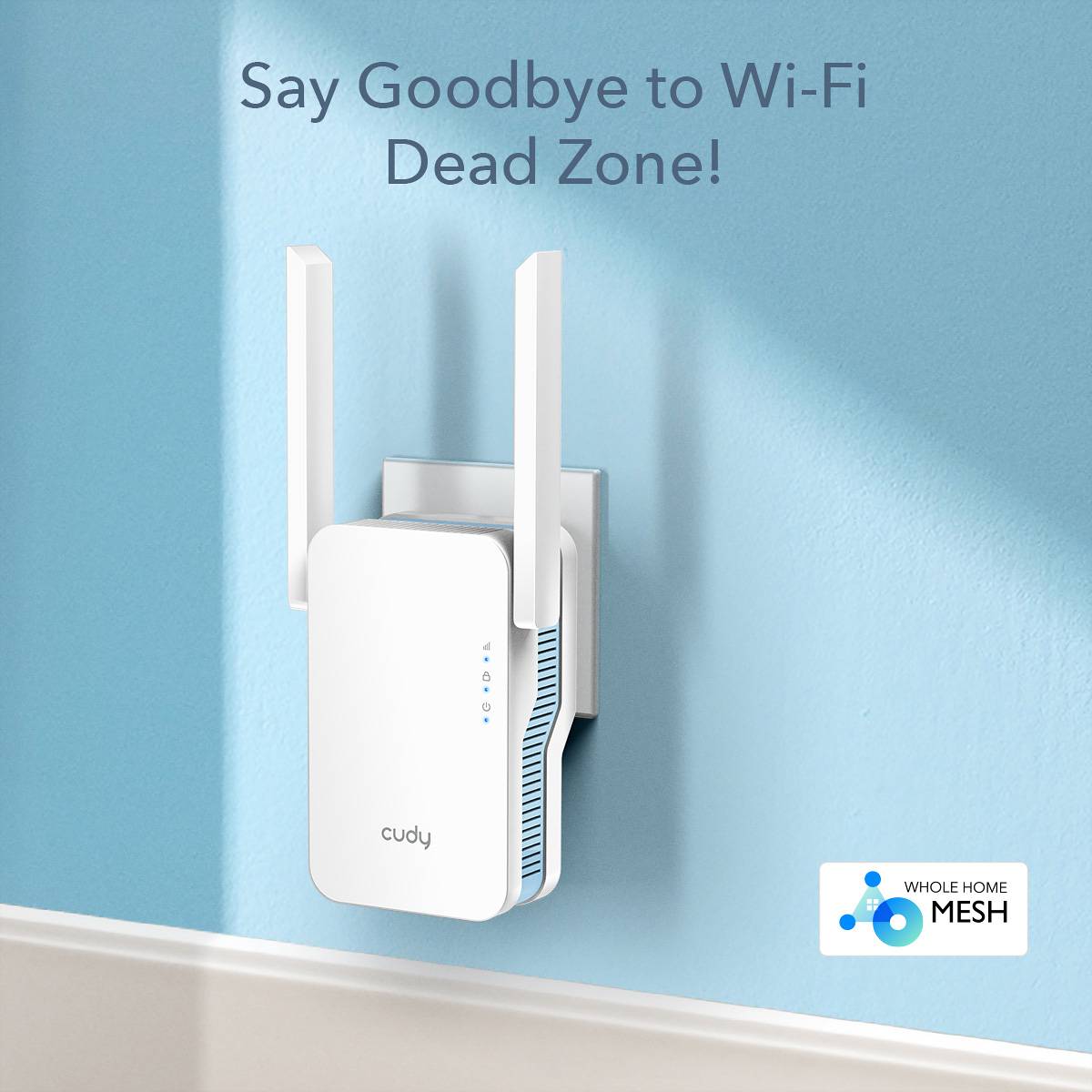

Improve your existing WLAN coverage

Are you tired of getting around with weak signals and frustrating dead spots? The WLAN repeater RE1200 extends your range and provides fast and stable Internet in any angle of your home.

Pure any router. Stronger WLAN.

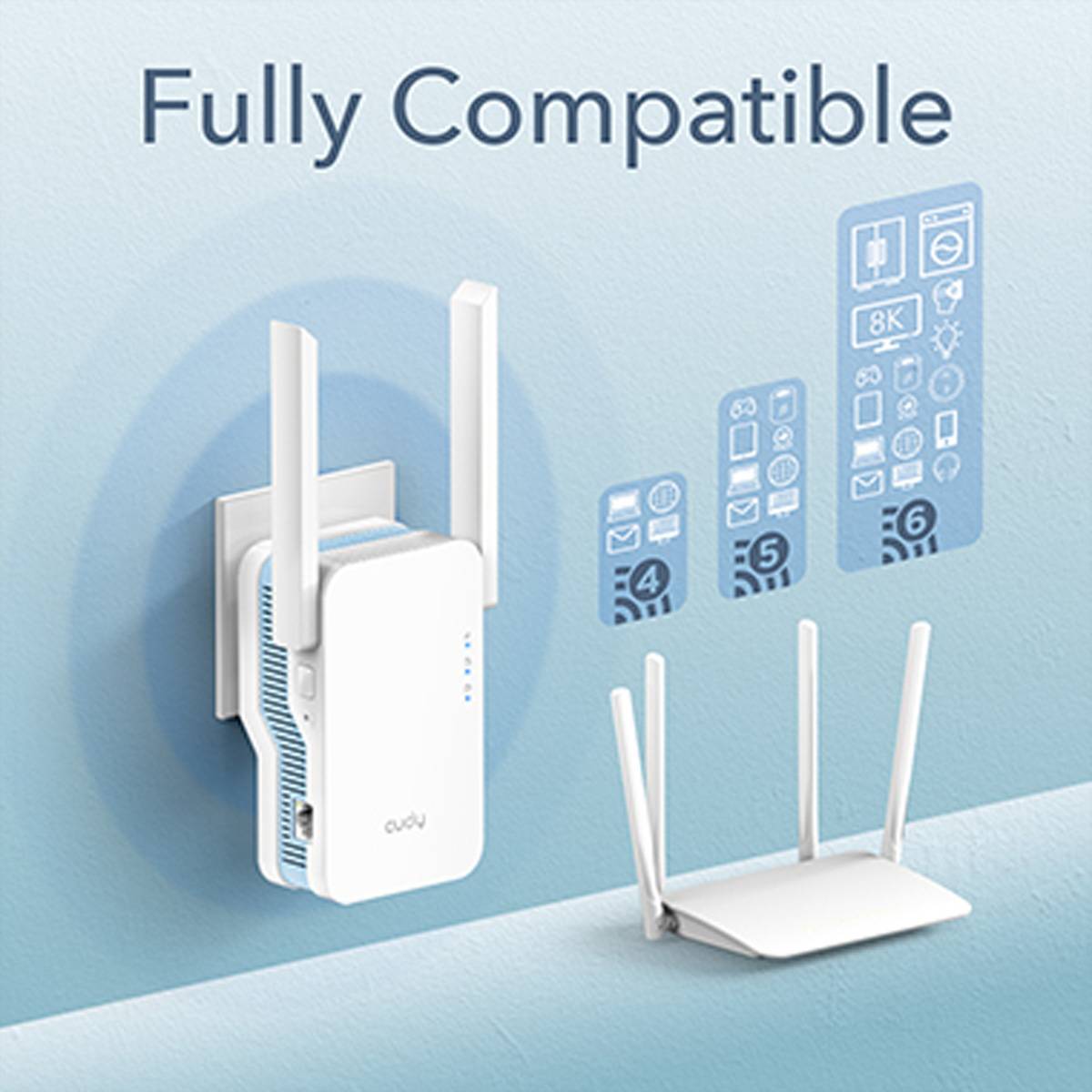

Works with any router

Universally compatible with all routers, this ensures an easy extension of your network.

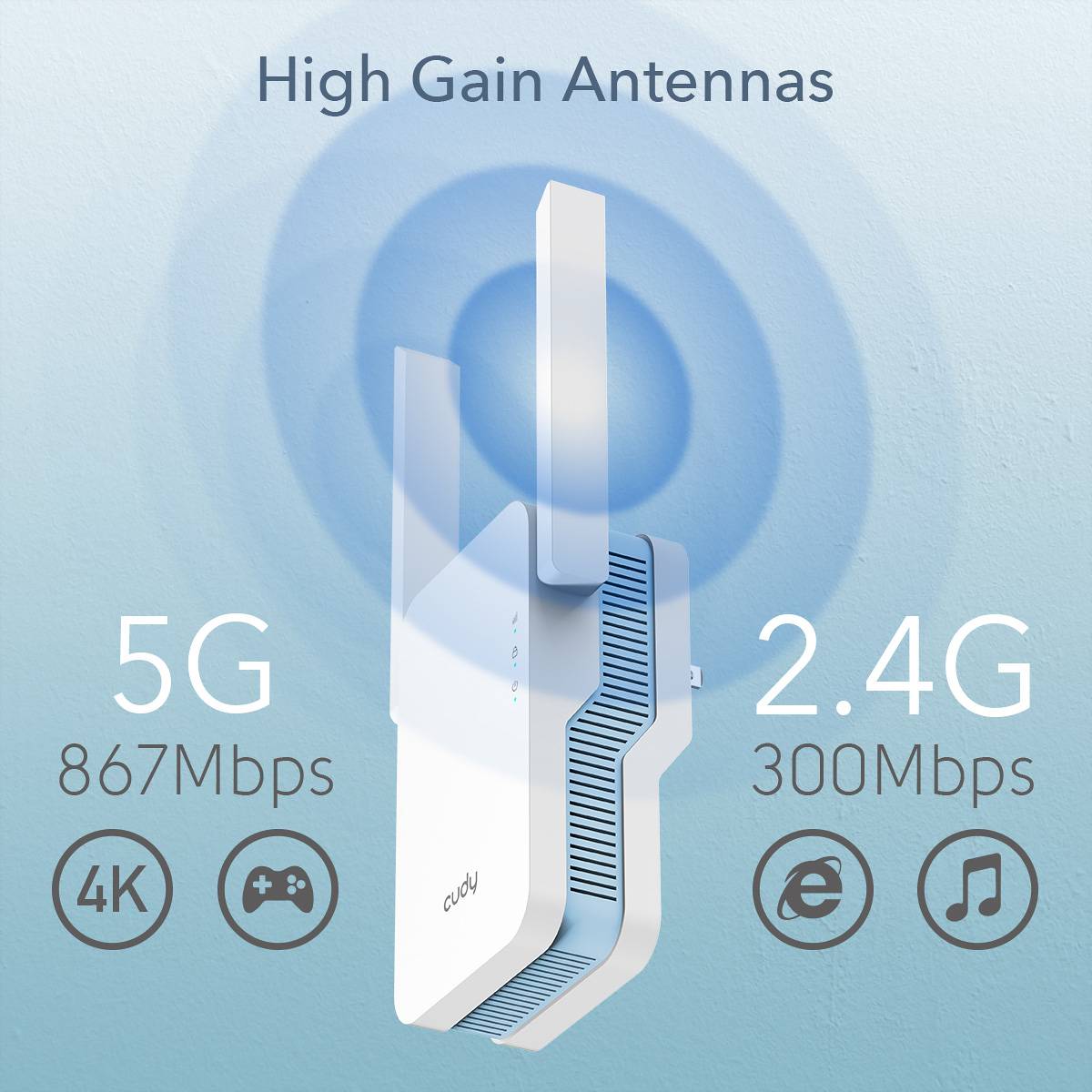

High-performance antennae

Equipped with powerful antennas to improve signal strength and stability for smoother streaming and gaming.

Completely stress-free. Coupling with a single push of a button.

Instant connection via WPS key - no complicated setup required. Use the signal strength indicator to find the optimum location for the best performance.

Range extension mode

Expand your existing WLAN-signal for a longer range.

Access point mode

Set up a new Wi-Fi hotspot over a cable connection to ensure a stable and fast Internet connection.

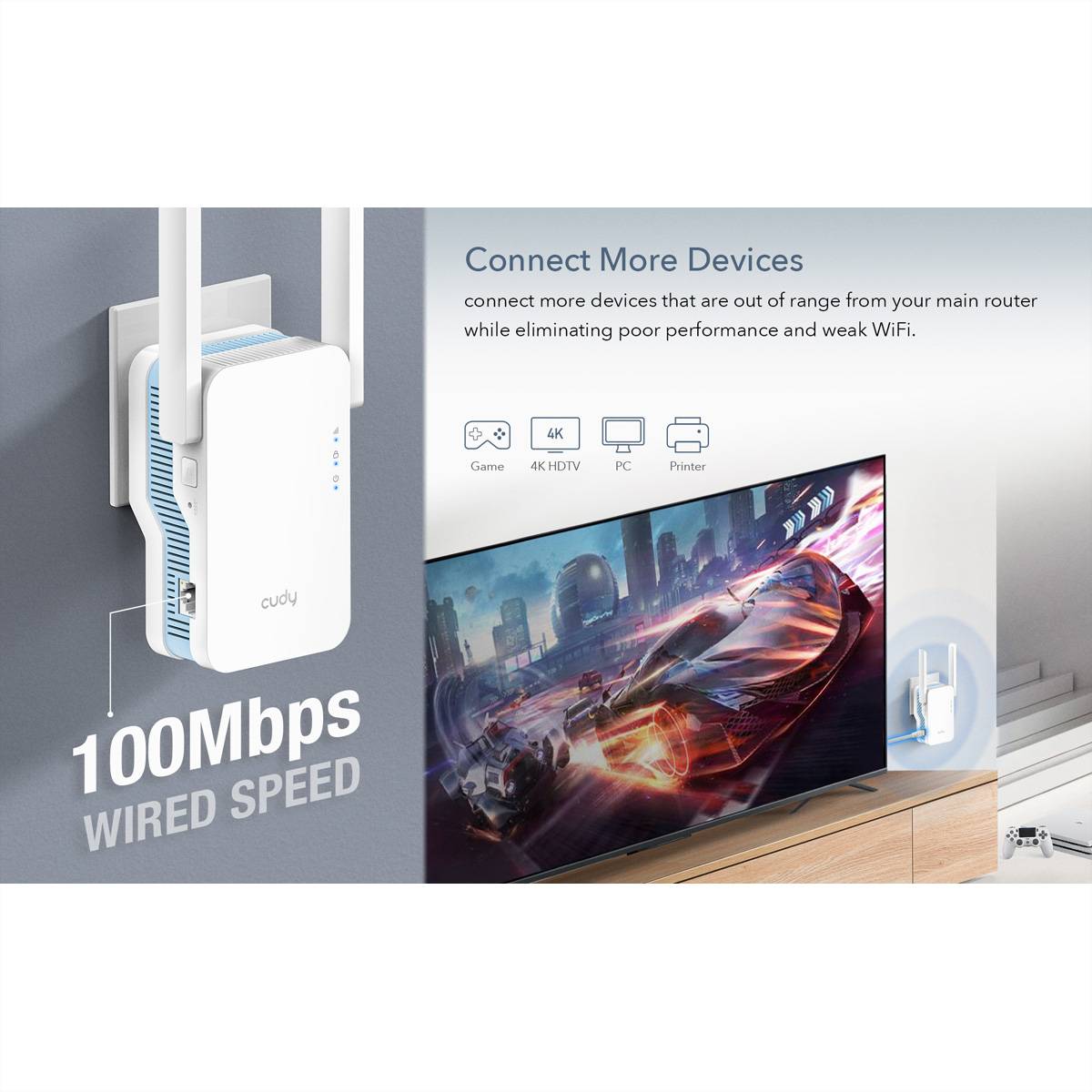

Enjoy stable cable connections as well as WLAN.

In addition to expanding the WLAN range, the high-speed Ethernet connection offers a stable and reliable connection for your wired devices such as Smart TVs, PCs and games consoles.

Seamless roaming with Cudy Mesh

The RE1200 supports Cudy Mesh to enable seamless roaming throughout the house with other Cudy Mesh devices. This allows you to move freely between the rooms without the need for a manual network change.

This text is machine translated.
