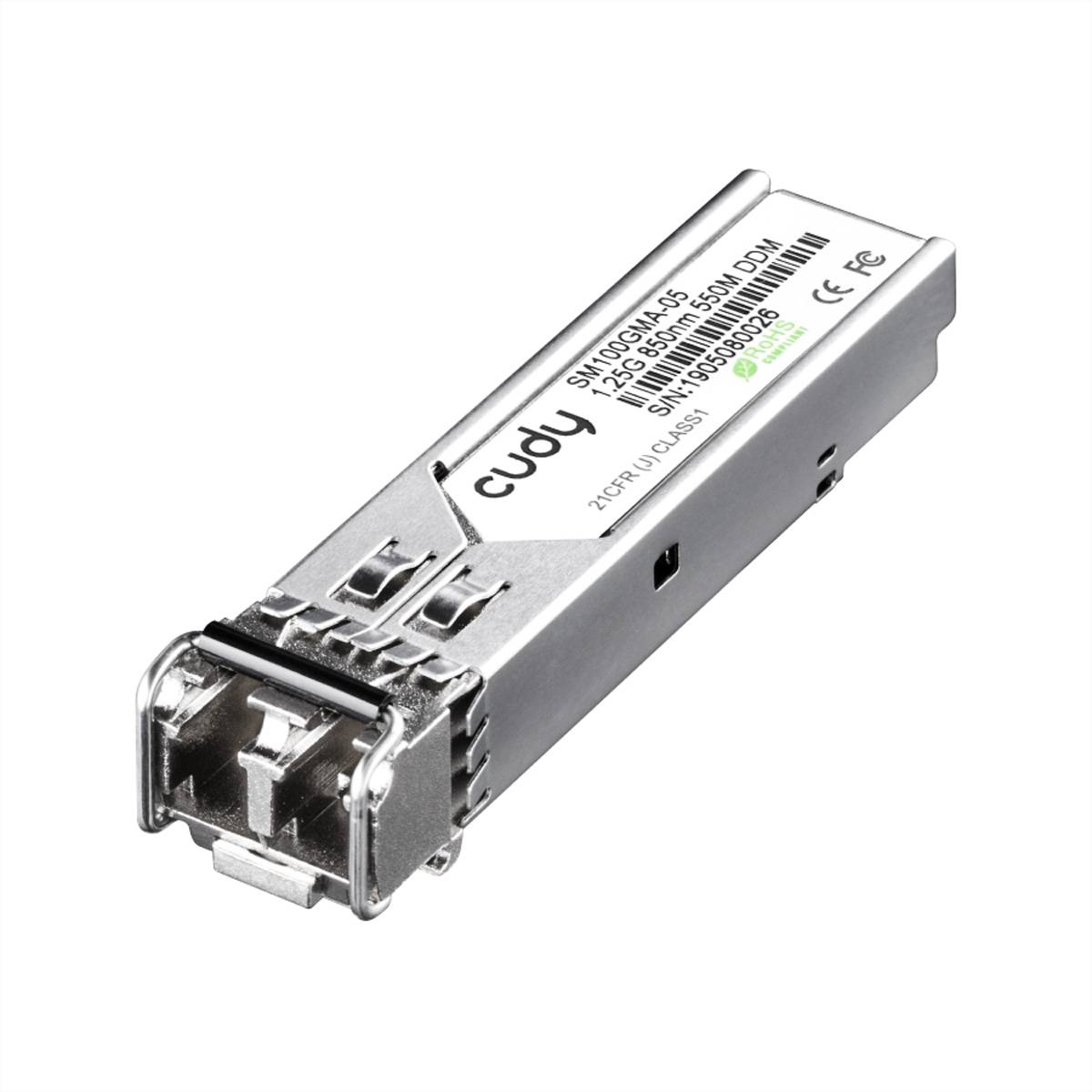

cudy SM100GMA-05 CUDY Transceiver board
EAN:
Part number:
Item no:
Highlights & Details
Cudy SM100GMA-05 network transceiver module FO 1250 Mbit/s SFP 850 nm
- SFP fiber optics 1250 Mbit/s
- 1000BASE Wavelength: 850 nm
- Hot-plug support
- Input voltage: 3.47 V
- Power consumption (standard mode) 1.2 W.
Technical specifications
- Maximum data transfer rate of 1250 Mbit/s.
- SFP interface
- Product type
Transceiver board
- Factory colour
Silver
- Depth
68 mm
- Height
13.8 mm
- Width
13.4 mm
- Material (details)
Metal
LC
- Load (max.)
0.375 A
- Power consumption (ON)
1.2 W
- Input voltage
3.47 V
- Compatible with
MSA Compliant
- UKCA
not relevant
- Operating temperature (T-T)
-40 - 70 °C
- Maximum voltage
4 V
- Quantity per pack
1 Stück(e)
- Digital Diagnostics Monitoring (DDM)
yes
- Wavelength
850 nm
- Hot-Plug support
yes
- Single-mode fiber (SMF) supported
yes
- Storage temperature (T-T)
-40 - 85 °C
- Maximum transfer distance
550 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3798956 cudy SM100GMA-05 CUDY Transceiver board
Description
CUDY 1.25Gb/s SFP 850nm VCSEL mm 0.5km 7.5dB SM100GMA-05 - switch - copper wire - 1.25 Gbps
This text is machine translated.
This text is machine translated.
Features
- 550 m fiber optic transmission
Scope of delivery
- CUDY SM100GMA-05 1.25Gb/s SFP GBIC
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
