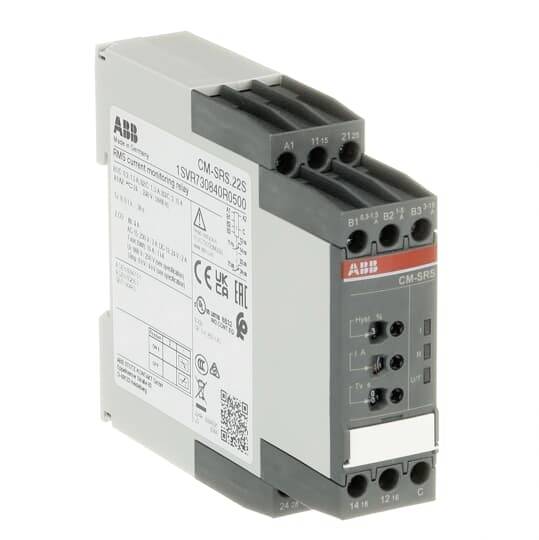

Current monitor relay 24, 24 - 240, 240 V AC, V DC 2 change-overs, 2 breakers, 2 makers ABB CM-SRS.22S 24-240V Piece 1 p
Packaging type
Piece
Product type
Current monitor relay
Functions
On-delay
Off-delay
Max. operating voltage
240 V AC
240 V DC
Contact type
2 change-overs
2 breakers
2 makers
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Current monitor relay
- Type
CM-SRS.22S 24-240V
- Reading range (min.)
0.3 A
- Reading range (max.)
15 A
- Functions
On-delay
Off-delay
- Operating voltage
230 V AC
- Min. operating voltage
24 V AC
24 V DC
- Max. operating voltage
240 V AC
240 V DC
- Operating voltage
24, 24 - 240, 240 V AC, V DC
- Amperage adjustment range (min.)
0.3 A
- Amperage adjustment range (max.)
15 A
- Adjustment range (amperage)
0.3 - 15 A
- Contact type
2 change-overs
2 breakers
2 makers
- Switching current (max.)
4 A
- Connection
Screw terminal
- Width
22.5 mm
- Height
85.6 mm
- Depth
103.7 mm
- Dim
(L x W x H) 103.7 x 22.5 x 85.6 mm
- Content
1 pc(s)
- Weight
0.144 kg
- Length
103.7 mm
22.5
78 mm
103 mm
FALSE
Screw connection
0
0
2
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3786990 Current monitor relay 24, 24 - 240, 240 V AC, V DC 2 change-overs, 2 breakers, 2 makers ABB CM-SRS.22S 24-240V Piece 1 p
Description
The current monitoring relays of the CM series protect single-phase networks (DC or AC) against over-and undercurrents between 3 mA and 15 A. The devices with the maximum measurement range of 1 A are available in two different connection versions. You can select between the proven screw connection technology (double chamber connecting terminals) and the easy connect connection technology without tools (push-in terminals). Devices with a measurement range of up to 15 A are available with screw connection technology.
