Cyrus CS75XA MDC Laser Black Smartphone USB C®, NFC, Bluetooth, Wi-Fi 5 (IEEE 802.11ac)

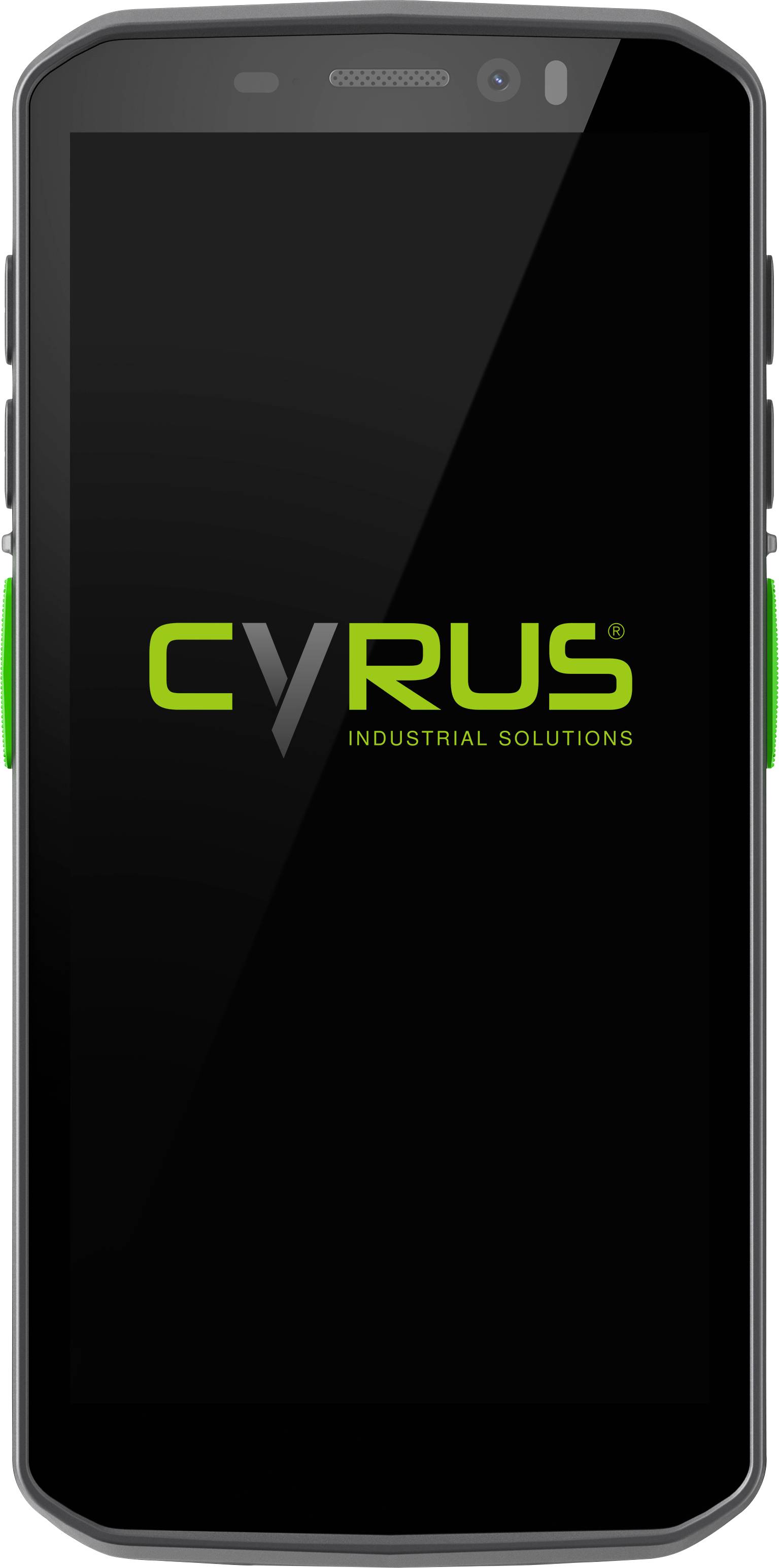

Rugged smartphone front view displaying the 'CYRUS Industrial Solutions' logo on a black screen.
Back view of a Cyrus rugged smartphone, showing the rear camera, NFC area, and large textured back cover.
Two rugged CYRUS smartphones shown front and back, one with a protective module attached, on a white background.

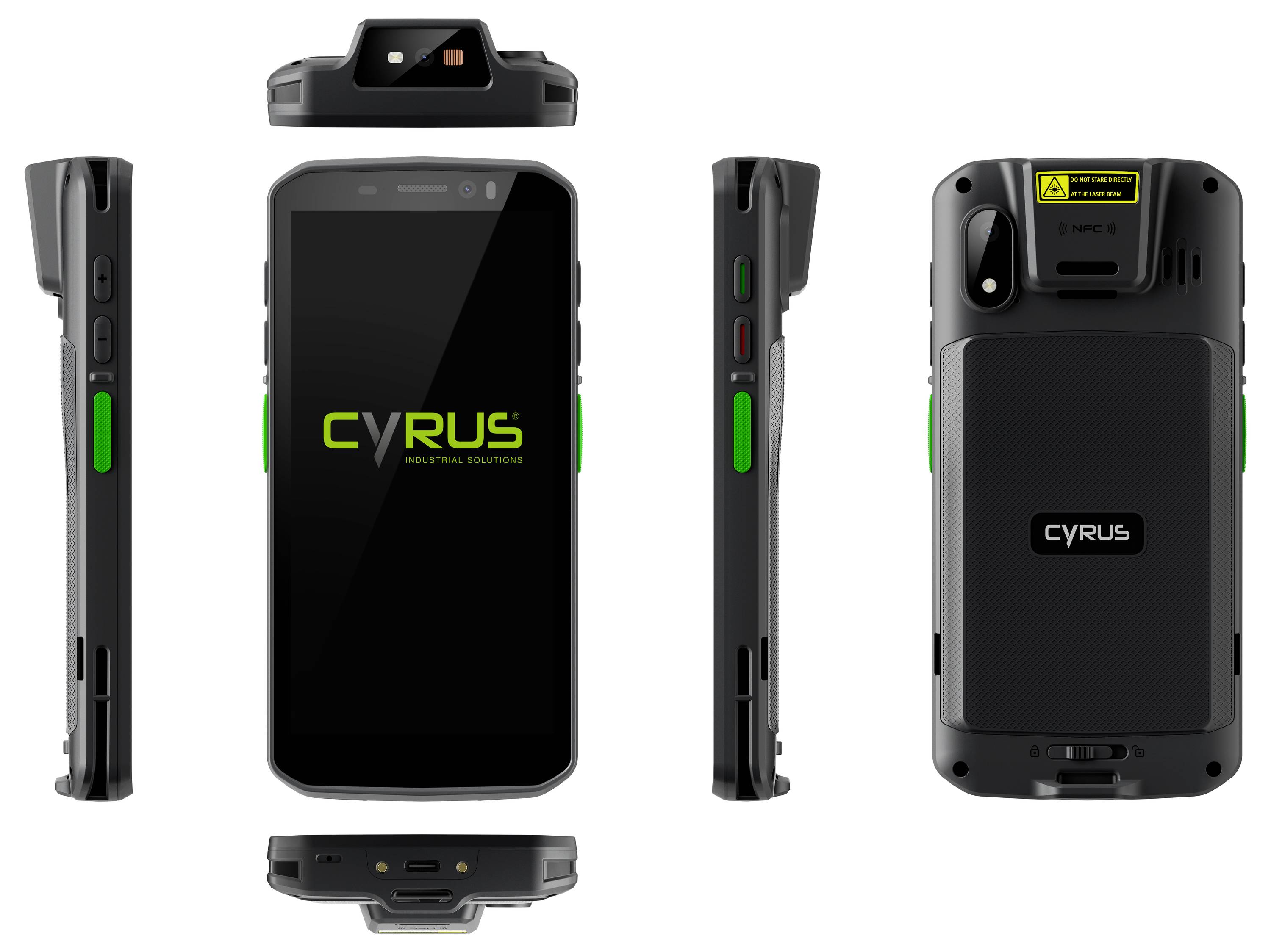

Black Cyrus rugged handheld device shown from front, back, top, and side views, with screen logo and green side button accents.

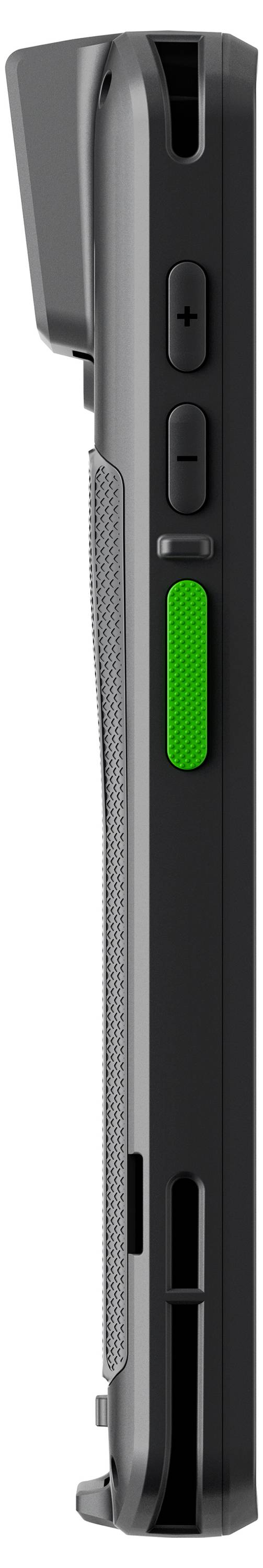

Close-up of a rugged handheld device edge showing a power button, a side button, and a green textured grip or indicator strip.

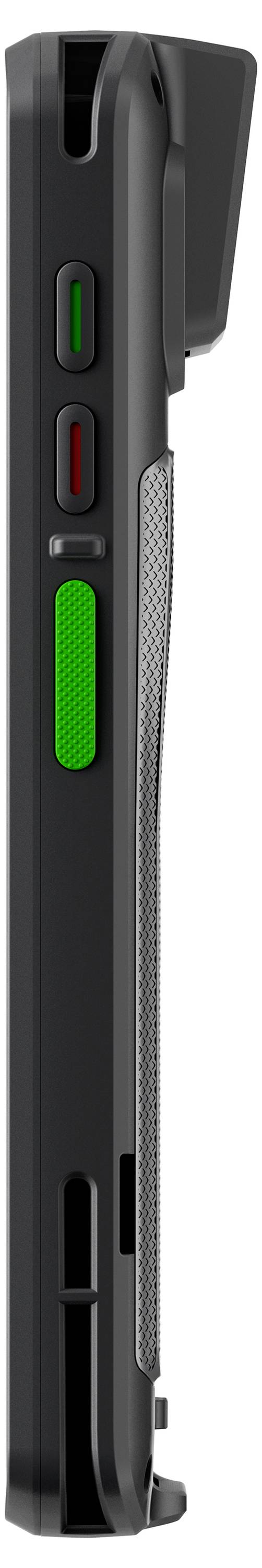

Black handheld device shown in side view, with a green-lit button, red indicator, textured grip, and silver side switch.

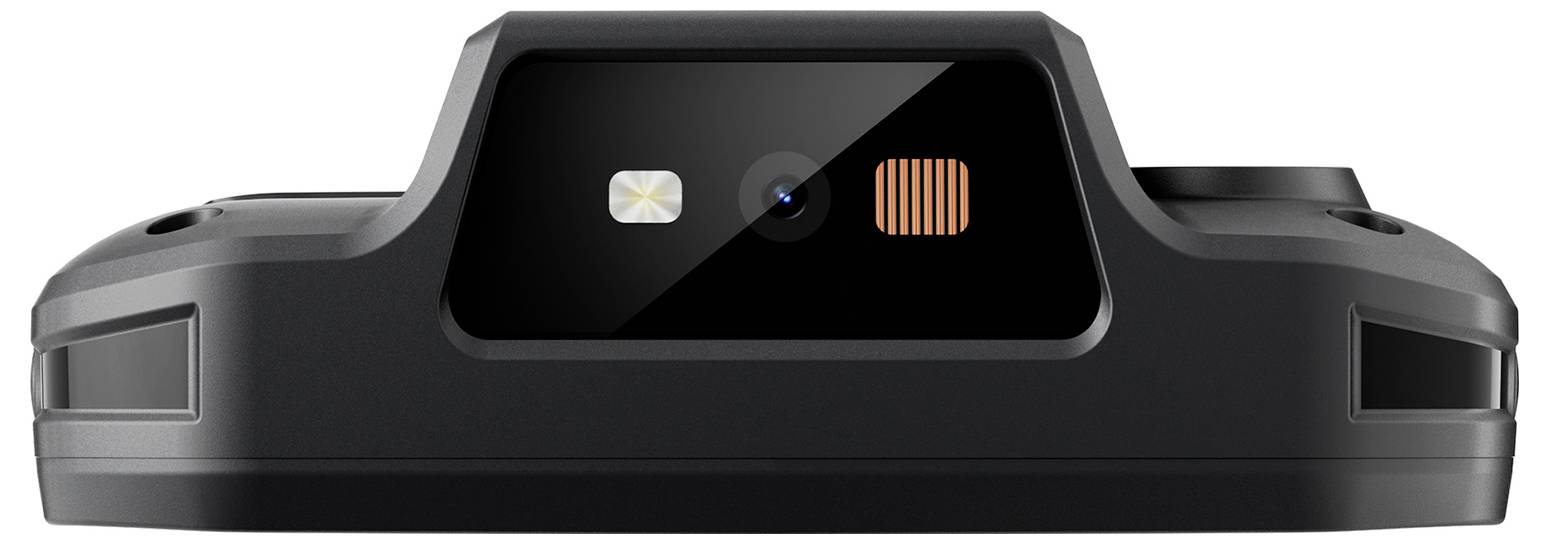

Black front-view of a dash camera with central lens, flash and grille on a low-profile mount.

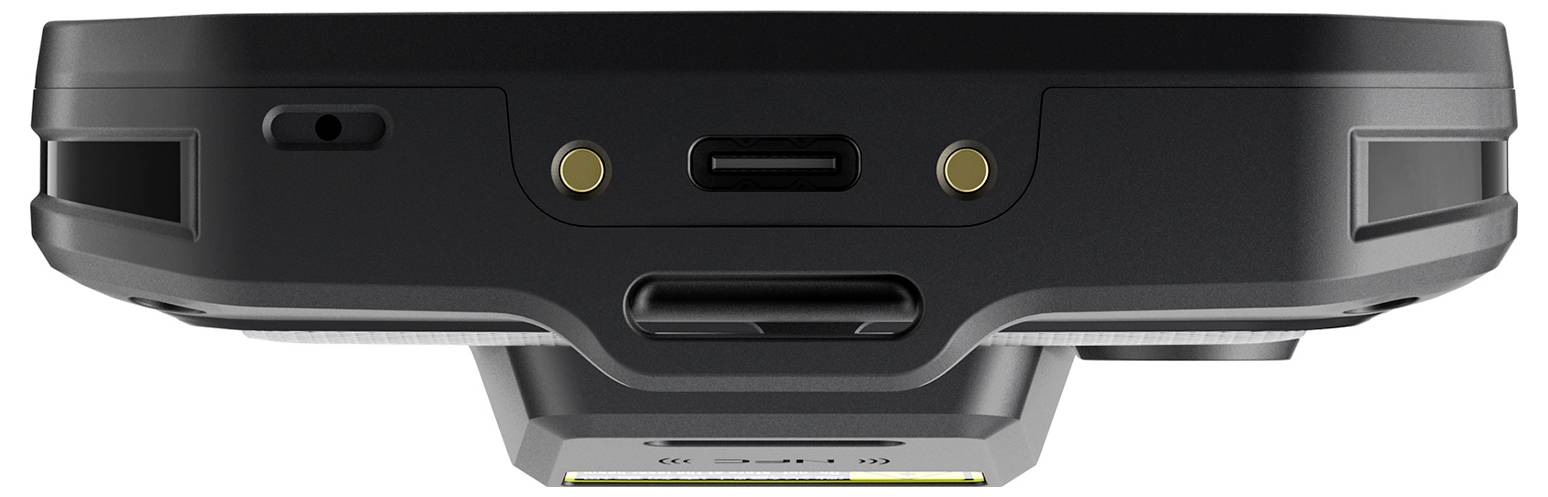

Black rugged electronic device viewed from below, showing two circular sensors, a central port, side openings, and a protruding connector module.
1/8
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Mon 2 Nov
3 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 469.00 / piece)
€ 469.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 3 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Cyrus CS75XA handheld PDA terminal

  • 5.5-inch HD+ full screen color screen
  • Fast Octa-Core processor, fluid and responsive
  • Precise scanning, reliable detection
  • 5 MP + 13 MP HD CAMERAS
  • 5000 mAh ultra high performance battery
  • IP65 protection type + 1.5m fall-proof

Technical specifications

  • Platform: MTK High Performance 8 Kern Processor (MT6765)
  • Operating system: Android 14
  • 4GB RAM+64GB ROM
  • TF card: Supports a maximum of 128 GB
  • Screen: 5.45" TFT (IPS) screen, HD+, resolution: 720 x 1440 pixels
  • 5 MP front camera
  • Rear camera 13 MP
  • 5000 mAh rechargeable battery (removable main battery)
  • Scan module CM60E
  • Supported code systems: PDF417, QR code, Data Matrix, AZTEC, Hanxin code, Maxicode, Micro-QR, Micro-PDF417, Composite, EAN13, EAN8, UPCA, UPCE, Code 128, Code 39, CODABAR, UCC/EAN128, RSS, ITF, ITF14, ITF6, ISSN, ISBN, standard 25,matrix 25, industrial 25, Plessey, MSI Plessey, Code 11, Code 93 and others
Product type

MDC

Type

CS75XA

Type

Smartphone

Scanning technology

Laser

Cordless scanning

Bluetooth®

Wi-Fi

Radio

Factory colour

Black

Interfaces

USB C®

NFC

Bluetooth

Wi-Fi 5 (IEEE 802.11ac)

Protection class

IP65

Width

77.4 mm

Height

157.2 mm

Depth

26 mm

Dim

(W x H x D) 77.4 x 157.2 x 26 mm

Weight

280 g

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3799798 Cyrus CS75XA MDC Laser Black Smartphone USB C®, NFC, Bluetooth, Wi-Fi 5 (IEEE 802.11ac)

User & Safety Instructions

User & Safety Instructions 3799798 Cyrus CS75XA MDC Laser Black Smartphone USB C®, NFC, Bluetooth, Wi-Fi 5 (IEEE 802.11ac)

Description

The CS75XA is an industrial, rugged, 5.5-inch handheld PDA terminal with a powerful MTK-Octa-Core processor and the latest Android 14 operating system. It features a high-quality scanning engine and scanning service system and supports the full 2G/3G/4G frequency bands in Europe and Asia. Equipped with a full-screen display and cover glass made of Corning Gorilla Glass, it offers an industry standard of protection and is suitable for barcode scanning applications in logistics, courier services, warehousing, healthcare, production management, Retail and other industries.

This text is machine translated.

Scope of delivery

  • Cyrus CS75XA
  • Charger (5V/2A)
  • USB cable
  • Battery (integrated in device)
  • Quick start guide
