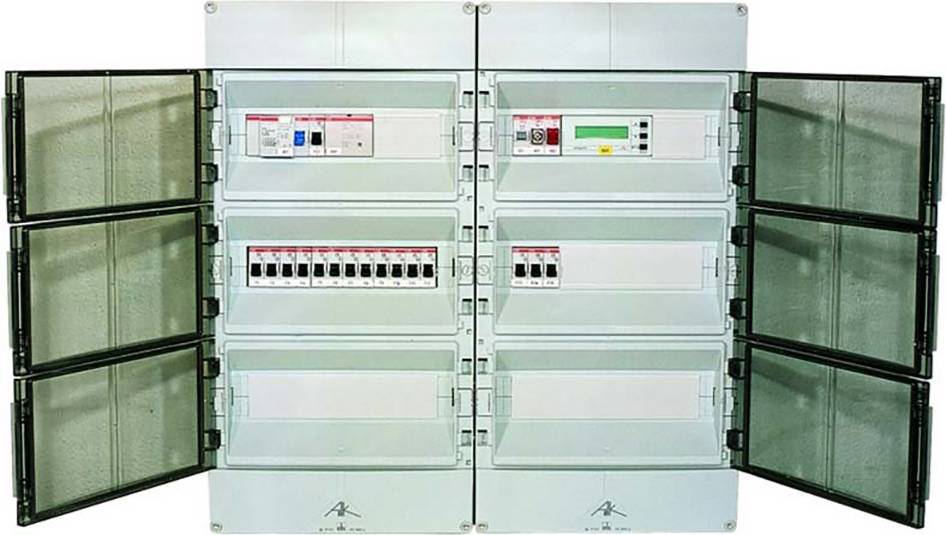

Danfoss 109503 DV10-12DR/RB230 Switchboard cabinet Surface-mount Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Surface-mount
Width
660 mm
Height
600 mm
Depth
150 mm
Technical specifications
- Number of doors: 6Protection class IK08;IP65View door with lock
- Product type
Switchboard cabinet
- Mounting type
Surface-mount
- Factory colour
Grey
- Width
660 mm
- Height
600 mm
- Dim
(W x H x D) 660 x 600 x 150 mm
- Depth
150 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2602717 Danfoss 109503 DV10-12DR/RB230 Switchboard cabinet Surface-mount Content 1 pc(s)
Description
Control distribution for pipe auxiliary heating up to 12 heating circuits. Power 30-36 KW AP insulation housing, protection class IP 65 equipped with all input fuses, FI-protection switch mode switch for continuous, manual and automatic operation, empty space for a thermostat, control and power contactors, heating circuit fuses as well as terminals for incoming and outgoing cables. VDE-wise wired. Supply voltage 230 V
