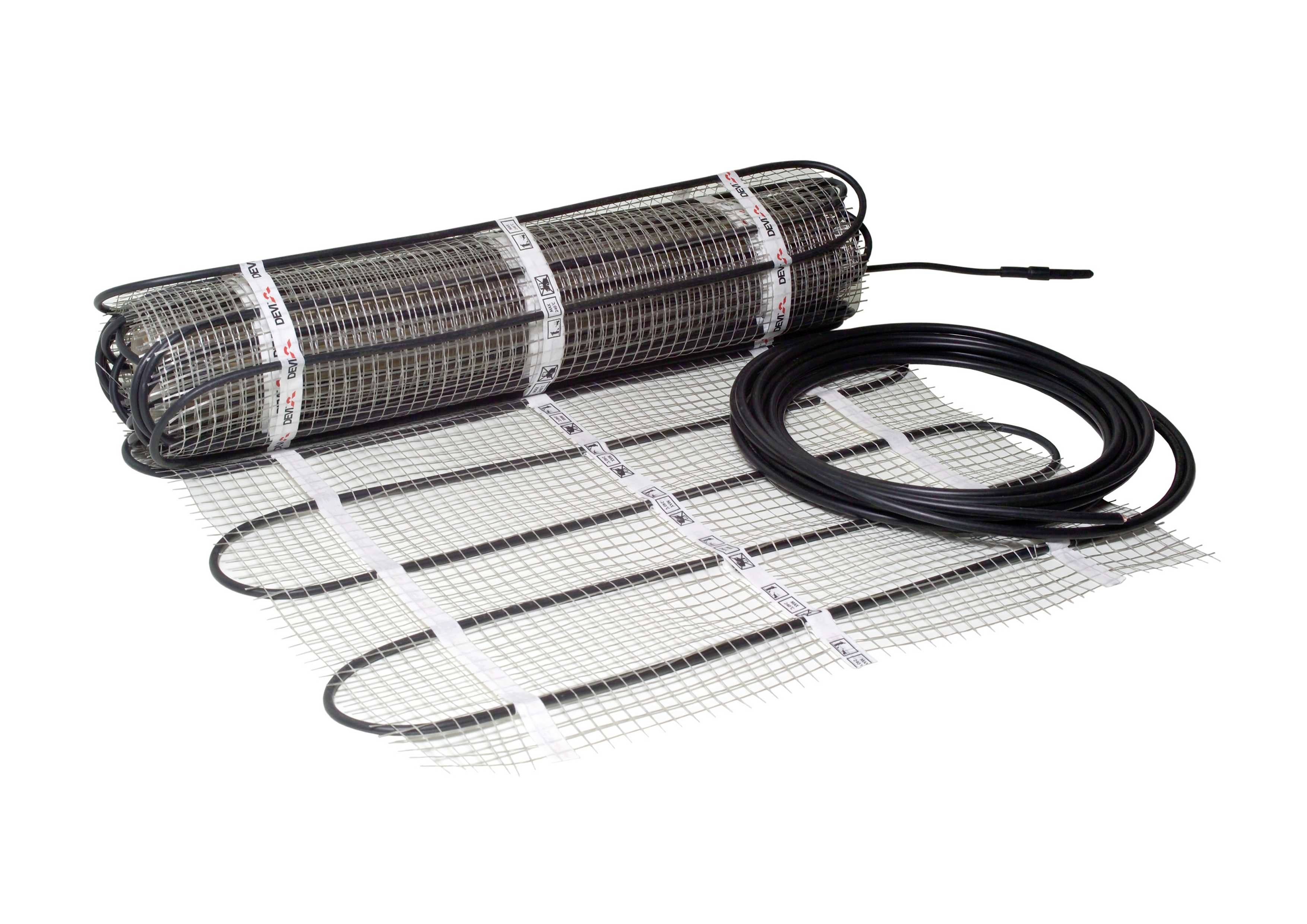

Danfoss 140F0607 Heat mat electronical DEVIasphalt 300#0607 1740 W 6 m²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- With carrier mat: YesFixing the heating conductor: GluedSelf-adhesive: no.Power 300 W/m²Number of PTC thermistors: 1Suitable for damp rooms: YesSuitable as open space heating: YesSurface area: 6 m²Length: 8000 mmWidth 750 mmThickness: 8 mmWith regulator: no.With room thermostat: no.With ground temperature sensor: no.
- Product type
Heat mat
- Operation type
electronical
- Operating voltage
400 V
- Suitable for
Outdoor
- Heating area
6 m²
- Heating power (W / BTU/h)
1740 W
- Heating power
1740 W
- W/m
30 W
- Lead length
30000 mm
- Heating element length
30 m
- Compatible with
Underfloor heating
- Mounting height
8 mm
- Width
750 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2607283 Danfoss 140F0607 Heat mat electronical DEVIasphalt 300#0607 1740 W 6 m²
User & Safety Instructions
User & Safety Instructions 2607283 Danfoss 140F0607 Heat mat electronical DEVIasphalt 300#0607 1740 W 6 m²
