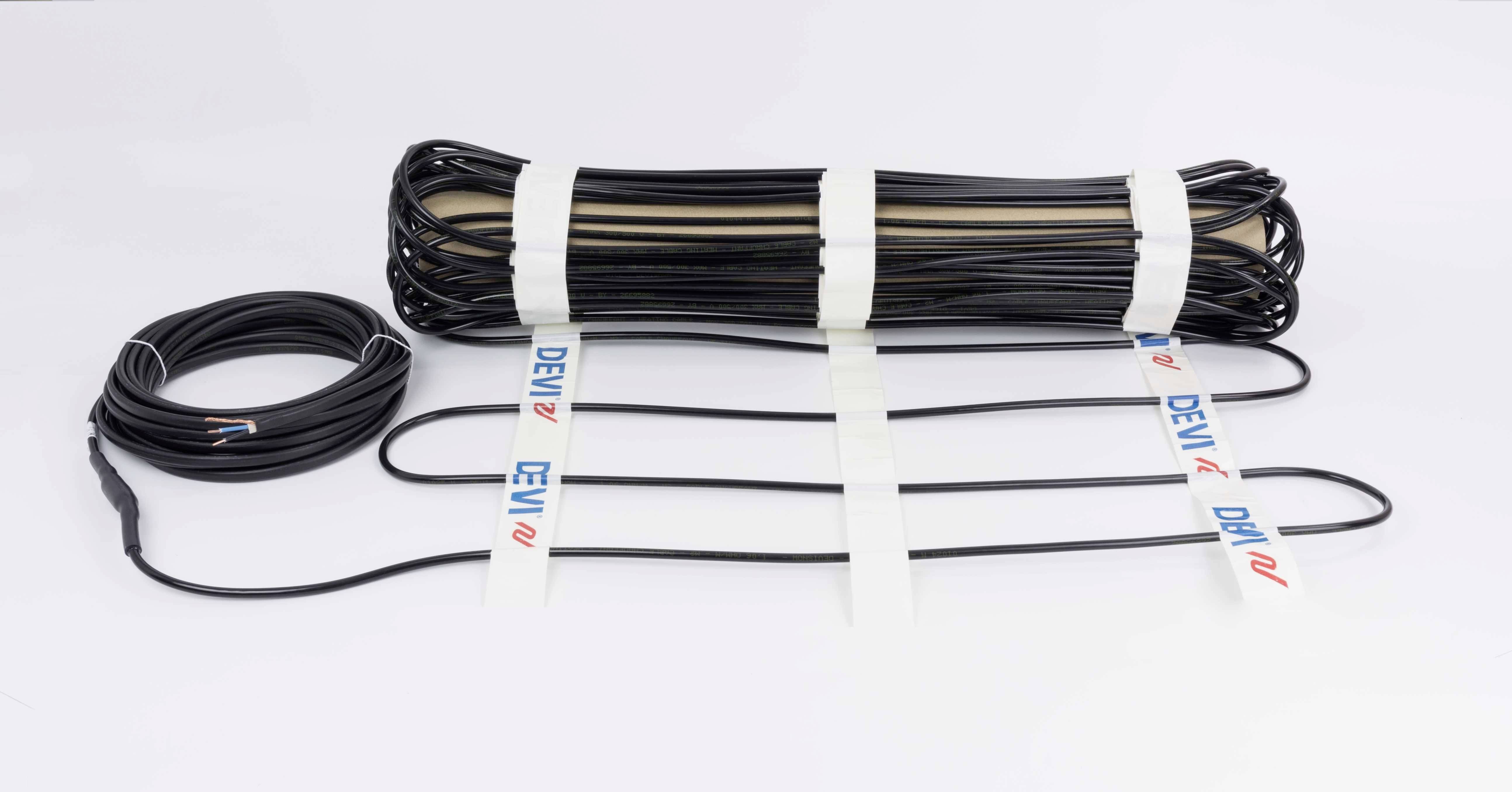

Danfoss 140F0629 Heat mat electronical DEVIsnow 300 5660W 5660 W 19.1 m²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- With carrier mat: YesFixing the heating conductor: GluedSelf-adhesive: no.Power 300 W/m²Number of PTC thermistors: 1Suitable for damp rooms: YesSuitable as open space heating: YesSurface area: 19.1 m²Length: 25400 mmWidth 750 mmThickness: 7.5 mmWith regulator: no.With room thermostat: no.With ground temperature sensor: no.
- Product type
Heat mat
- Operation type
electronical
- Operating voltage
400 V
- Suitable for
Wet room
- Heating area
19.1 m²
- Heating power (W / BTU/h)
5660 W
- Heating power
5660 W
- W/m
30 W
- Lead length
30000 mm
- Heating element length
30 m
- Compatible with
Underfloor heating
- Width
750 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2608989 Danfoss 140F0629 Heat mat electronical DEVIsnow 300 5660W 5660 W 19.1 m²
User & Safety Instructions
User & Safety Instructions 2608989 Danfoss 140F0629 Heat mat electronical DEVIsnow 300 5660W 5660 W 19.1 m²
