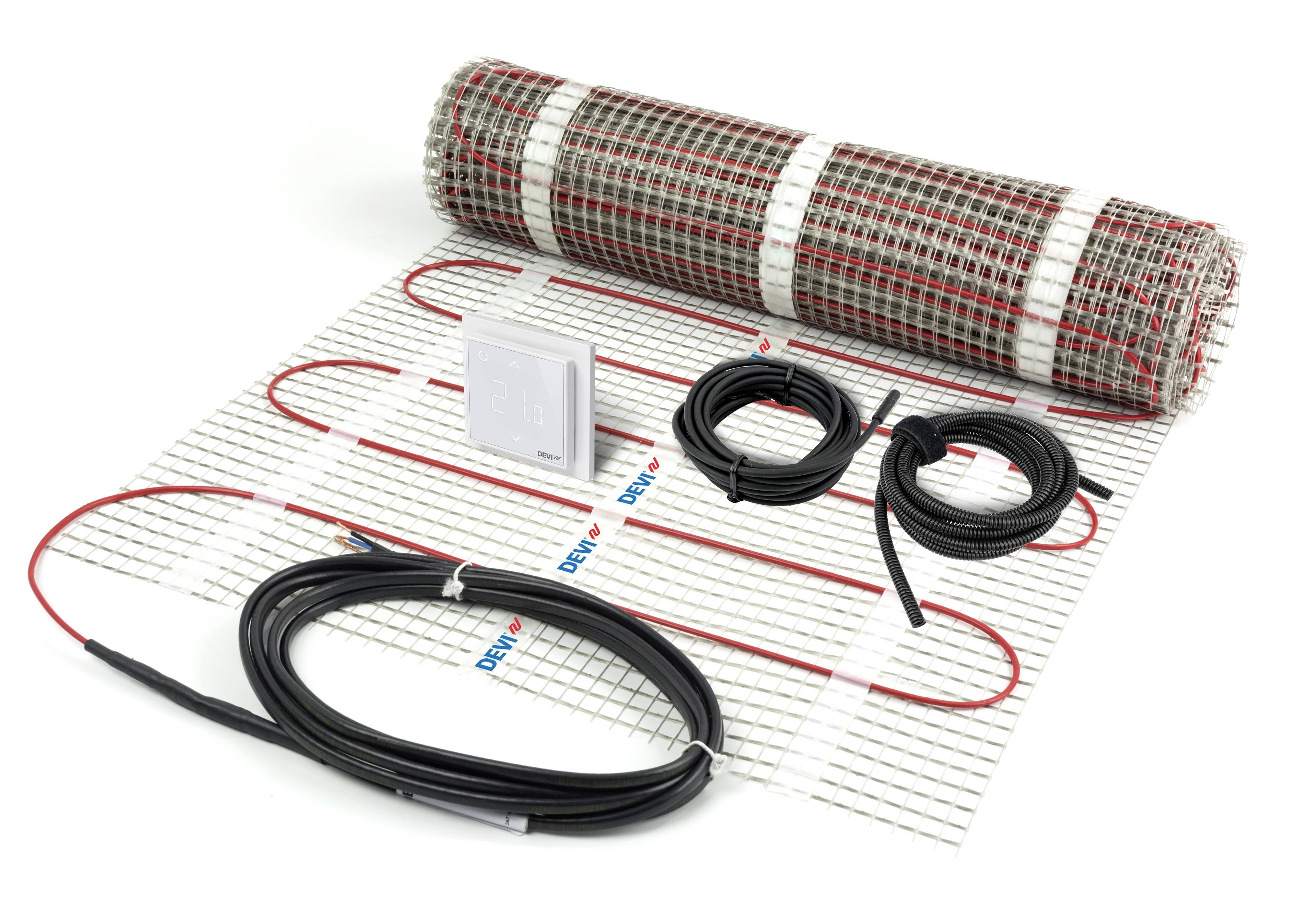

Danfoss 140F1655 Heat mat electronical 140F1655 525 W 3.5 m²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- With carrier mat: YesFixing the heating conductor: GluedSelf-adhesive: YesPower 150 W/m²Number of PTC thermistors: 1Suitable for damp rooms: YesSuitable as open space heating: no.Surface area: 3.5 m²Length: 7000 mmWidth 500 mmThickness: 3.5 mmWith regulator: YesWith room thermostat: YesWith ground temperature sensor: Yes
- Product type
Heat mat
- Operation type
electronical
- Operating voltage
230 V
- Suitable for
Wet room
- Heating area
3.5 m²
- Heating power (W / BTU/h)
525 W
- Heating power
525 W
- W/m
11 W
- Lead length
4000 mm
- Heating element length
4 m
- Compatible with
Underfloor heating
- Mounting height
3.2 mm
- Width
500 mm
- UKCA
not relevant
