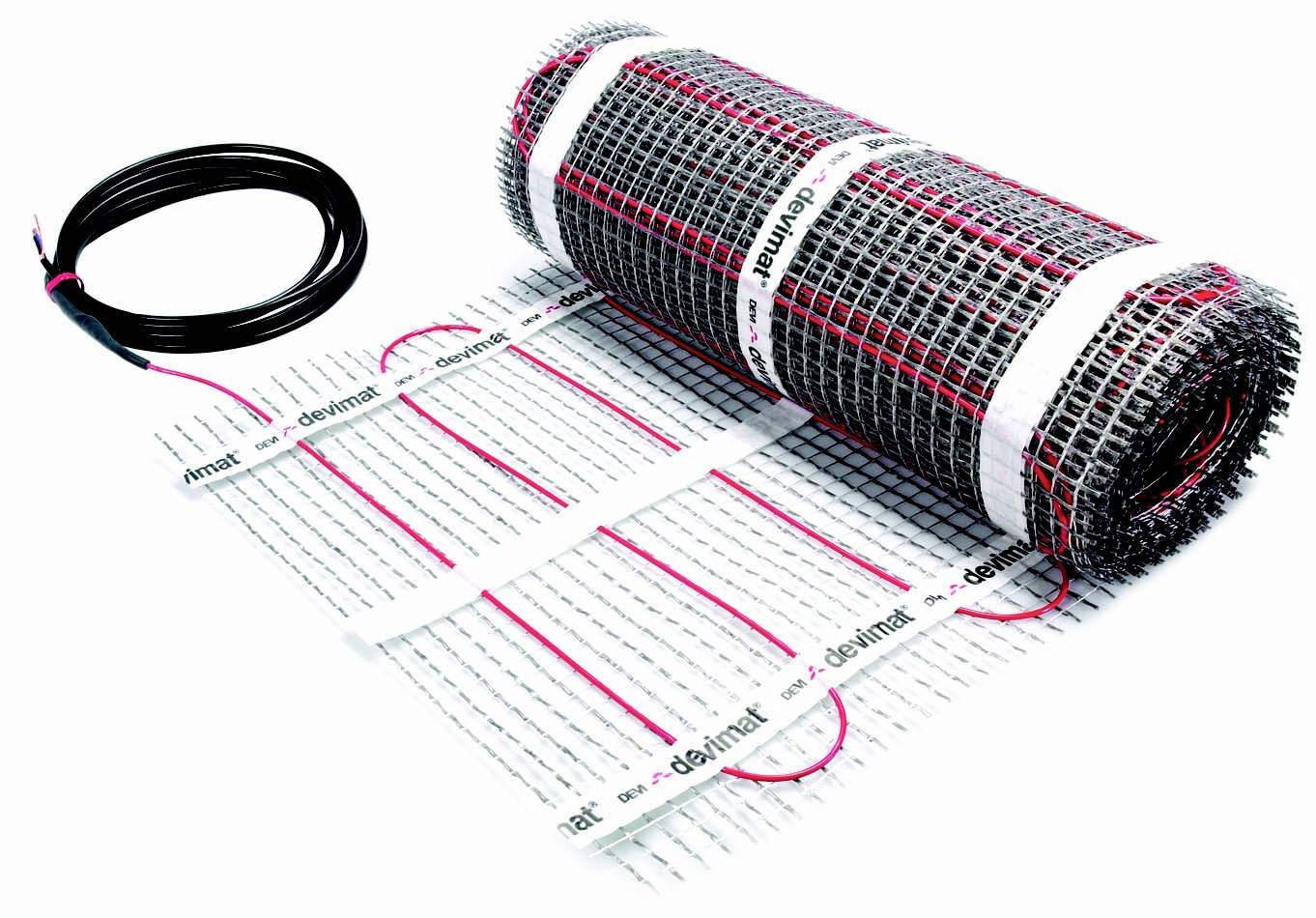

Danfoss 83020748 Heat mat electronical DEVImat 200 0,5x21 2070 W 10.5 m²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- With carrier mat: YesFixing the heating conductor: GluedSelf-adhesive: YesPower 200 W/m²Number of PTC thermistors: 1Suitable for damp rooms: YesSuitable as open space heating: no.Surface area: 10.5 m²Length: 21000 mmWidth 500 mmThickness: 3 mmWith regulator: no.With room thermostat: no.With ground temperature sensor: no.Design: Heating foil
- Product type
Heat mat
- Operation type
electronical
- Operating voltage
230 V AC
- Suitable for
Wet room
- Heating area
10.5 m²
- Heating power (W / BTU/h)
2070 W
- Heating power
2070 W
- W/m
15 W
- Lead length
4.0 m
- Heating element length
0.004 m
- Compatible with
Underfloor heating control
- Mounting height
3.2 mm
- Width
500 mm
- UKCA
not relevant
