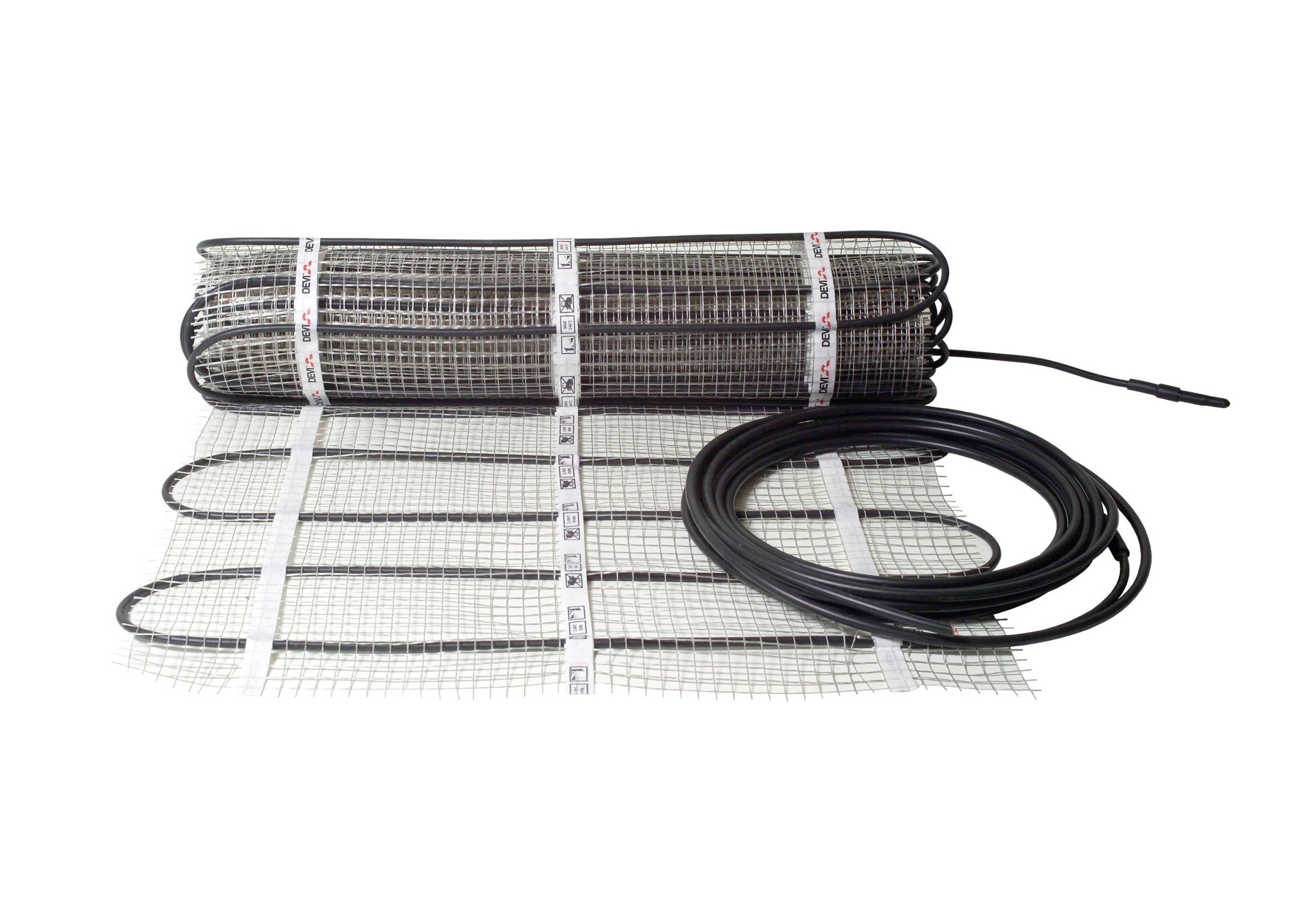

Danfoss 83901960 Heat mat DTCE-175 2165W 2165 W 12.5 m²
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- With carrier mat: YesFixing the heating conductor: GluedSelf-adhesive: no.Power 175 W/m²Number of PTC thermistors: 1Suitable for damp rooms: YesSuitable as open space heating: no.Surface area: 12.5 m²Length: 16650 mmWidth 750 mmThickness: 7 mmWith regulator: no.With room thermostat: no.With ground temperature sensor: no.
- Product type
Heat mat
- Operating voltage
230 V
- Suitable for
Wet room
- Heating area
12.5 m²
- Heating power (W / BTU/h)
2165 W
- Heating power
2165 W
- W/m
13.1 W
- Lead length
6000 mm
- Heating element length
6 m
- Compatible with
Underfloor heating
- Protection class
IP67
- Width
750 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2599254 Danfoss 83901960 Heat mat DTCE-175 2165W 2165 W 12.5 m²
User & Safety Instructions
User & Safety Instructions 2599254 Danfoss 83901960 Heat mat DTCE-175 2165W 2165 W 12.5 m²
