Danfoss 83902056 Heat mat DTCE-300 1750W 1750 W 6 m²

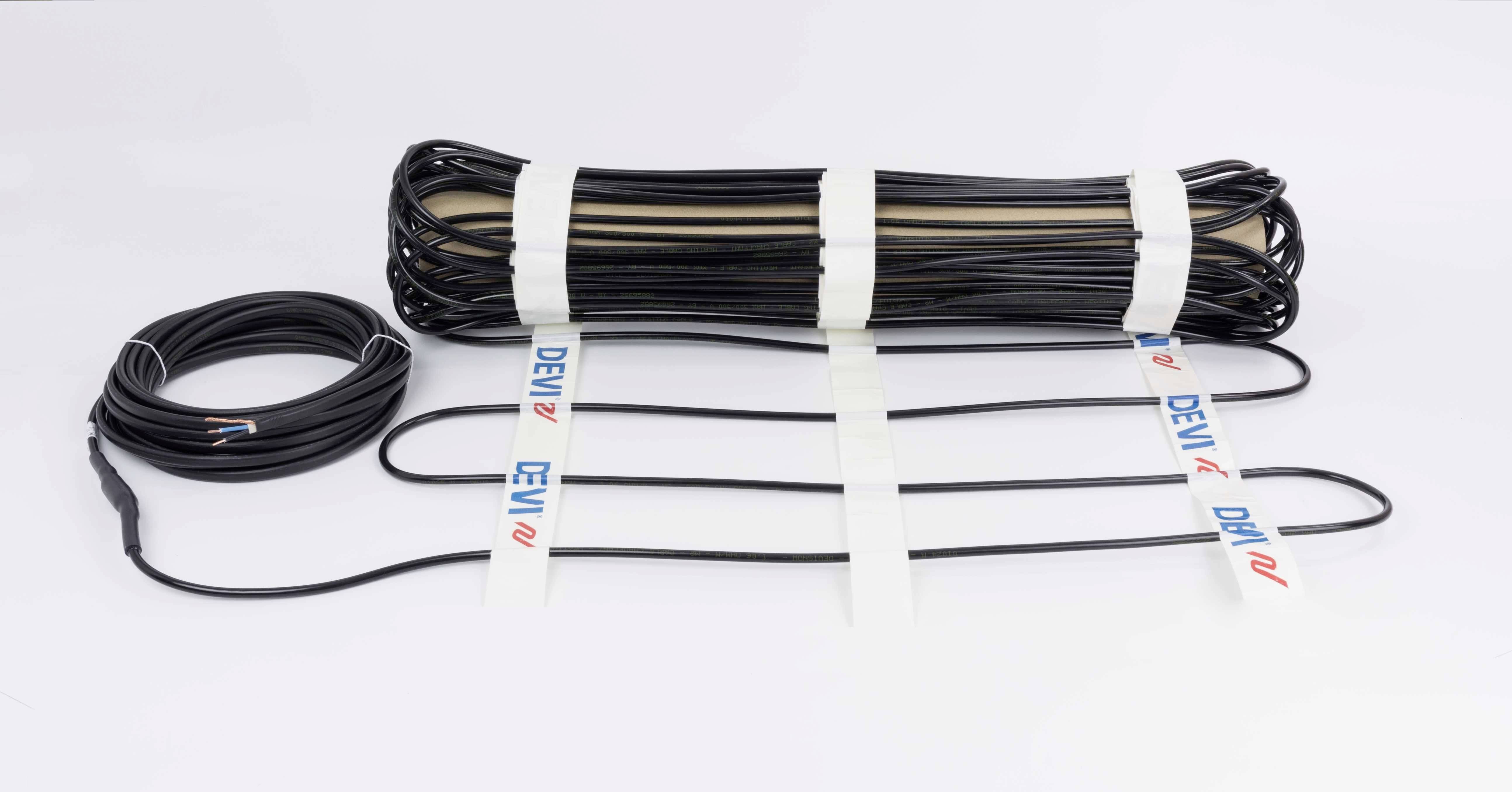

A black heating cable is coiled into a roll and unrolled beside it. White straps with blue 'DEVI' lettering hold the cable together.

A black heating cable is coiled into a roll and unrolled beside it. White straps with blue 'DEVI' lettering hold the cable together.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

With carrier mat: no.Fixing the heating conductor: GluedSelf-adhesive: no.Power 300 W/m²Number of PTC thermistors: 1Suitable for damp rooms: YesSuitable as open space heating: YesSurface area: 6 m²Length: 8000 mmWidth 750 mmThickness: 7 mmWith regulator: no.With room thermostat: no.With ground temperature sensor: no.

Product type: Heat mat

Operating voltage: 400 V

Heating area: 6 m²

Heating power (W / BTU/h): 1750 W

Heating power: 1750 W

W/m: 30 W

Lead length: 10000 mm

Heating element length: 10 m

Compatible with: Underfloor heating

Mounting height: 7 mm

Width: 750 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2609007 Danfoss 83902056 Heat mat DTCE-300 1750W 1750 W 6 m²

User & Safety Instructions

User & Safety Instructions 2609007 Danfoss 83902056 Heat mat DTCE-300 1750W 1750 W 6 m²
