Dasqua 4111-5205 + 8511-0060 Micrometer 0 - 25 mm Reading: 0.01 mm

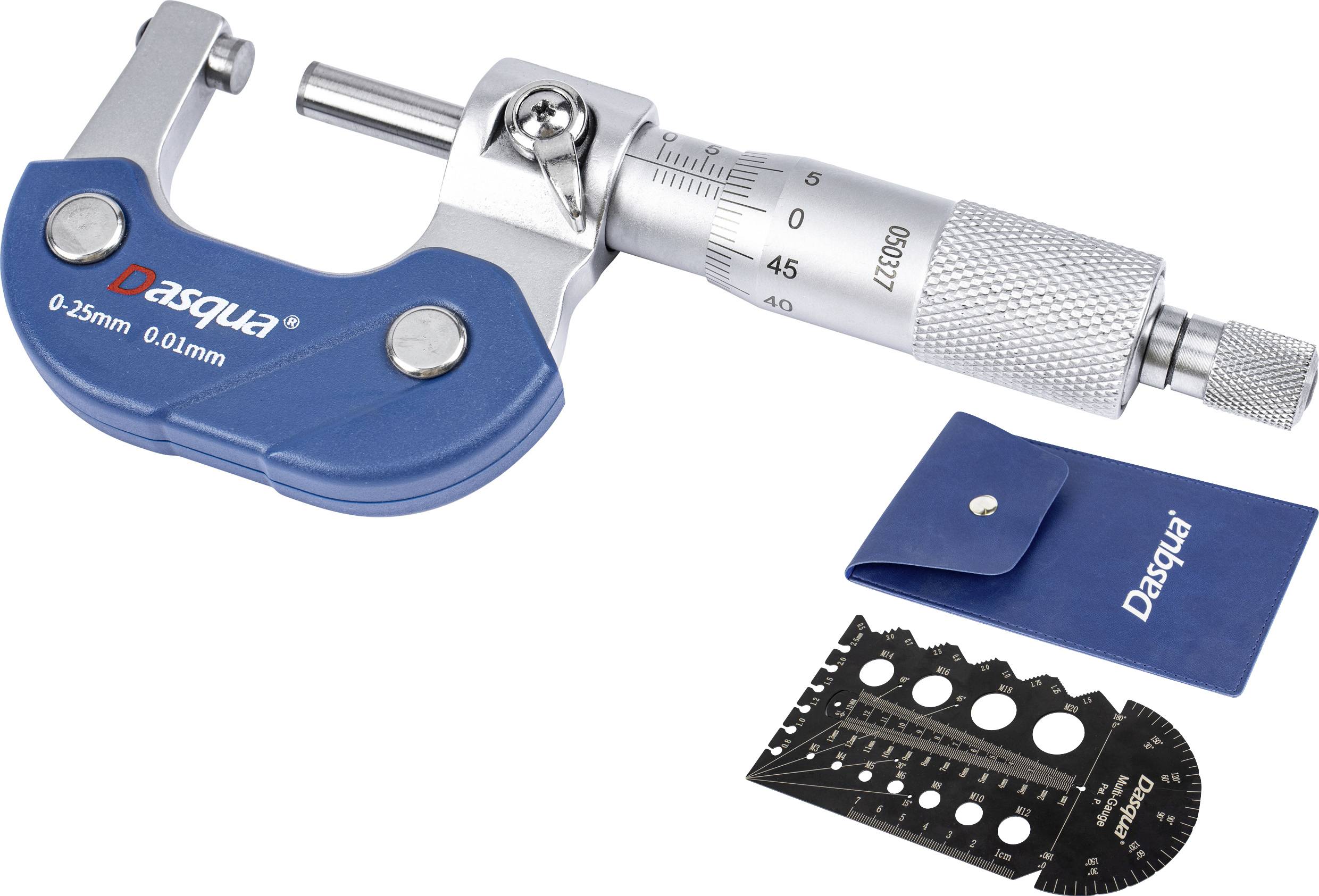

A micrometer with a blue casing and measurement scale, showing measurement range 0-25mm. Lying next to a storage pouch and circular template.
Measuring screw with blue handle, millimetre scale and metal drum for precise length measurement.
A blue Dasqua micrometre vernier caliper with a scale from 0 to 25 mm for precise measurement of small objects.
A blue micrometre for precise measurement of small distances, with a scale up to 30 mm. Suitable for technical applications.
Silver screwdriver with a knurled handle and a cross-head blade, close-up.
Close-up of a micrometer. The key feature is a rotatable measuring metal part. Instrument for precise measurement of object thicknesses.
The image shows an external micrometer by 'Dasqua', lying on a blue case with an adjustment key. The packaging is visible in the background.
'Measuring screw 0-25 mm' next to a blue plastic case by the brand Dasqua. The scale shows precise measurements.
'Metal screw gauge with various hole sizes, thread pitch measurement teeth and a linear scale along the bottom edge.'
Metal measuring tool in black colour with various shapes and holes, including blue case, marked with 'Dasqua'.
A person is using a micrometer to measure a small cylindrical object on a blue stand.
Two gloved hands are holding an angle measuring device to check the size of a metal component. Tools are lying in the background.
1/12
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Outside micrometer + screw and thread pattern

  • Free screw and thread stencil

Technical specifications

Product type

Micrometer

Reading range (min.)

0 mm

Reading range (max.)

25 mm

Reading range

0 - 25 mm

Reading

0.01 mm

Material properties

chrome plated

Manufacturer's standards (no certificate)

Weight

0.32 kg

Description

Markings and numbers in satin finish chrome surface defined lasered in.
Heat protection shield prevents distortion and increases stability.
Metallic ratchet stop provides for stable measuring forces and for accurate measurements.

Thread and bolt gauge
Check the slope of screw threads with 10 - 40 TPI
The thread diameter can also be checked (from #5 to #12 and ¼" to 5/8" in 1/16" steps plus 3/4").
The length of a screw thread can be measured with the side of the multi-function gauge.
Wire measurement function for sizing cables, washers and sheet metal with #3 to #24 and 0.03" to 0.035"
Quickly mark lines with hole marks between 15° and 60° in 15° increments

This text is machine translated.

Features

  • Chrome-plated format
  • The anvil is made from precision ground, high wear resistant tungsten carbide
  • Manufactured in accordance with ISO 3611 (DIN 863)

Scope of delivery

  • Outdoor micrometer
  • Thread and bolt gauge
