Name: Dasqua 4700-1002 Digital 3-Point snap-open bore gauge 8 - 10 mm 1 pc(s)
Brand: Dasqua
SKU: 2986895
Availability: SoldOut

Digital measuring device with display reading '43.950', blue upper casing, two red buttons. Used for precise measurement.

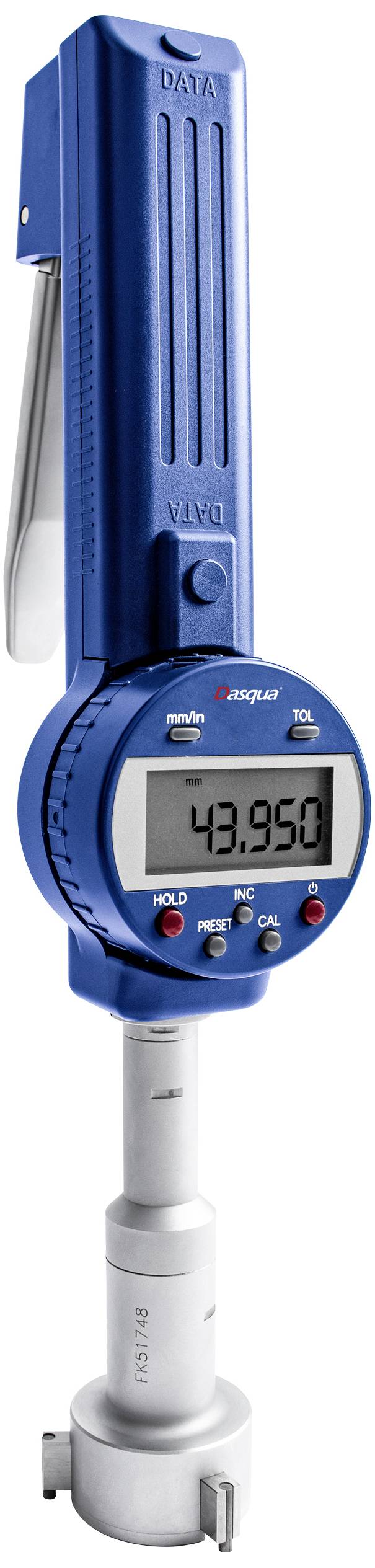

A blue digital measuring device with a round display shows the value '43.950'. It is designed for precise measurements.

Blue measuring device with digital display showing '65.950'. Device has a cylindrical shaft and metallic measuring head.

A drill with a blue grip cover and a silver drill head, positioned towards a metal surface.

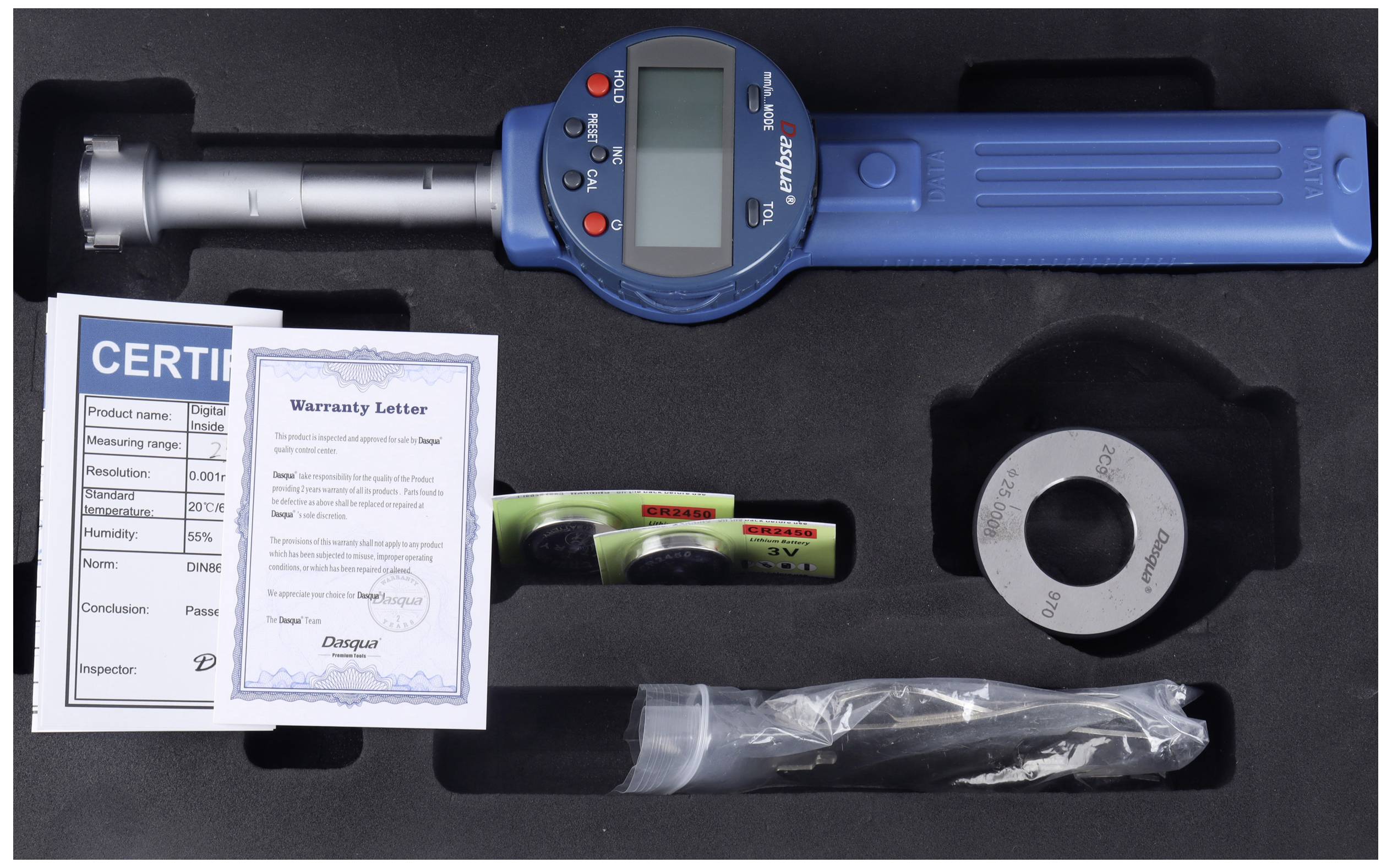

A digital measuring device with accessories in a black case, including user manual and warranty card.

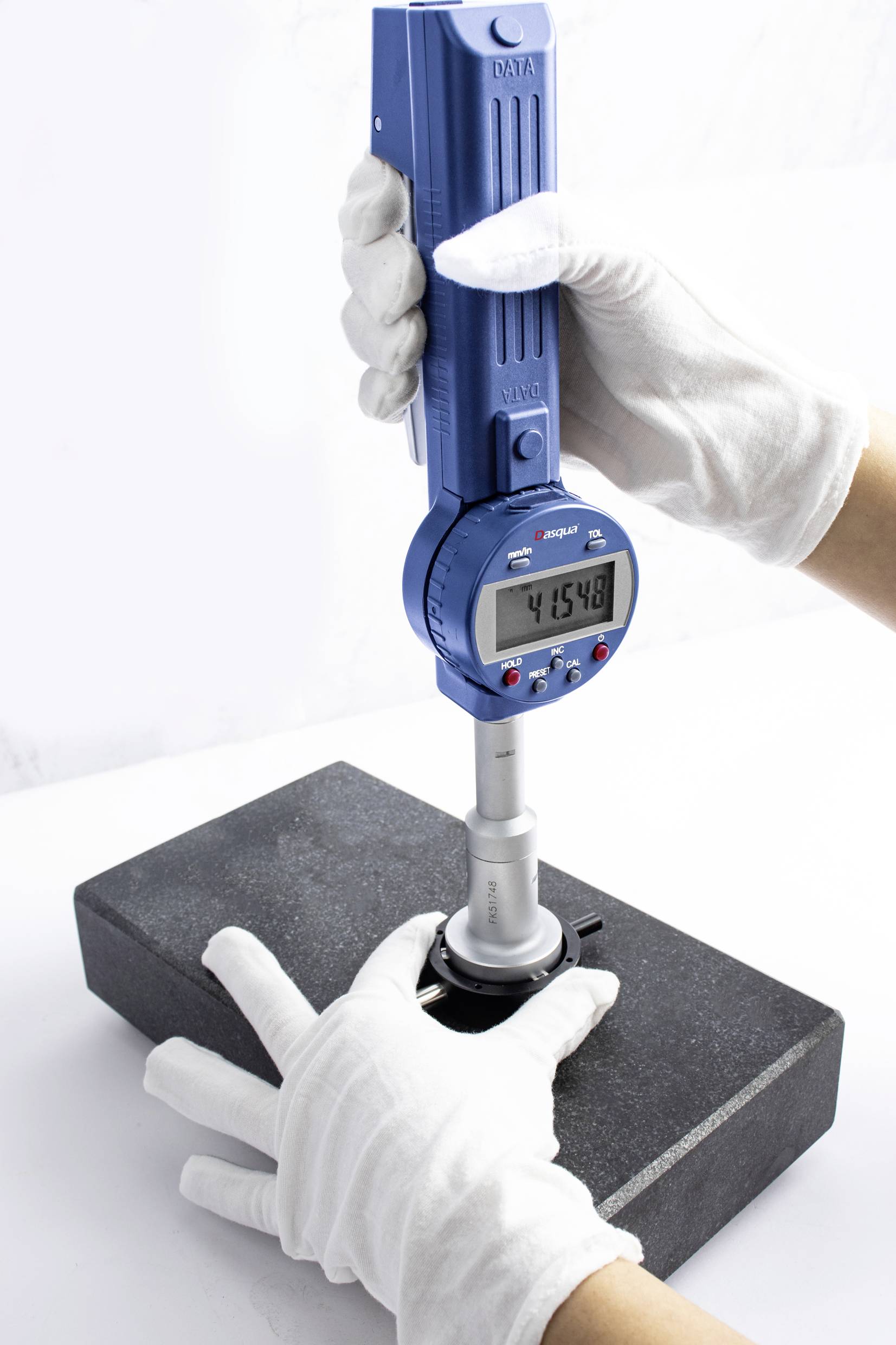

A gloved hand holds a digital measuring device over a black rectangular object. The display shows '41.548'.

1/7

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 345.00 / piece)

€ 345.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Dial gauge

Reading range: 8 - 10 mm

Reading range (min.): 8 mm

Reading range (max.): 10 mm

Length: 240 mm

Width: 180 mm

Dim: (L x W) 240 mm x 180 mm

Weight: 0.94 kg

: Manufacturer's standards (with certificate)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2986895 Dasqua 4700-1002 Digital 3-Point snap-open bore gauge 8 - 10 mm 1 pc(s)

Description

Each piece of 3-Point Bore Gauge is strictly tested with reliability for the Precision Measurement, manufacturing comply to the German DIN 863 standard
Dasqua Digital 3-Point Bore Gauge also has the same most advanced Original function.
With Dasqua Original Chips, no need to check zero point during use.
Rest assured for your measurement.
Can carry out GO/NO GO quick inspection of the product through the Tolerance button.
Highly durable carbide tipped contact points, suitable for blind holes.

Features

Designed with seven buttons instead of three, allowing operators to quickly switch functions without adjusting functions through complex buttons
With the HOLD button, the operator can avoid the loss of real data and prevent the careless touching
With display dial of rotating 330° function for easy reading at any angle

Scope of delivery

Digital 3-point bore gauge with snap lock (with 2x installed batteries CR2450, 550 mAh)
3x wrenches (2x for product assemble, 1x S-shape for battery replacement)
Ring gauge for calibration
User manual
Metal case

Description

Features

Designed with seven buttons instead of three, allowing operators to quickly switch functions without adjusting functions through complex buttons
With the HOLD button, the operator can avoid the loss of real data and prevent the careless touching
With display dial of rotating 330° function for easy reading at any angle

Scope of delivery

Digital 3-point bore gauge with snap lock (with 2x installed batteries CR2450, 550 mAh)
3x wrenches (2x for product assemble, 1x S-shape for battery replacement)
Ring gauge for calibration
User manual
Metal case
