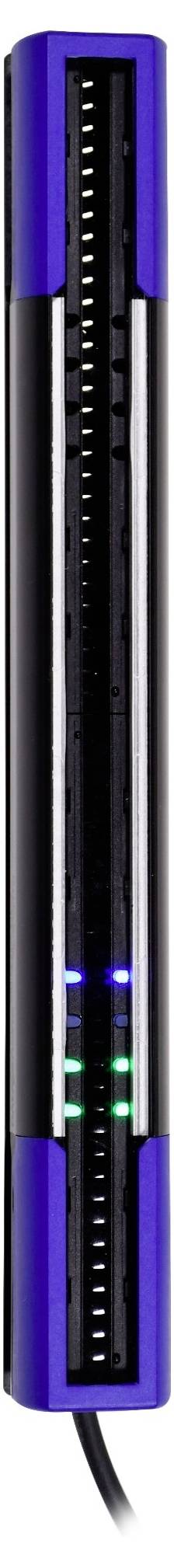

Datasensing Light grid DS4 Range (max.) 5 m Protective field height 1050 mm 24 V DC No. of rays: 210
Product type
Light grid
Length
40 mm
Height
1060.5 mm
Type
DS4
Model
Receiver
Transmitter
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
DS4 Standard Measuring Surface Grid - DS4 Series
- Versatile interfaces: IO-Link, analog (V/A) and RS485 communication
- High resolution with 5 mm beam distance and augmented resolution mode (2.5 mm)
- Wireless programming via APP GUI for extended setups
Our service for you
Technical specifications
- Housing material made of aluminum/PBT
- Product type
Light grid
- Type
DS4
- Model
Receiver
Transmitter
- Features
Incl. enclosure
- Operating voltage
24 V DC
- Min. operating voltage
19.2 V DC
- Max. operating voltage
28.8 V DC
- Operating voltage
19.2 - 28.8 V DC
- Max. current consumption
360 mA
- Response time
7.3 ms
- Switching voltage (max.)
28.8 V DC
- Switching current (max.)
100 mA
- Optical resolution
10 x 5 mm
- Smallest detectable object size (diameter)
10 mm
- Connector
M12 plug (5-pin)
M12 plug (8-pin)
- Cable length
0.2 m
- Transmitter type
LED IR
- Wavelength
850 nm
- Range (min.)
0.2 m
- Range (max.)
5 m
- Outputs
Digital
Analogue
RS485
IO link
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Output current
100 mA
- Certification (sensors)
CE
cULus
- Rays
210

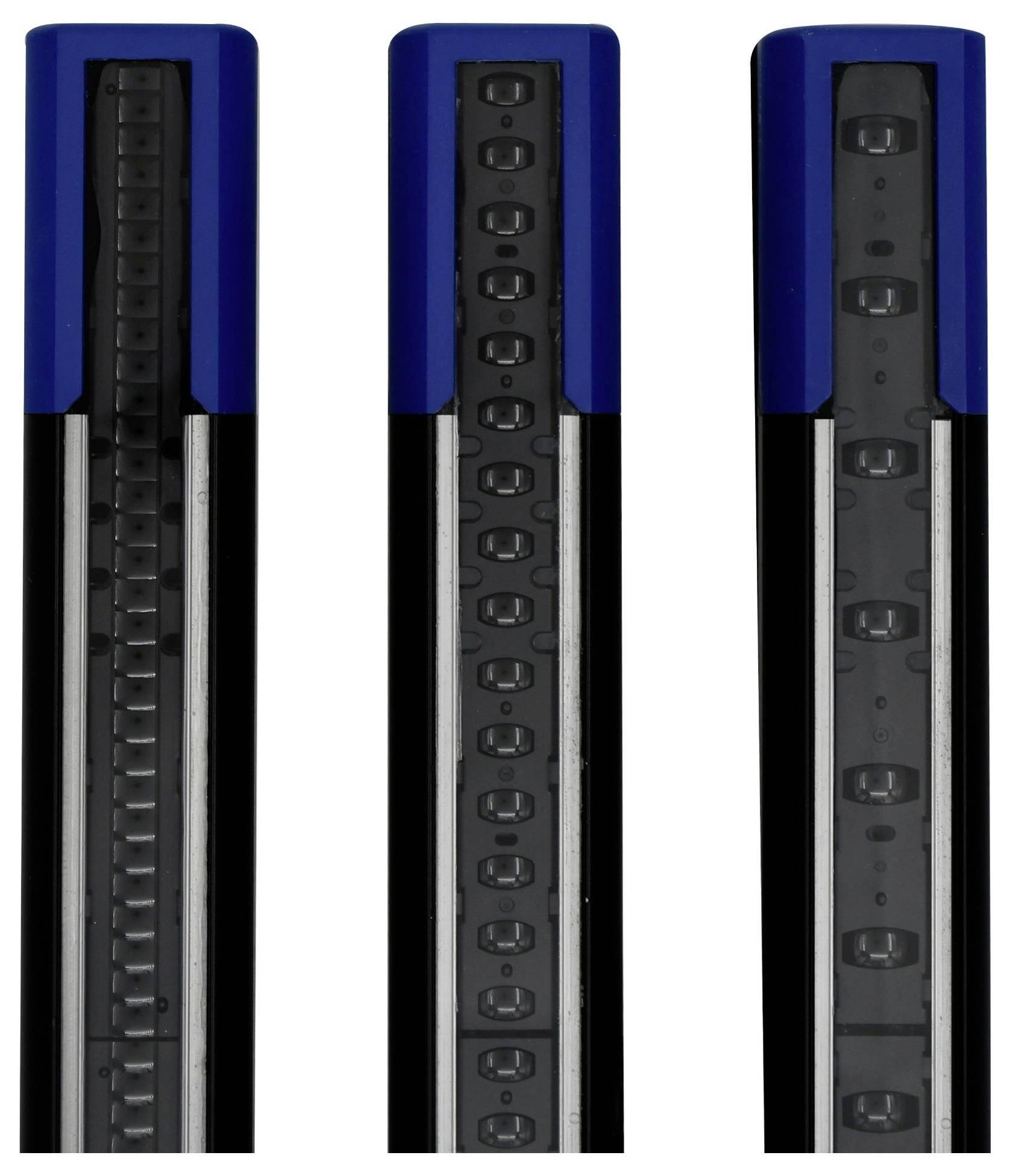

- Beam spacing
5 mm
- Protective field width (min.)
200 mm
- Protective field width (max.)
5000 mm
- Protective field height
1050 mm
- Alu rail height
1060.5 mm
- Total height
1060.5 mm
- Content
1 pc(s)
IP65
IP67
- Length
40 mm
- Width
35 mm
- Height
1060.5 mm
- Dim
(L x W x H) 40 x 35 x 1060.5 mm
- Min. temperature
-30 °C
- Max. temperature
55 °C
- Nominal voltage
24 V DC
Documents & Downloads
Datasheet
Datasheet 3760023 Datasensing Light grid DS4 Range (max.) 5 m Protective field height 1050 mm 24 V DC No. of rays: 210
User & Safety Instructions
User & Safety Instructions 3760023 Datasensing Light grid DS4 Range (max.) 5 m Protective field height 1050 mm 24 V DC No. of rays: 210
Description
The DS4 standard is a versatile area sensor for demanding detection and measurement tasks, which can be conveniently configured via IO-Link or Wi-Fi and offers functions such as the detection of transparent objects.
This text is machine translated.
This text is machine translated.

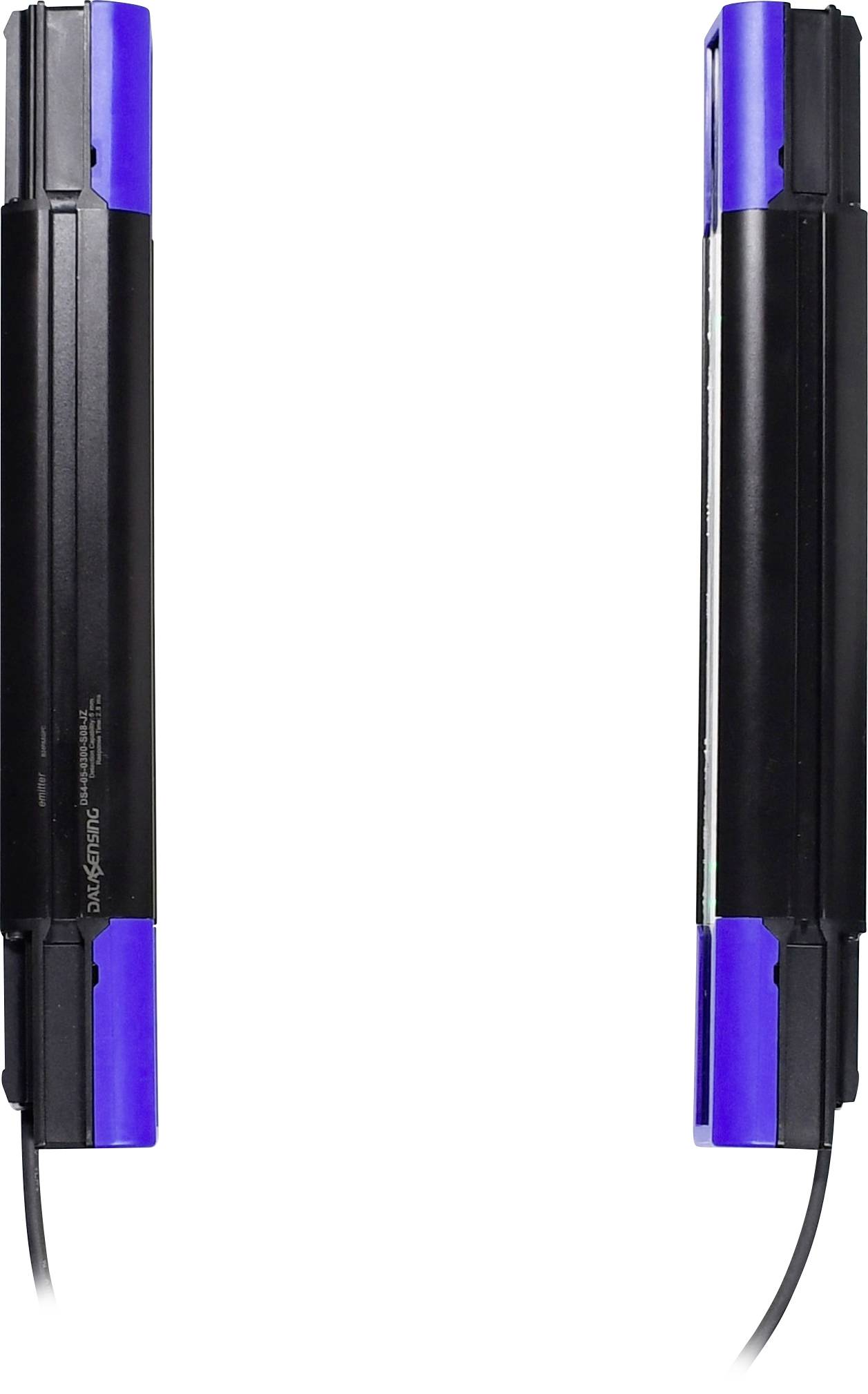

Scope of delivery
- EMitter (transmitter)
- Receivers
