Datasensing Smart-VS-MR-5-150-WH-O Vision sensor 1 pc(s) 10 - 30 V DC (L x W x H) 38 x 47 x 58 mm

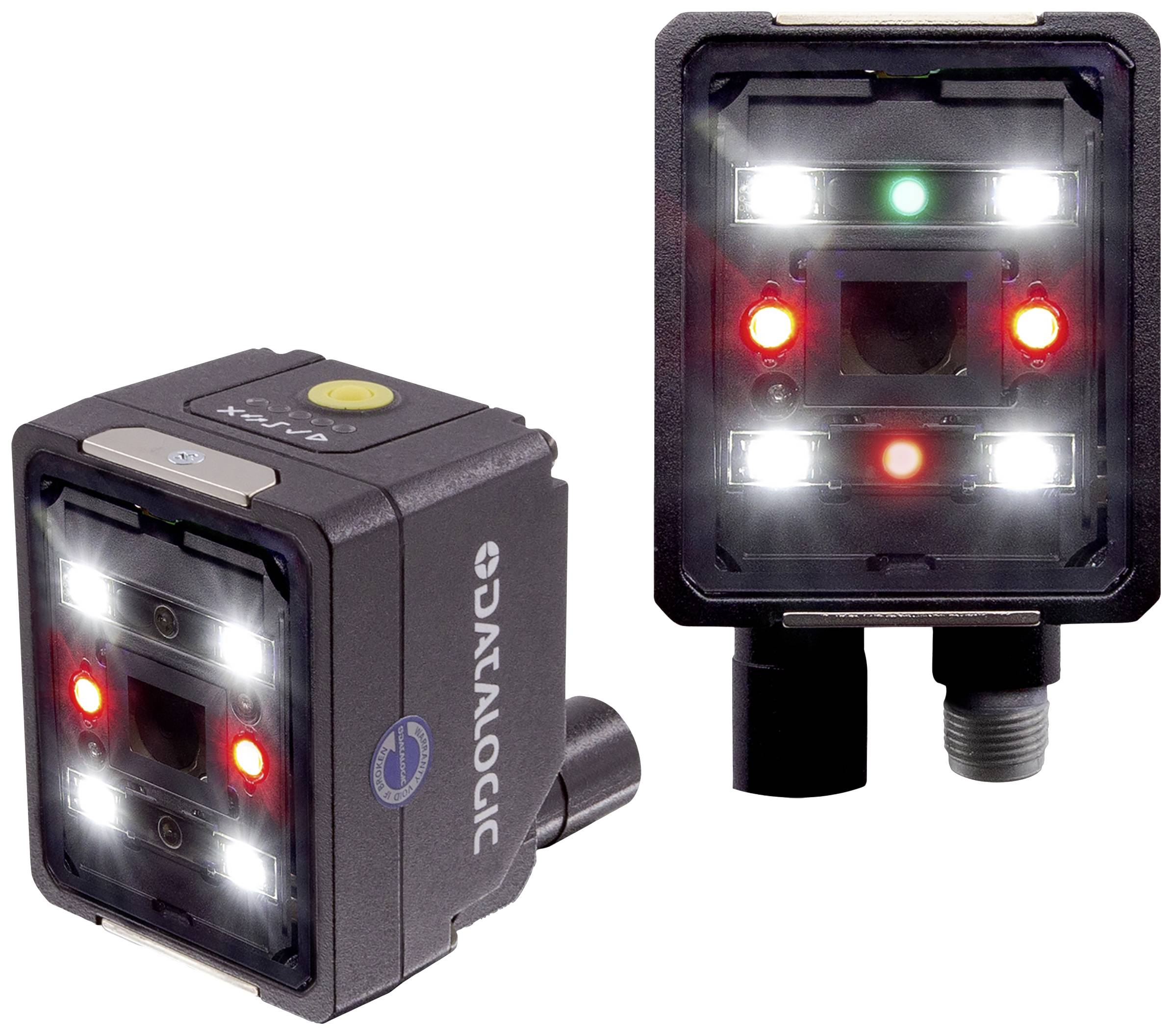

Two compact barcode scanners: one in perspective on the left, one frontal on the right. LED indicators: green, red. Brand name 'Datalogic' visible.

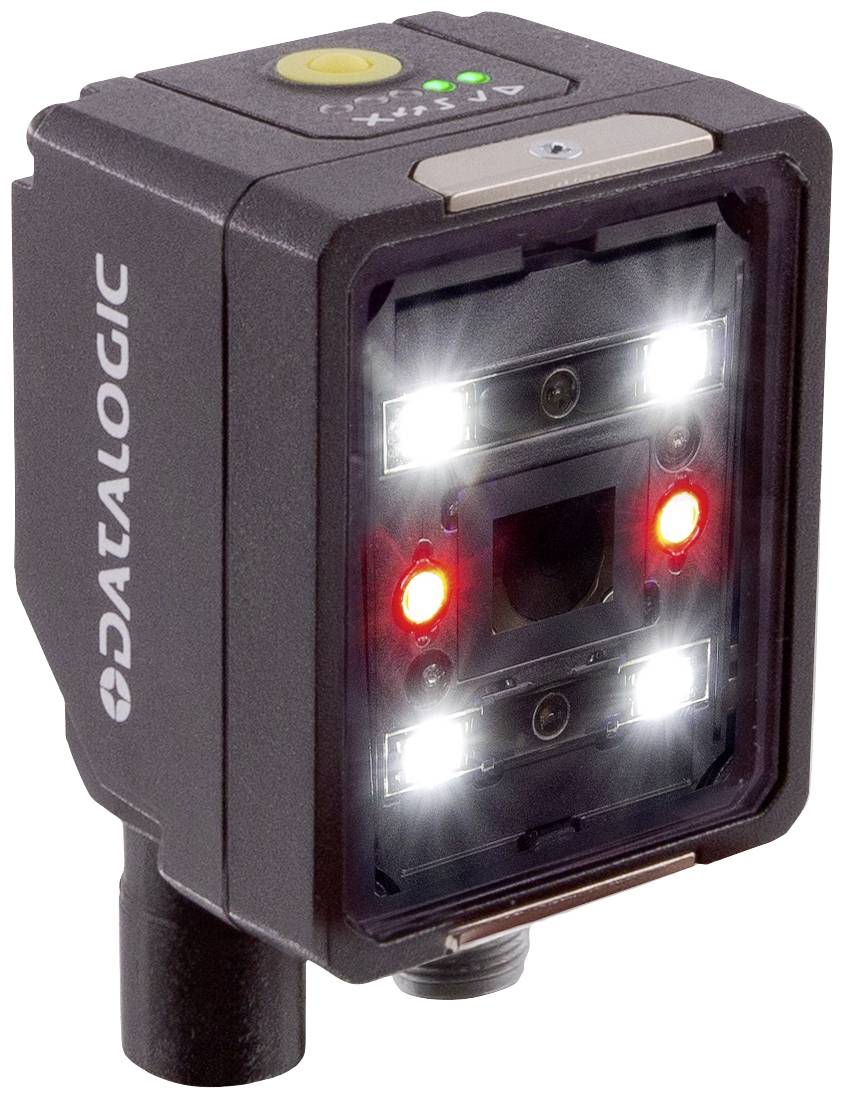

A rectangular, electronic device with multiple illuminated LEDs on the front, brand 'Datalogic'.
1/2
Product type
Vision sensor
Type
Smart-VS-MR-5-150-WH-O
Content
1 pc(s)
Min. operating voltage
10 V DC
Max. operating voltage
30 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Smart Smart-VS-MR-5-150-WH-O

  • Attitude with the help of machine learning
  • No programming of Vision tools required
  • Quick and easy adjustment as with a standard photo sensor
  • Deterministic response time
  • Simple and intuitive WEB server GUI for maintenance and job setup
  • This text is machine translated.

Technical specifications

  • Measurement range 50 - 150 mm
  • Frame rate (FPS): 20
  • Switching frequency 50 ms
  • Mono/color: Monochrome
Product type

Vision sensor

Type

Smart-VS-MR-5-150-WH-O

Content

1 pc(s)

Min. operating voltage

10 V DC

Max. operating voltage

30 V DC

Operating voltage

10 - 30 V DC

Length

38 mm

Width

47 mm

Height

58 mm

Dim

(L x W x H) 38 x 47 x 58 mm

Interfaces

Ethernet

Transfer rate

10 / 100 MBit/s

Documents & Downloads

Datasheet

Datasheet 2995922 Datasensing Smart-VS-MR-5-150-WH-O Vision sensor 1 pc(s) 10 - 30 V DC (L x W x H) 38 x 47 x 58 mm

User & Safety Instructions

User & Safety Instructions 2995922 Datasensing Smart-VS-MR-5-150-WH-O Vision sensor 1 pc(s) 10 - 30 V DC (L x W x H) 38 x 47 x 58 mm
