Name: DEHN 105200 DBS KB D40.50 RA560 STTZN Current arrester 1 pc(s)
Brand: DEHN
SKU: 2750117

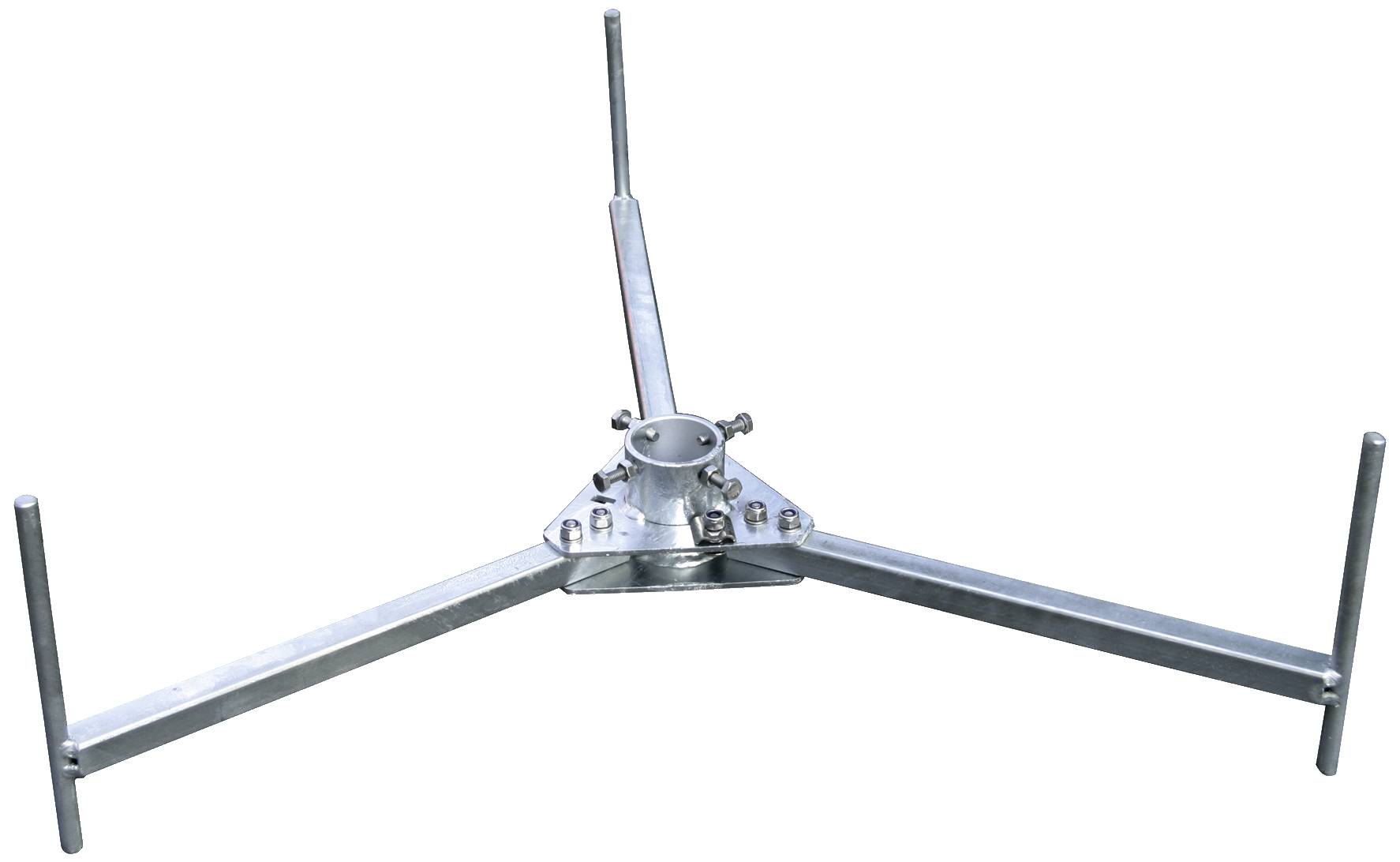

Metal tripod head with three foldable arms, each carrying posts at the end, suitable for constructions or installations.

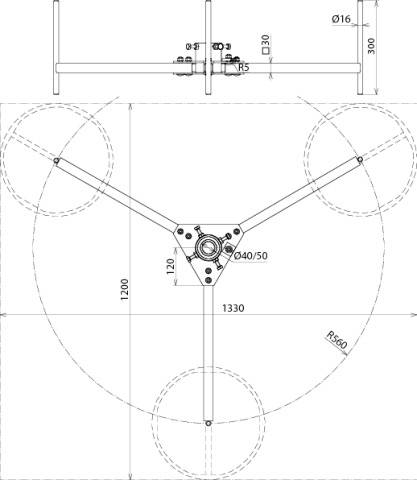

Technical drawing of a mounting bracket with dimensions. Shows top and side views with details of measurements and connections.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Current arrester

Manufacturer part #: 105200

Content: 1 pc(s)

: Tripod

: Hot-dip galvanized

: 9.6 kg

: 1120 mm

: Steel

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750117 DEHN 105200 DBS KB D40.50 RA560 STTZN Current arrester 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750117 DEHN 105200 DBS KB D40.50 RA560 STTZN Current arrester 1 pc(s)

Information

Information 2750117 DEHN 105200 DBS KB D40.50 RA560 STTZN Current arrester 1 pc(s)

Description

Tripod stand for the free construction of support pipes DEHNISO-Combi (D50 length 3200 mm) or support rods D40 (length 3000mm). For installation with concrete bases with wedge technology, without additional attachment to construction elements. With adaptation to the roof inclination up to max. 10°. Folding design.

This text is machine translated.
