Name: DEHN 105201 DBS KB D40.50 RA1435 STTZN Tripod 1 pc(s)
Brand: DEHN
SKU: 2750652

A three-legged metal bracket with adjustable arms, possibly part of an antenna or tripod structure.

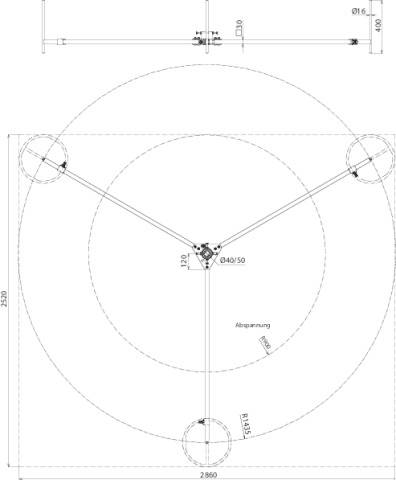

Technical drawing of a circular structure with three radial supports. Dimensions and details labelled.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Tripod

Manufacturer part #: 105201

Content: 1 pc(s)

: Tripod

: Hot-dip galvanized

: 17.23 kg

: 2870 mm

: Steel

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750652 DEHN 105201 DBS KB D40.50 RA1435 STTZN Tripod 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750652 DEHN 105201 DBS KB D40.50 RA1435 STTZN Tripod 1 pc(s)

Information

Information 2750652 DEHN 105201 DBS KB D40.50 RA1435 STTZN Tripod 1 pc(s)

Description

Tripod stand for the free construction of support tubes DEHNISO-Combi (D50 length 3200 mm). For installation with concrete bases with wedge technology, without additional attachment to construction elements. With adaptation to the roof inclination up to max. 10°. Design folding, especially for the inner laid HVI cable in the support pipe. To maintain the bend radius of the HVI cable at the bottom of the tripod stand, two concrete bases are positioned below the leg and one above.
