Name: DEHN 106180 DIDH 16 675 V2A GFK16 Fittings 1 pc(s)
Brand: DEHN
SKU: 2750046

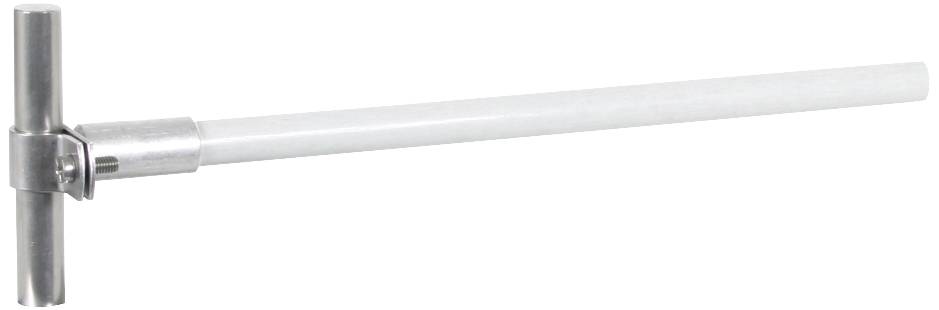

A metal T-aerial rod, horizontal configuration, with a long, white plastic handle. Suitable for FM or TV signals.

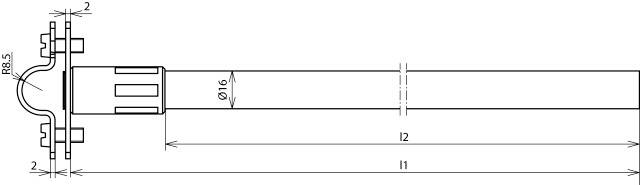

Technical drawing of a pipe with flange and dimensions. Diameter Ø16, length l1 greater than l2. Flange with four bolts.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Fittings

Manufacturer part #: 106180

Content: 1 pc(s)

: 675 mm

: 16.0-16.0 mm

: Stainless steel V2A

: 595 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750046 DEHN 106180 DIDH 16 675 V2A GFK16 Fittings 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750046 DEHN 106180 DIDH 16 675 V2A GFK16 Fittings 1 pc(s)

Information

Information 2750046 DEHN 106180 DIDH 16 675 V2A GFK16 Fittings 1 pc(s)

Description

Spacer with rod holder for attachment of catching bars. To maintain the separation distance in accordance with DIN EN 62305-3 (VDE 0185-305-3). Made of glass-fiber reinforced plastic (GRP) D16 mm, UV-stabilized, color light gray, material factor km = 0.7. Can be combined with the various lower sections, fixed cable routing.

This text is machine translated.
