Name: DEHN 106246 DIDH 16 690 SB50.300 V2A Fittings 1 pc(s)
Brand: DEHN
SKU: 2750778

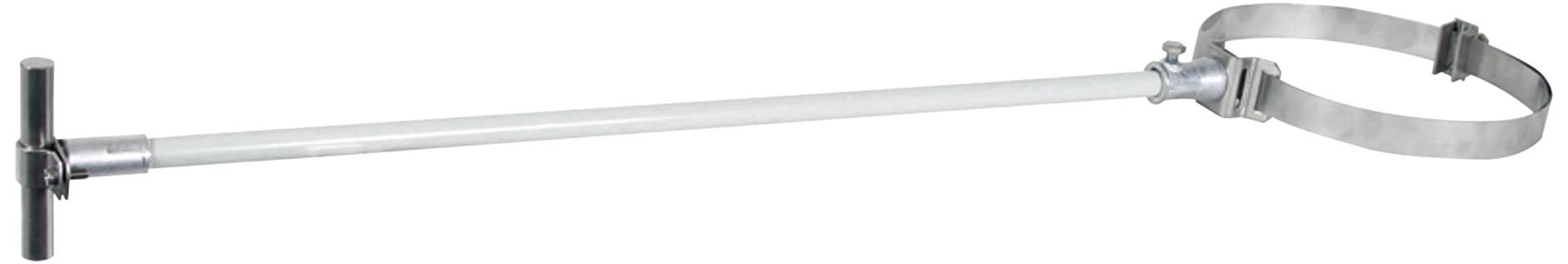

A white, elongated metal lever with a T-handle and an adjustable ring at the other end, possibly a plumbing installation tool.

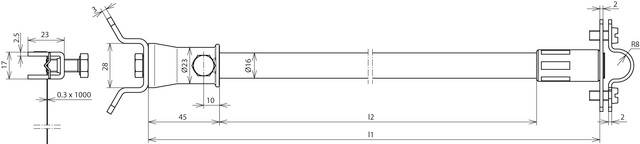

Technical drawing of an axle with dimensions and details such as nuts, bolts, and connections. Measurements in millimetres.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Fittings

Manufacturer part #: 106246

Length: 690 mm

Content: 1 pc(s)

: 690 mm

: 16.0-16.0 mm

: Stainless steel V2A

: 605 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750778 DEHN 106246 DIDH 16 690 SB50.300 V2A Fittings 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750778 DEHN 106246 DIDH 16 690 SB50.300 V2A Fittings 1 pc(s)

Information

Information 2750778 DEHN 106246 DIDH 16 690 SB50.300 V2A Fittings 1 pc(s)

Description

Distance holder for catching bars for maintaining the separation distance according to DIN EN 62305-3 (VDE 0185-305-3). Distance rod made of glass-fiber reinforced plastic (GRP) D16 mm, UV-stabilized, color light-gray, material factor km= 0.7. Design with rod holder (fixed cable routing) and band-pipe clamp (clamping range D50-300 mm).

This text is machine translated.
