Name: DEHN 107391 DBS KB D50 RA1330 V2A Tripod 1 pc(s)
Brand: DEHN
SKU: 2750141

Metal framework for tent construction, consisting of three triangles connected by poles. Used for stable tent structure.

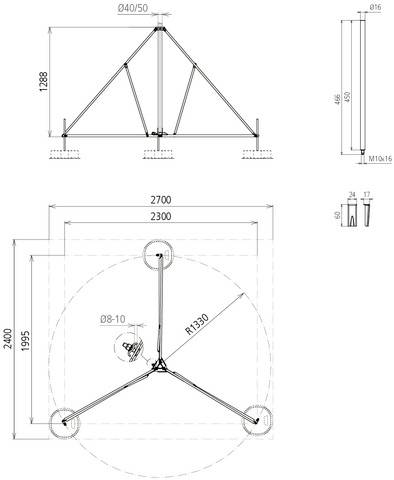

Technical drawing of a three-legged stand with dimensions. Shows heights and radii of the structure, including detailed specification of tubes and bolts.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Tripod

Manufacturer part #: 107391

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750141 DEHN 107391 DBS KB D50 RA1330 V2A Tripod 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750141 DEHN 107391 DBS KB D50 RA1330 V2A Tripod 1 pc(s)

Information

Information 2750141 DEHN 107391 DBS KB D50 RA1330 V2A Tripod 1 pc(s)

Description

Tripod stand (foldable version) for support pipes D 50 mm with side outlet or catching rod D 40 mm with reduction accessories. With double overlay for the connection 2x Rd 8-10 mm, for setting up with concrete base (weight 17 kg) with adjustment by means of socket holder set on the roof inclination up to max. 10°.

This text is machine translated.
