Name: DEHN 204170 DLH DS 8 H36 L205 GR AL Roof cable holder 1 pc(s)
Brand: DEHN
SKU: 2750706

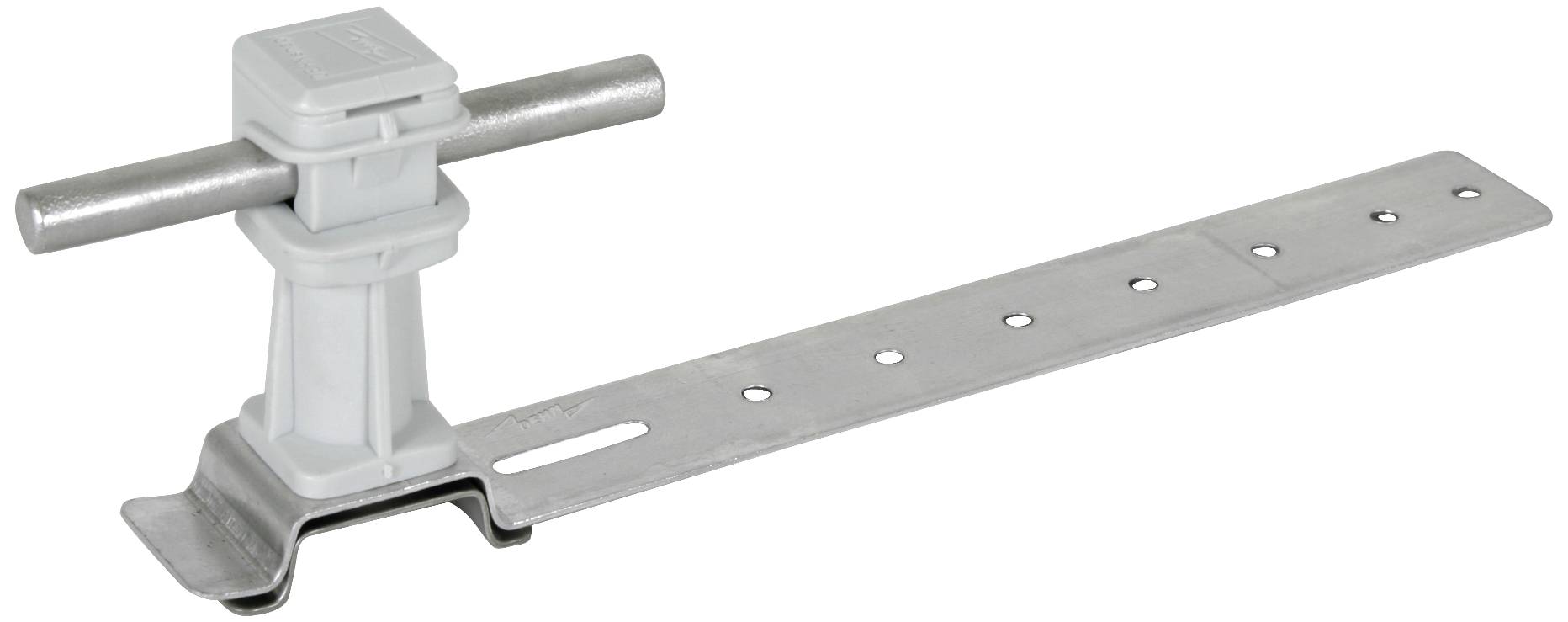

A silver metal band with holes and a white plastic lifting mechanism at the end. Used for securing or fastening.

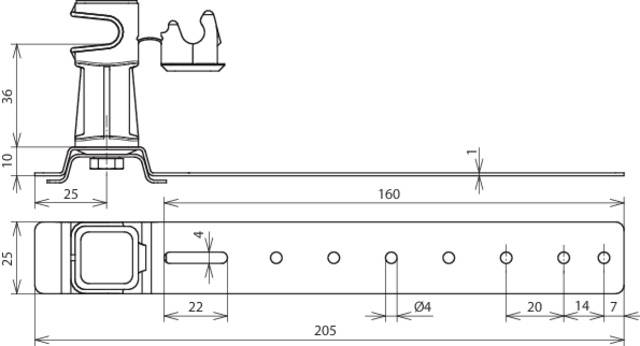

Technical drawing of a metal band with dimensions in millimetres: width 25, length 205, with hole spacing of 20 mm. A fastening element is shown at the top.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Roof cable holder

Manufacturer part #: 204170

Length: 205 mm

Height: 36 mm

Content: 1 pc(s)

: To hang in

: Roof surface pitched

: With snap clamp

: 205 mm

: 8.0-8.0 mm

: Plastic

: Aluminium

: 36 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750706 DEHN 204170 DLH DS 8 H36 L205 GR AL Roof cable holder 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750706 DEHN 204170 DLH DS 8 H36 L205 GR AL Roof cable holder 1 pc(s)

Information

Information 2750706 DEHN 204170 DLH DS 8 H36 L205 GR AL Roof cable holder 1 pc(s)

Description

Roof pipe holder DEHNsnap with aluminum base strut for the attachment of traps and drains for roof surfaces. Design for easy contact to the pleats of the roofing tiles / roofing tiles, with DEHNgrip cable holder, loose cable guidance, made of weather-resistant plastic, UV-stabilized and halogen-free.

This text is machine translated.
