Name: DEHN 204187 DLH US 8 H36 L335 BR GALCU Roof cable holder 1 pc(s)
Brand: DEHN
SKU: 2750714

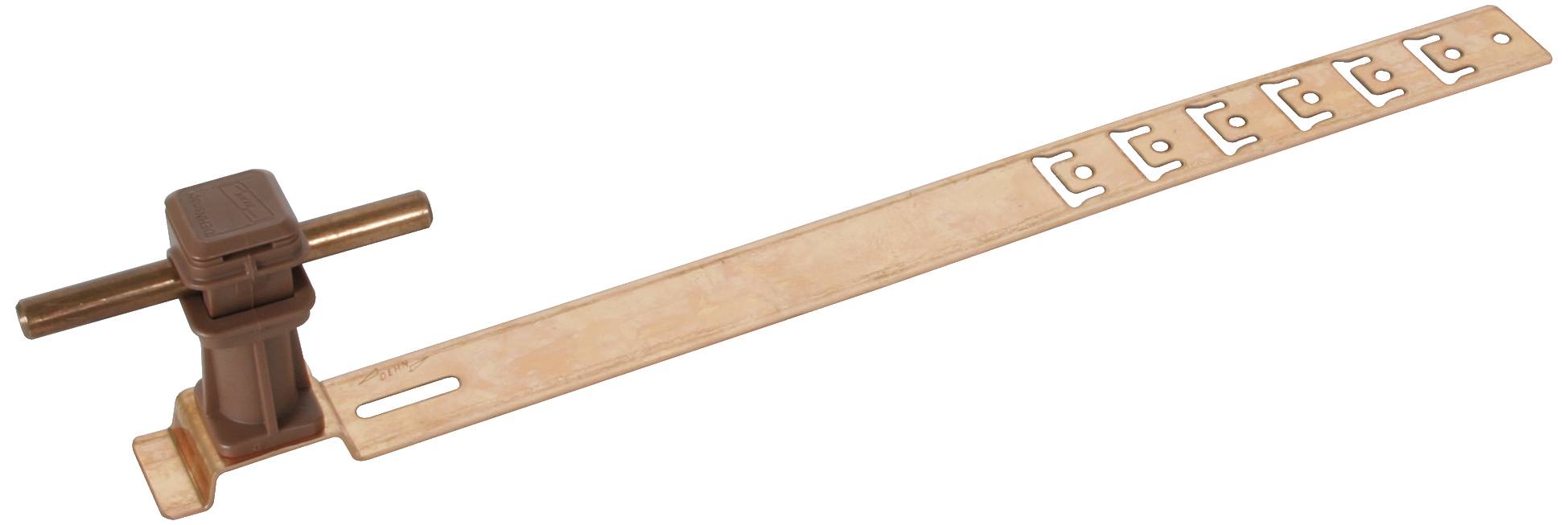

A copper earth strap with a long strip and multiple holes for fastenings, used for earthing electrical systems.

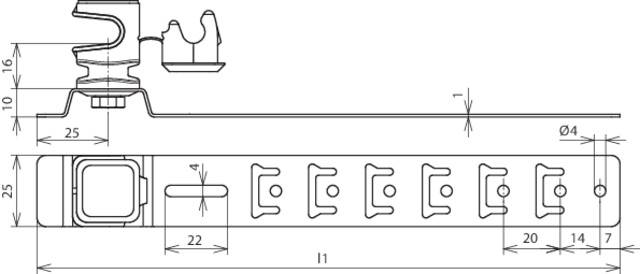

Technical drawing of an assembly system with dimensions. Main view shows mounting bracket and strut with detailed view of anchoring points.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Roof cable holder

Manufacturer part #: 204187

Height: 36 mm

Content: 1 pc(s)

: To hang in

: Roof surface pitched

: With snap clamp

: 335 mm

: 8.0-8.0 mm

: Plastic

: Copper

: 36 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750714 DEHN 204187 DLH US 8 H36 L335 BR GALCU Roof cable holder 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750714 DEHN 204187 DLH US 8 H36 L335 BR GALCU Roof cable holder 1 pc(s)

Information

Information 2750714 DEHN 204187 DLH US 8 H36 L335 BR GALCU Roof cable holder 1 pc(s)

Description

Roof pipe holder UNIssnap with embossed strut for attachment of catches and leads for roof surfaces. Design with pre-formed bending points for bending and hanging in the roof tile/roof or in the roof lattices, with cable holder DEHNsnap mounting height 36 mm, loose cable guide, made of weather-proof plastic, UV-stabilized and halogen-free.

This text is machine translated.
