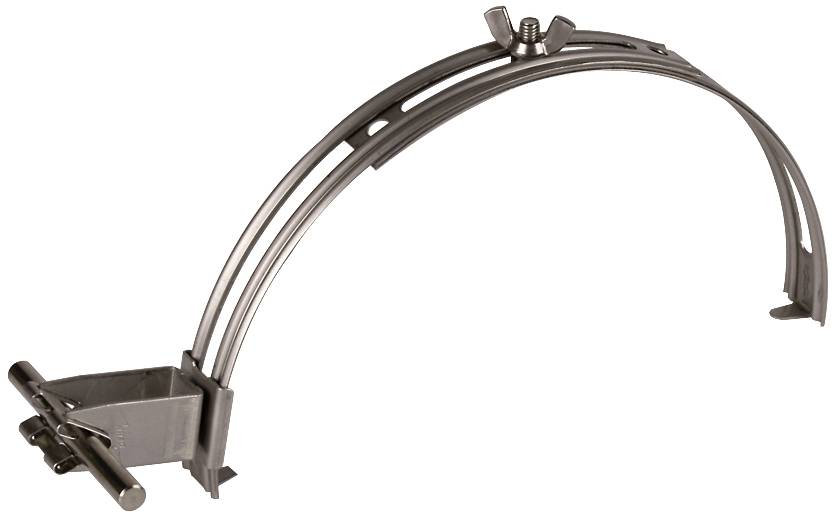

Name: DEHN 206819 DLH DG 8 H32 FG180.280 KK V2A Roof cable holder 1 pc(s)
Brand: DEHN
SKU: 2750605

A metal frame with multiple arches, likely part of a mechanical or industrial device, against a white background.

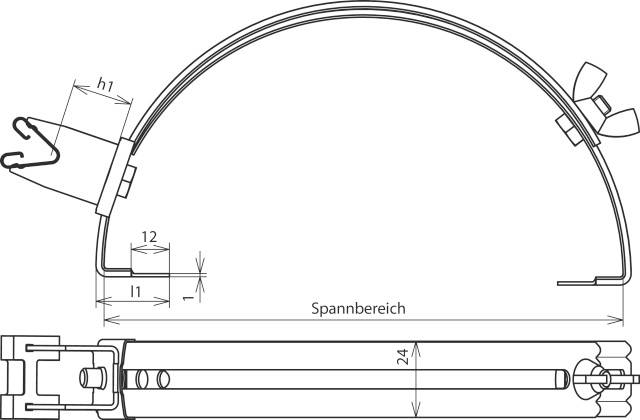

Technical drawing of a clamp with clamping range, wing screw and dimensions h1, l1 and 12 mm for installation instructions.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Roof cable holder

Manufacturer part #: 206819

Height: 32 mm

Content: 1 pc(s)

: Stretchable

: Ridge/hip

: 180.0-280.0 mm

: With grip clamp

: 8.0-8.0 mm

: Stainless steel V2A

: Stainless steel V2A coppered

: 32 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2750605 DEHN 206819 DLH DG 8 H32 FG180.280 KK V2A Roof cable holder 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750605 DEHN 206819 DLH DG 8 H32 FG180.280 KK V2A Roof cable holder 1 pc(s)

Information

Information 2750605 DEHN 206819 DLH DG 8 H32 FG180.280 KK V2A Roof cable holder 1 pc(s)

Description

Roof line holder constantly adjustable with cable holder DEHNgrip, for the attachment of catching lines on the firstbrick e.g. B. In tile roofs. With loose cable routing, adjustable from side (center to bottom on top).

This text is machine translated.
