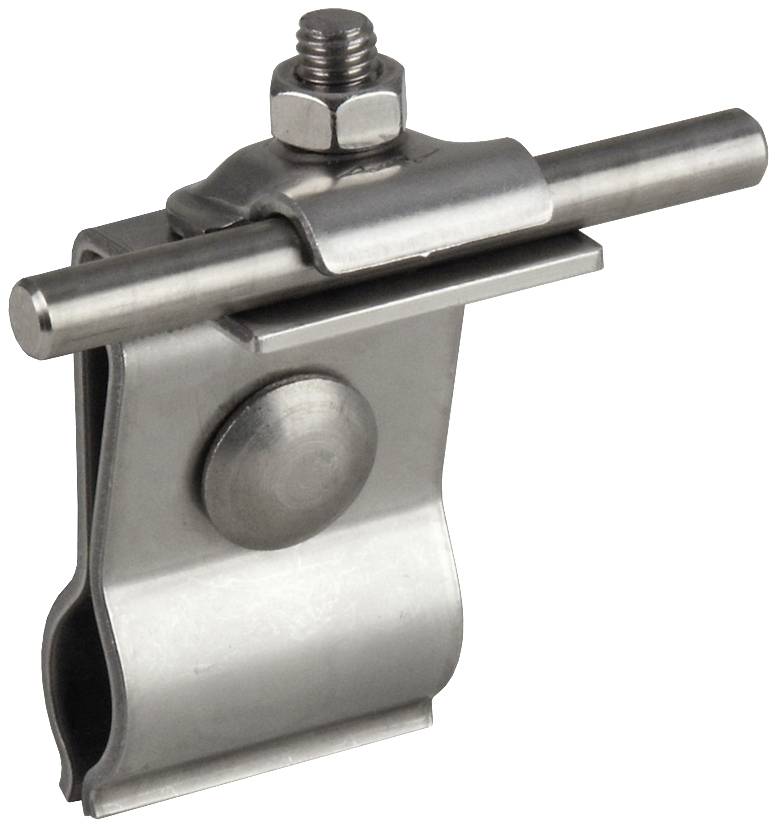

DEHN 223010 DLH KB 6.10 RSF20.25 V2A Roof cable holder 100 kA 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Roof cable holder
- Leakage current
100 kA
- Manufacturer part #
223010
- Content
1 pc(s)
Screwable
Metal roof
With screw clamp
42 mm
6.0-10.0 mm
Stainless steel V2A
Stainless steel V2A
52 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2750676 DEHN 223010 DLH KB 6.10 RSF20.25 V2A Roof cable holder 100 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2750676 DEHN 223010 DLH KB 6.10 RSF20.25 V2A Roof cable holder 100 kA 1 pc(s)
Information
Information 2750676 DEHN 223010 DLH KB 6.10 RSF20.25 V2A Roof cable holder 100 kA 1 pc(s)
Description
Roof line holder for the attachment of additional catching equipment like ventilation lines or catching bars on metal roofs. Design for round stakes roofs, with terminal block. When using two for the appropriate roof profile of the tested roof line holders (clamps / terminal block) the lightning current carrying capacity is given with 100 kA (10/350 µs).
