Name: DEHN 253051 DLH KF2 8 LO 141X86X70 Roof cable holder 1 pc(s)
Brand: DEHN
SKU: 2750708

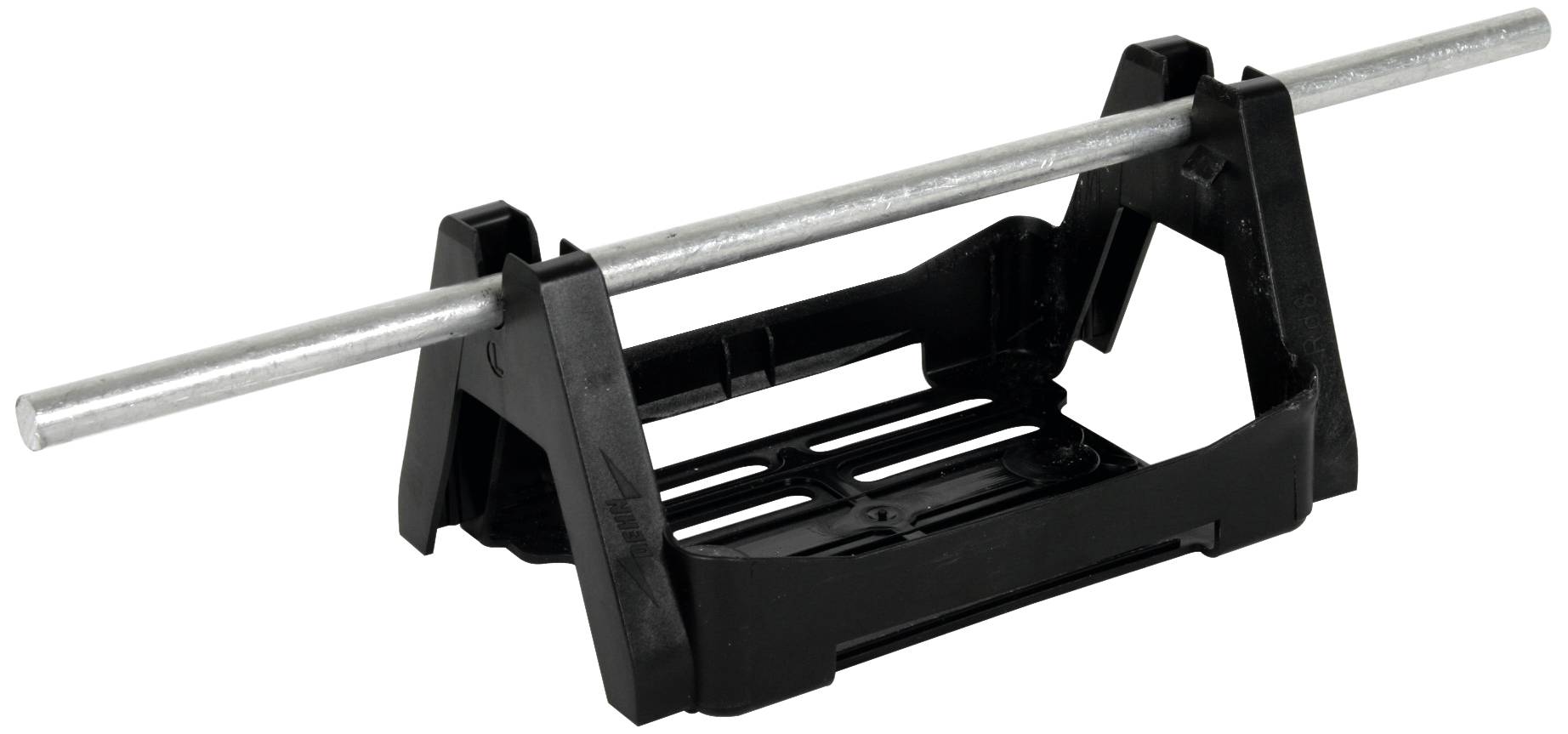

A black plastic holder supports a metal rod horizontally.

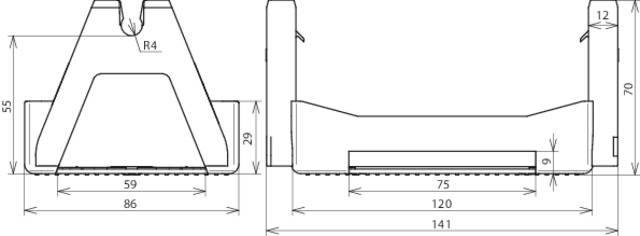

Technical Drawing of a Holder with Dimensions: Height 70, Width 141, Depth 86. Side and front views with specific measurements.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Roof cable holder

Manufacturer part #: 253051

Content: 1 pc(s)

: Clampable

: Flat roof

: With snap clamp

: 141 mm

: 8.0-8.0 mm

: Plastic

: Plastic

: 55 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2750708 DEHN 253051 DLH KF2 8 LO 141X86X70 Roof cable holder 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750708 DEHN 253051 DLH KF2 8 LO 141X86X70 Roof cable holder 1 pc(s)

Information

Information 2750708 DEHN 253051 DLH KF2 8 LO 141X86X70 Roof cable holder 1 pc(s)

Description

Roof line holder with double cable holder type KF2, for clamping into roof rails (strength up to 5 mm), which is welded or glued to the roof rail. For mounting round conductors with loose cable routing on flat roofs. Design with base plate made of weather-resistant plastic, UV-stabilized and halogen-free.

This text is machine translated.
