Name: DEHN 301229 AP 2X6.10 V2A Connector plate 1 pc(s)
Brand: DEHN
SKU: 2750640

Metallic hinge with two cylindrical bearings and a continuous rod, used for industrial applications.

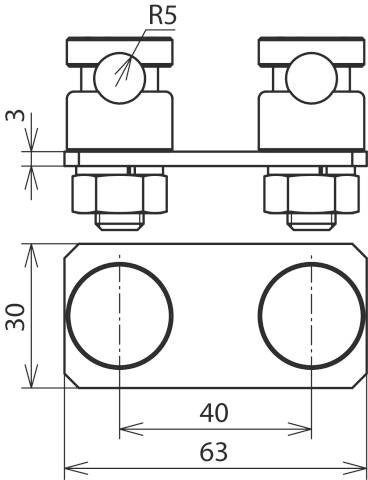

Technical drawing of a mechanical connection with two bolts and nuts; dimensions: width 63 mm, bore diameter 30 mm, radius 5 mm.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Connector plate

Manufacturer part #: 301229

Content: 1 pc(s)

: Untreated

: Connector

: Clamp screw

: Stainless steel V2A

: 100 kA

: 6.0-10.0 mm

: 6.0-10.0 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750640 DEHN 301229 AP 2X6.10 V2A Connector plate 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750640 DEHN 301229 AP 2X6.10 V2A Connector plate 1 pc(s)

Information

Information 2750640 DEHN 301229 AP 2X6.10 V2A Connector plate 1 pc(s)

Description

Connection plate for connection of the HVI cable to the catch tip (D10 mm) with two KS connectors. Can also be used as clamping screw connector according to DIN EN 62561-1, for the lightning-carrying connection of round conductors. Design two-part as connector distance 40 mm, with screw and nut M10.

This text is machine translated.
