Name: DEHN 318203 KS 8.10 8.10 FL30 ZP FRSM8 STTZN X piece
Brand: DEHN
SKU: 2750114

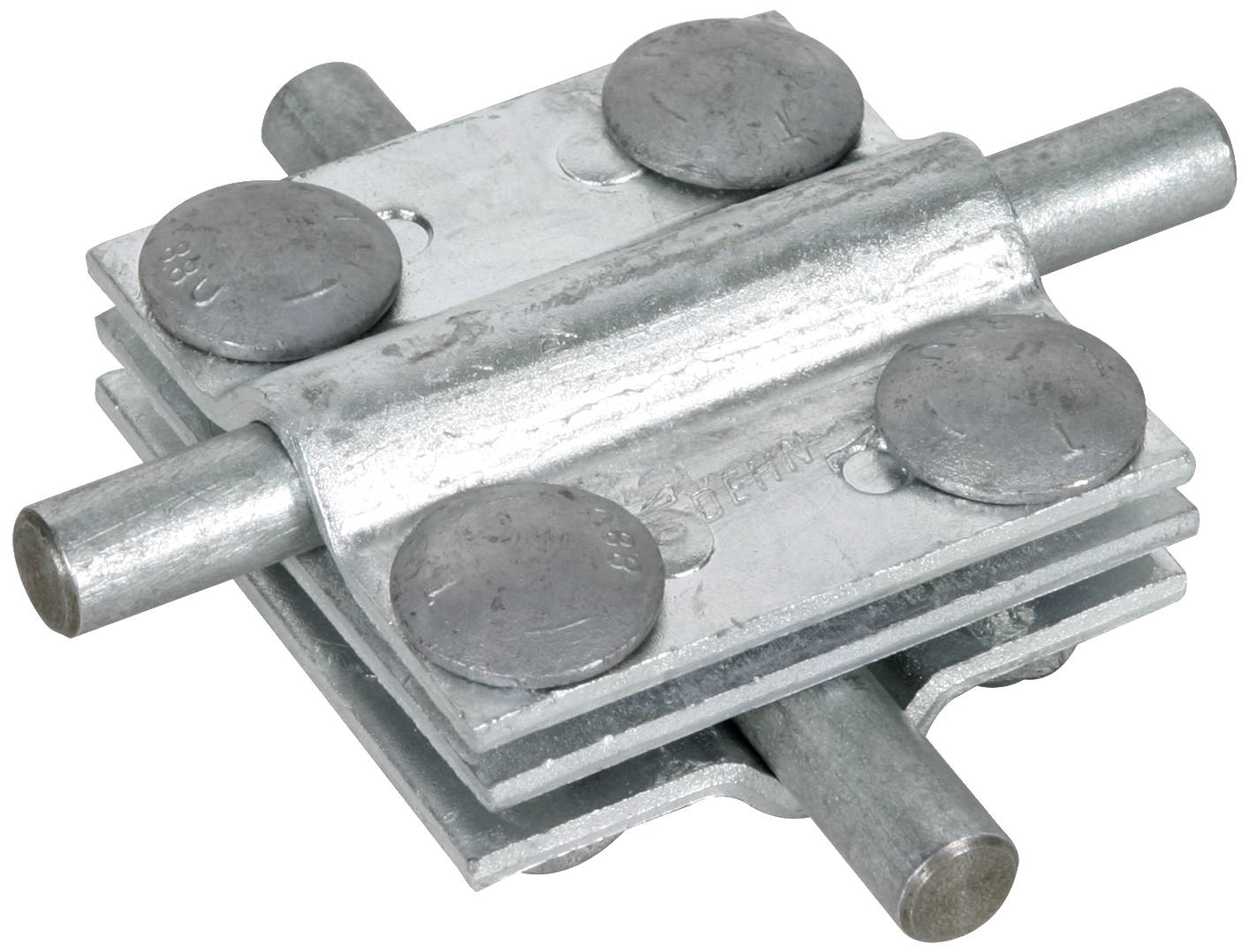

Metallic connecting elements, consisting of two overlapping plates with four screws that hold together two vertical rods.

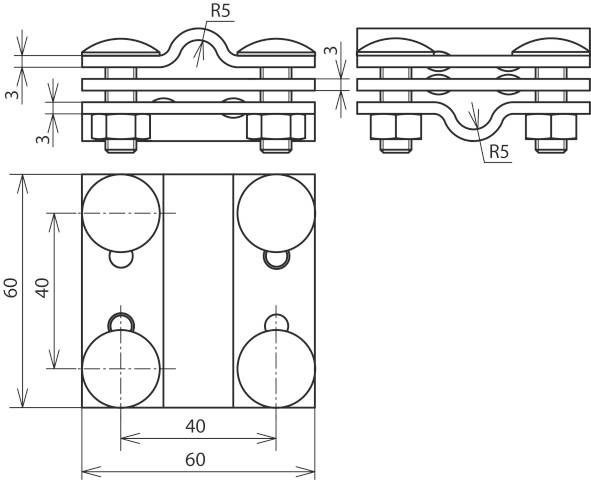

Technical drawing of a metal connector with dimensions: 60x60mm, thickness 40mm. Side and top views show screw positions and bends (R5).

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: X piece

Manufacturer part #: 318203

Content: 1 pc(s)

: Cross connector

: Flat round screw

: Steel

: 100 kA

: 8.0-10.0 mm

: 30.0-30.0 mm

: 8.0-10.0 mm

: 30.0-30.0 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750114 DEHN 318203 KS 8.10 8.10 FL30 ZP FRSM8 STTZN X piece

User & Safety Instructions

User & Safety Instructions 2750114 DEHN 318203 KS 8.10 8.10 FL30 ZP FRSM8 STTZN X piece

Information

Information 2750114 DEHN 318203 KS 8.10 8.10 FL30 ZP FRSM8 STTZN X piece

Description

Cross piece according to DIN EN 62561-1, for above and underground connection of round and flat conductors Design with intermediate plate and M8 screws.

This text is machine translated.

Description

Cross piece according to DIN EN 62561-1, for above and underground connection of round and flat conductors Design with intermediate plate and M8 screws.
