Name: DEHN 390250 MMVK 6.8 FRM10X35 STTZN Multi-purpose connector 1 pc(s)
Brand: DEHN
SKU: 2750308

Metal element with cross-arranged pipes and a round button in the centre.

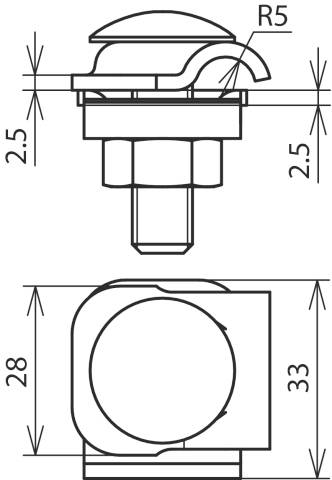

Technical drawing of a fastening element with two views: Side view shows dimensions 2.5, 28, 33 and radius R5; Top view shows circular structure.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Multi-purpose connector

Manufacturer part #: 390250

Content: 1 pc(s)

: T-/cross-/parallel connector

: Flat round screw

: Steel

: 100 kA

: 6.0-8.0 mm

: 6.0-8.0 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750308 DEHN 390250 MMVK 6.8 FRM10X35 STTZN Multi-purpose connector 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750308 DEHN 390250 MMVK 6.8 FRM10X35 STTZN Multi-purpose connector 1 pc(s)

Information

Information 2750308 DEHN 390250 MMVK 6.8 FRM10X35 STTZN Multi-purpose connector 1 pc(s)

Description

Mini multi-purpose connection terminal in accordance with DIN EN 62561-1, for universal use as cross terminal, T terminal and parallel terminal of round conductors. Two-part design with round-head screw and anti-twist protection.

This text is machine translated.
