Name: DEHN 390550 MVK 8.10 SKM10X30 FSC STTZN MV connector 1 pc(s)
Brand: DEHN
SKU: 2750288

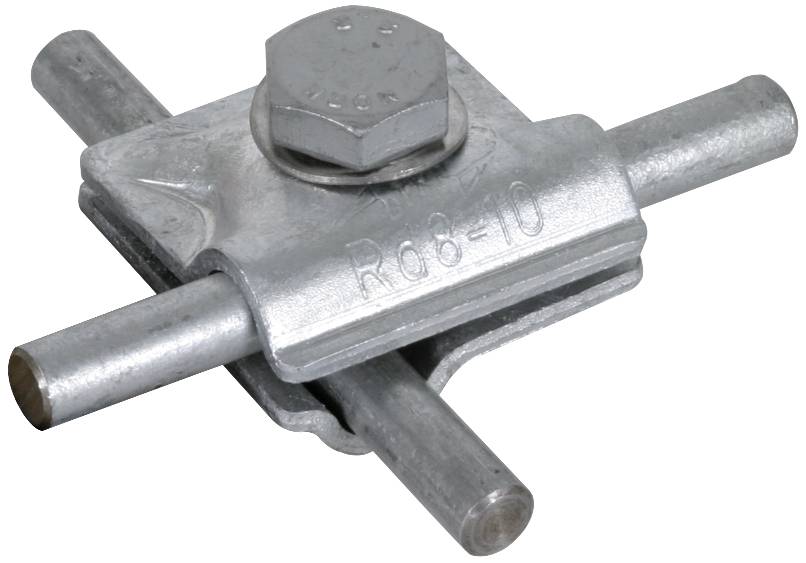

Metallic clamping system with two crossed bars, secured by a screw at the top. Inscription 'R 08-10' visible.

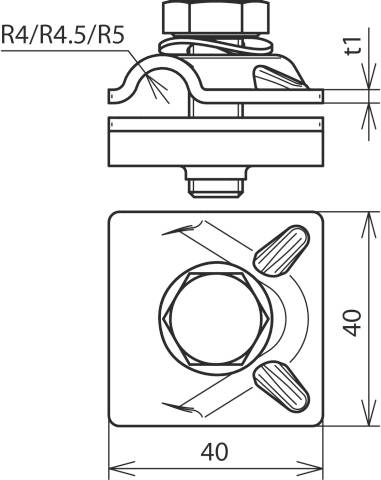

Technical drawing of a square component with rounded corners and threaded connection. Dimensions: 40x40, radii R4/R4.5/R5.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: MV connector

Manufacturer part #: 390550

Content: 1 pc(s)

: T-/cross-/parallel connector

: Hexagon screw

: Steel

: 100 kA

: 8.0-10.0 mm

: 8.0-10.0 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2750288 DEHN 390550 MVK 8.10 SKM10X30 FSC STTZN MV connector 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750288 DEHN 390550 MVK 8.10 SKM10X30 FSC STTZN MV connector 1 pc(s)

Information

Information 2750288 DEHN 390550 MVK 8.10 SKM10X30 FSC STTZN MV connector 1 pc(s)

Description

Multi-purpose connection terminal in accordance with DIN EN 62561-1, for universal use as cross, T and parallel terminals of round conductors. Two-piece design with hexagon screw, spring washer and thread in the lower section.
