Name: DEHN 392209 MVK 200 8.10 16 SKM10X40 FSC V2A Multi-purpose connector 1 pc(s)
Brand: DEHN
SKU: 2750453

Metal cable tensioner with two crossbars and a securing screw. Used for tensioning cables or wires.

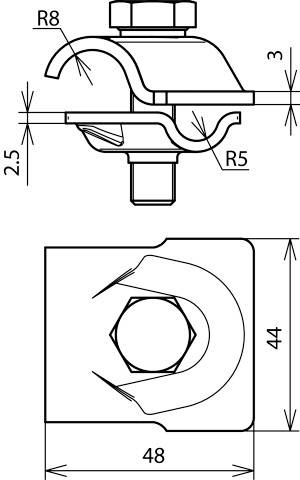

Technical drawing of a metal clip with dimensions: length 48 mm, width 44 mm, and various bend radii R8 and R5.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Multi-purpose connector

Manufacturer part #: 392209

Content: 1 pc(s)

: Untreated

: Multi purpose connecting clamp

: Hexagon screw

: Stainless steel V2A

: 200 kA

: 8.0-10.0 mm

: 16.0-16.0 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750453 DEHN 392209 MVK 200 8.10 16 SKM10X40 FSC V2A Multi-purpose connector 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750453 DEHN 392209 MVK 200 8.10 16 SKM10X40 FSC V2A Multi-purpose connector 1 pc(s)

Information

Information 2750453 DEHN 392209 MVK 200 8.10 16 SKM10X40 FSC V2A Multi-purpose connector 1 pc(s)

Description

MV-clamp for connecting an earth entry or catching rod (Ø 16 mm) with round wire (Ø 8-10 mm). Tested for lightning current carrying capacity up to 200 kA (10/350 µs) based on DIN EN 62561-1. Two-part design with hexagonal screw and thread in the lower section.
