Name: DEHN 478012 EFPM M10 12 V4A Earth anchor 1 pc(s)
Brand: DEHN
SKU: 2750746

Two parts of a tool: A yellow, oval disc and a round, flat, metallic plate with a hexagonal pin.

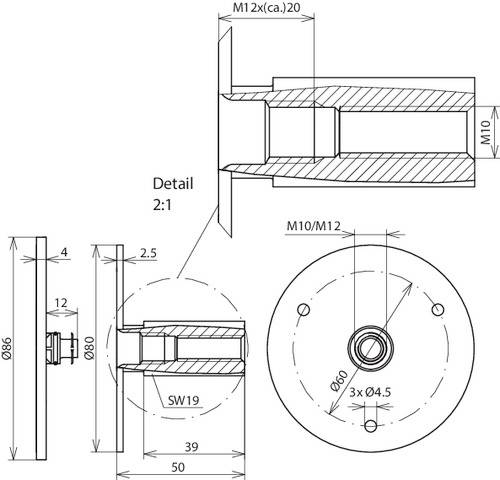

Technical drawing of a cylindrical component with dimensions: external diameter 86 mm, M12 bore, detailed view at scale 2:1.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Earth anchor

Manufacturer part #: 478012

Content: 1 pc(s)

: 50 mm

: Stainless steel V4A

: 10

: 80 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2750746 DEHN 478012 EFPM M10 12 V4A Earth anchor 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2750746 DEHN 478012 EFPM M10 12 V4A Earth anchor 1 pc(s)

Information

Information 2750746 DEHN 478012 EFPM M10 12 V4A Earth anchor 1 pc(s)

Description

Earthing fixed point according to DIN EN 62561-1, as corrosion-free connection of the conductor, for example B. To the reinforcement of buildings or to the earthing system, for the protection potential equalization and / or the functional potential compensation for installation in the formwork. Type M without connection axle and connection thread M10 / 12.

This text is machine translated.
